Triple.Push Button PIL O/N and Stop (ZB5AA72124)

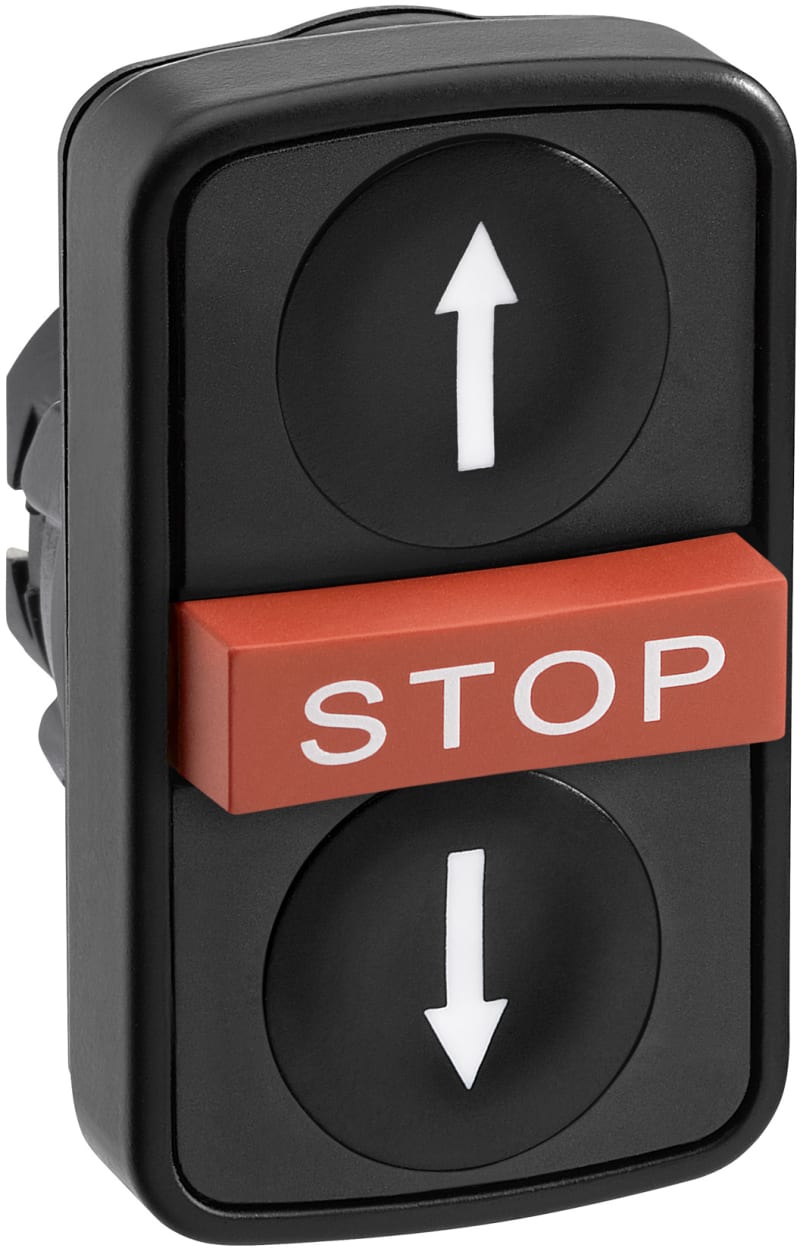

Schneider Electric ZB5AA72124 Triple push-button head in plastic with white arrows (up/down) on black and STOP on red in midt.

Manufacturer part number (MPN)

ZB5AA72124

EAN / GTIN

3389119043496

Sales unit

pcs

Package quantity

10 pcs

Range of product

Harmony XB5

Product or component type

Head for triple-headed push-button

Device short name

XB5

Bezel material

Dark grey plastic

Mounting diameter

22 mm

Head type

Standard

Shape of signaling unit head

Rectangular

Type of operator

spring return

Operator profile

2 flush - 1 central projecting STOP push-buttons

Operators description

Black ''up arrow'' - black ''down arrow'' - red ''STOP''

CAD overall width

30 mm

CAD overall height

50 mm

CAD overall depth

35 mm

Product weight

0.023 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Colour of marking

Black marking when white caps; White marking when green, red or black caps

Mechanical durability

1000000 cycles

Station name

XALD 1 cut-out

Electrical composition code

C1 for <9 contacts using single blocks in front mounting; C2 for <9 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; SF1 for <3 contacts using single blocks in front mounting; SR1 for <3 contacts using single blocks in rear mounting

Device presentation

Basic element

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Electrical shock protection class

Class II conforming to IEC 61140

IP degree of protection

IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K

Enclosure Type

UL type 4X/13

IK degree of protection

IK05 conforming to IEC 50102

Standards

JIS C8201-5-1; CSA C22.2 No 14; IEC 60947-5-1; UL 508; IEC 60947-1; IEC 60947-5-4; JIS C8201-1

Product certifications

CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Suitable for lighting

No

Number of command positions

3

Spring-return

Yes

Labelled

Yes

Type of button

High

Colour front ring

Black

With protective cover

No

Material front ring

Plastic

With front ring

Yes

Construction type lens

Rectangular

Switching function latching

No

HS Code

8538.90
