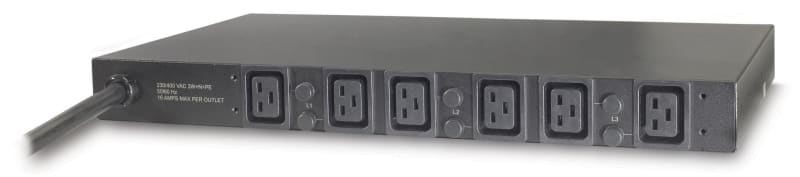

Schneider Electric Spare parts / accessories AP7526
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric AP7526 Spare parts / accessories.
Technical Specifications
- Manufacturer part number (MPN)
- AP7526
- EAN / GTIN
- 0731304232667
- Sales unit
- pcs
- Colour
- Black
- Product or component type
- PDU
- PDU type
- Basic
- Cord length
- 2.4 m
- Number of cables
- 1
- Provided equipment
- Installation guide
- Input Voltage
- 400 V 3 phases
- Height
- 44 mm
- Width
- 437 mm
- Output Voltage
- 230 V
- Depth
- 254 mm
- Product weight
- 4.84 kg
- Mounting location
- Front; Rear
- Mounting preference
- No preference
- Input Plug Type
- IEC 60309 32 A 3P + N + PE
- mounting mode
- Rack-mounted
- Rack units
- 1U
- Mounting position
- Horizontal
- permissible voltage
- 200…250 V
- Max line current
- 32 A
- Input current limits
- 32 A
- Load capacity
- 22000 VA
- Network frequency
- 47...63 Hz
- Outlet type and quantity
- 6 IEC 60320 C19
- Product certifications
- CE; GOST; VDE
- Ambient air temperature for operation
- -5…45 °C
- Relative humidity
- 5…95 %
- Operating altitude
- 0...10000 ft
- Ambient air temperature for storage
- -25…65 °C
- Storage Relative Humidity
- 5…95 %
- Storage altitude
- 0…15240 m
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 24.1 cm
- Package 1 Width
- 55.9 cm
- Package 1 Length
- 50.2 cm
- Package 1 Weight
- 6.965 kg
- Country of origin
- IN
- Warranty (in months)
- 24
- Nominal current
- 32 A
- Mounting direction
- Horizontal
- Electrical connection
- Connection cable with plug
- Cable length
- 2.4 m
- Number of C19 socket outlets
- 6
- Number of height units
- 1
- Length
- 254 mm
- Supply voltage
- 400 V
- Overvoltage category
- 1
- Interface ethernet
- Yes
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 0731304232667
- SAP 1000455542
- Code 8795215
