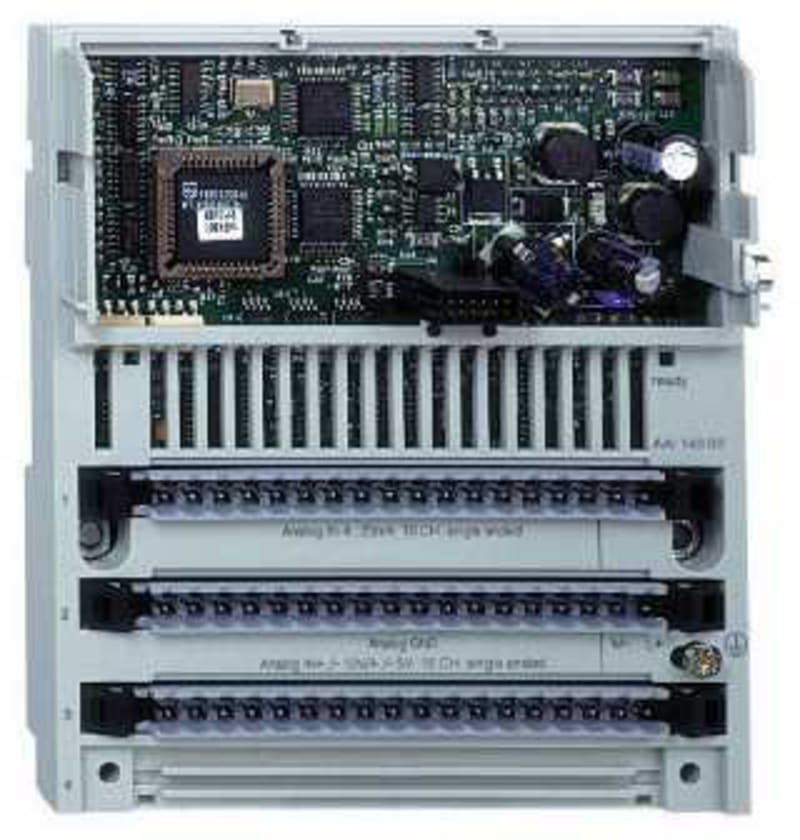

Schneider Electric distributed analog input Modicon Momentum - 16 Input 170AAI14000

Schneider Electric 170AAI14000 16 In Ana, +/- 5V,10V, 4-20MA.

Manufacturer part number (MPN)

170AAI14000

EAN / GTIN

3595861147690

Sales unit

pcs

Package quantity

10 pcs

Output signal

4–20 mA

Range of product

Modicon Momentum automation platform

Product or component type

Analogue input base

Analogue input number

16

Type of filter

Low pass input filter 10 kHz

Data format

Full 16 bits signed

Absolute accuracy error

+/- 0.15 % of full scale 25 °C +/- 10 V; +/- 0.15 % of full scale 25 °C +/- 5 V; +/- 0.25 % full scale 25 °C 4...20 mA; +/- 0.25 % full scale 60 °C +/- 10 V; +/- 0.25 % full scale 60 °C +/- 5 V; +/- 0.45 % full scale 60 °C 4...20 mA

Full scale

10 V +/- 10 V; 16 mA 4...20 mA; 5 V +/- 5 V

Update time

25 ms

Permissible common mode voltage

100 V 47...63 Hz DC between channels to ground; 250 V 47...63 Hz AC between channels to ground

External power requirement

+/- 30 V DC

Reverse polarity protection

Internal

Analogue input type

Single ended 4...20 mA; Single ended +/- 10 V; Single ended +/- 5 V

Analogue input resolution

12 bits 4...20 mA; 12 bits + sign +/- 10 V; 12 bits + sign +/- 5 V

Input impedance

2200 kOhm

Temperature drift

30 %oFS/°C +/- 10 V; 60 %oFS/°C 4...20 mA

Typical current consumption

305 mA at 24 V DC

Power dissipation in W

5.55 W

Isolation between channels and ground

1780 V AC

Electrical connection

2 connectors for removable terminal blocks

Protection type

Internal 2 A slow-blow

Associated fuse rating

500 mA, fast blow

Local signalling

16 LEDs for channel status

Height

125 mm

Width

141.5 mm

Depth

47.5 mm

Product weight

0.215 kg

Protective treatment

TC

Marking

CE

Product certifications

UL; FM Class 1 Division 2; CSA

Ambient air temperature for operation

0…60 °C

Ambient air temperature for storage

-40…85 °C

Relative humidity

0…95 % without condensation

Operating altitude

<= 5000 m

Number of Units in Package 1

1

Number of Units in Package 2

10

Country of origin

ID

Warranty (in months)

18

Power consumption

1.1 W

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

24 V

Voltage type (supply voltage)

DC

Input, current

Yes

Input, voltage

Yes

Input, resistor

No

Input, resistance thermometer

No

Input, thermocouple

No

Input signal, configurable

Yes

Resolution of the analogue inputs

12 Bit

Output, current

No

Output, voltage

No

Output signal configurable

No

Number of analogue inputs

16

Analogue inputs configurable

Yes

Analogue outputs configurable

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

Degree of protection (IP)

IP20

Type of electric connection

Screw connection

Fieldbus connection over separate bus coupler possible

Yes

Suitable for rail mounting

Yes

Wall mounting/direct mounting

Yes

Front built-in possible

Yes

Rack-assembly possible

Yes

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

HS Code

8538.90
