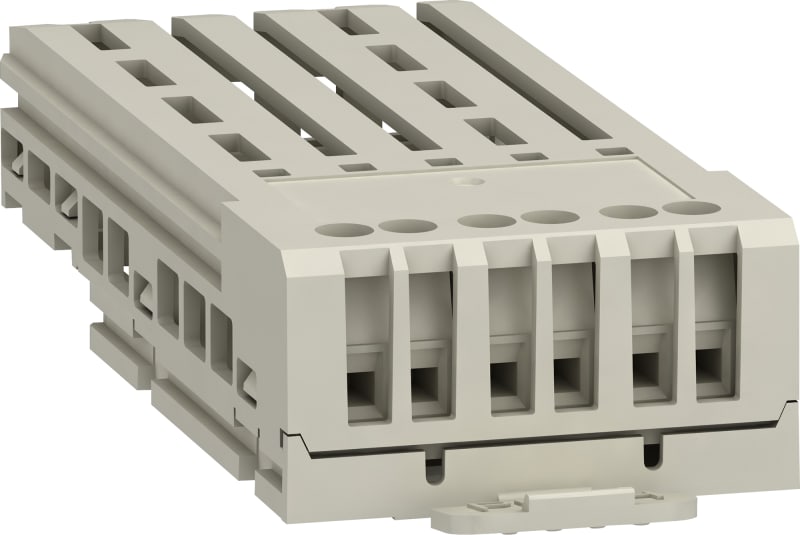

Schneider Electric extended relay module - 3 relays VW3A3204

Schneider Electric VW3A3204 Ekspansjonsmodul - Relay, 3 pcs relay.

Manufacturer part number (MPN)

VW3A3204 EAN / GTIN: 3606480702532 HS code: 8536.90 Sales unit: pcs Package quantity: 14 pcs Product or component type: Additional output module Range compatibility: Altivar Machine ATV340; Easy Altivar 610; Altivar Process ATV900; Altivar Process ATV600 Input/output type: 3 relay output Discrete output number: 3 Discrete output type: (R4, R5, R6) relay normally open, sampling time: 1 ms Electrical durability: 100000 cycles minimum switching current: 5 mA at 24 V DC Maximum switching current: 2 A at 250 V AC on inductive load, cos phi = 0.4 and L/R = 5 ms; 2 A at 30 V DC on inductive load, cos phi = 0.4 and L/R = 5 ms; 5 A at 250 V AC on resistive load, cos phi = 1 and L/R = 5 ms; 5 A at 30 V DC on resistive load, cos phi = 1 and L/R = 5 ms Electrical connection: Screw terminal block, 1.5 mm² / 16 AWG, 0.5 N.m Product weight: 0.4 kg Number of Units in Package 1: 1 Number of Units in Package 2: 16 Country of origin: ID Warranty (in months): 18

HS Code

8536.90

• EAN 3606480702532
• SAP 1000659359
• Code 8234471
