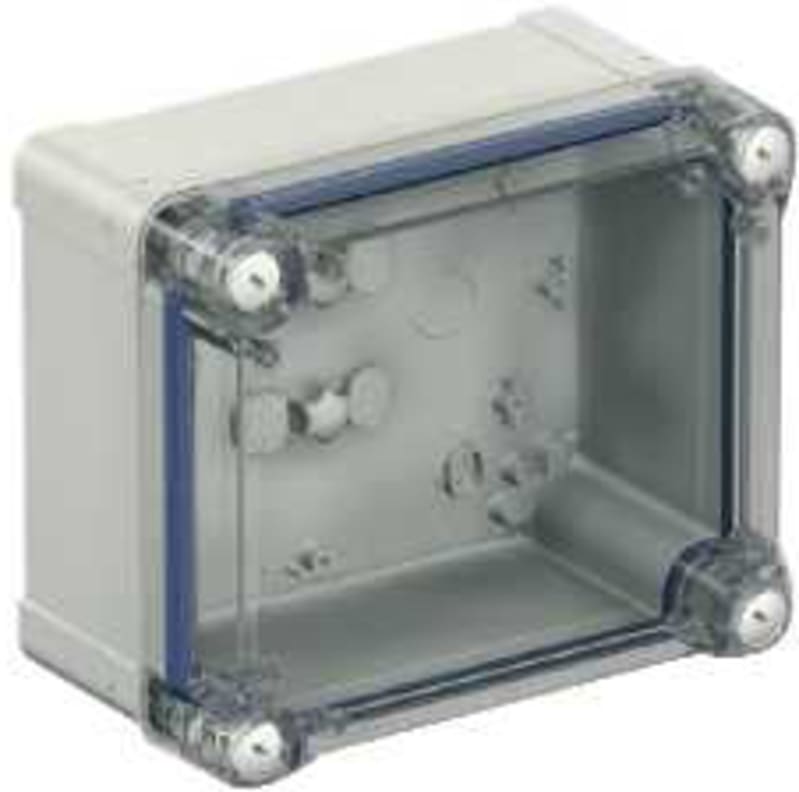

Schneider Electric ABS industrial box, PanelSeT TBS, 241X168X291MM, int. 225X160X275MM, high transparent cover, IP66, IK07, RAL 7035 NSYTBS292416HT
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYTBS292416HT 85038 Abs Box 291X241X168 K.
Technical Specifications
- Manufacturer part number (MPN)
- NSYTBS292416HT
- EAN / GTIN
- 3606480165559
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Dimensions
- 291×241×168
- Range
- PanelSeT
- Device application
- Multi-purpose
- Category
- Industrial box
- Height
- 291 mm
- Width
- 241 mm
- Depth
- 168 mm
- Internal height
- 275 mm
- Internal width
- 225 mm
- Internal depth
- 160 mm
- Enclosure mounting
- Wall mounted
- Device composition
- 1 body; 1 cover; 4 cover screw
- Body type
- One piece moulded
- Type of front cover
- High transparent cover
- Cover fixing
- Plastic screws
- Lock type
- Captive screw flat outside sealed area
- Removable parts
- Cover by captive screws
- Material
- ABS with 45% of post-industrial recycled content
- Colour
- Grey (RAL 7035); Transparent
- Standards
- IEC 62208
- Product certifications
- TÜV
- Electrical insulation class
- Class II
- IP degree of protection
- IP66 conforming to NEMA 4.4X
- IK degree of protection
- IK07 conforming to IEC 62262
- Glow wire resistance
- 650 °C conforming to IEC 60695-2-11
- Ambient air temperature for storage
- -15…40 °C
- Operating temperature
- -25…60 °C
- Product weight
- 1.28 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 4
- Number of Units in Package 3
- 48
- Warranty (in months)
- 18
- RAL-number
- 7035
- With mounting plate
- No
- Material quality
- Acrylonitrile butadiene styrene (ABS)
- Impact strength
- IK07
- Degree of protection (IP)
- IP66
- Country of origin
- Hungary
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480165559
- SAP 1000090258
- Code 8582836
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric ACTI9 - MINt - silent electronic timer - adjustable from 0.5 to 20 minutes CCT15234
Schneider Electric
Schneider Electric TransferPacT Active Automatic, 630A, 400V, 3P, LCD, frame 630A TA63D3L6304TPE
Schneider Electric
Universal Charger FOR Fjernkontr
ZARC01
Schneider Electric

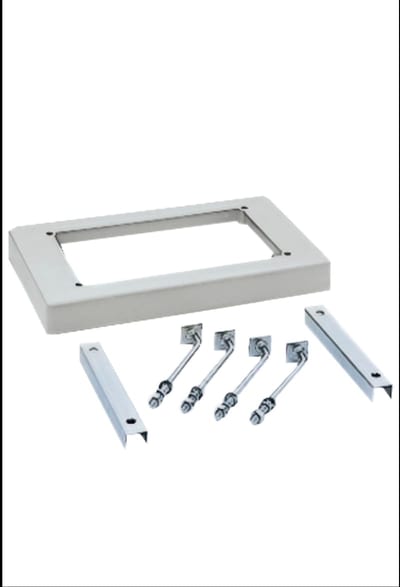

500X420X60 Sok 7035 for PLA(T)
NSYZNPLA54G
Schneider Electric

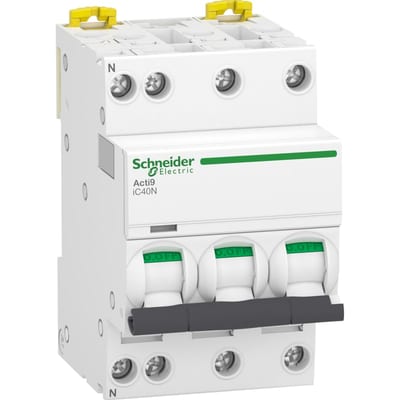

Schneider Electric Miniature circuit breaker (MCB), ACTI9 IC40N, 3P+N, 6A, B curve, 6000A (IEC/EN 60898-1), 10KA (IEC/EN 60947-2) A9P44706
Schneider Electric
WALL-Mount Cabinet WITH WINDOW. 10X8X4
NSYS3D10840T
Schneider Electric

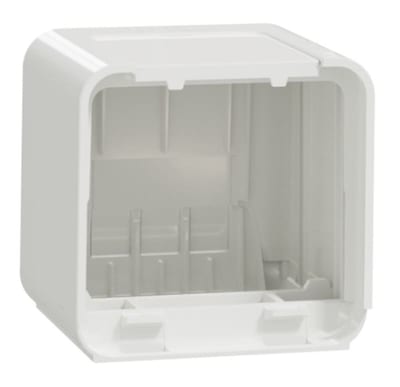

Schneider Electric INS44282 End Piece for Surface-Mount Desk Unit, White
