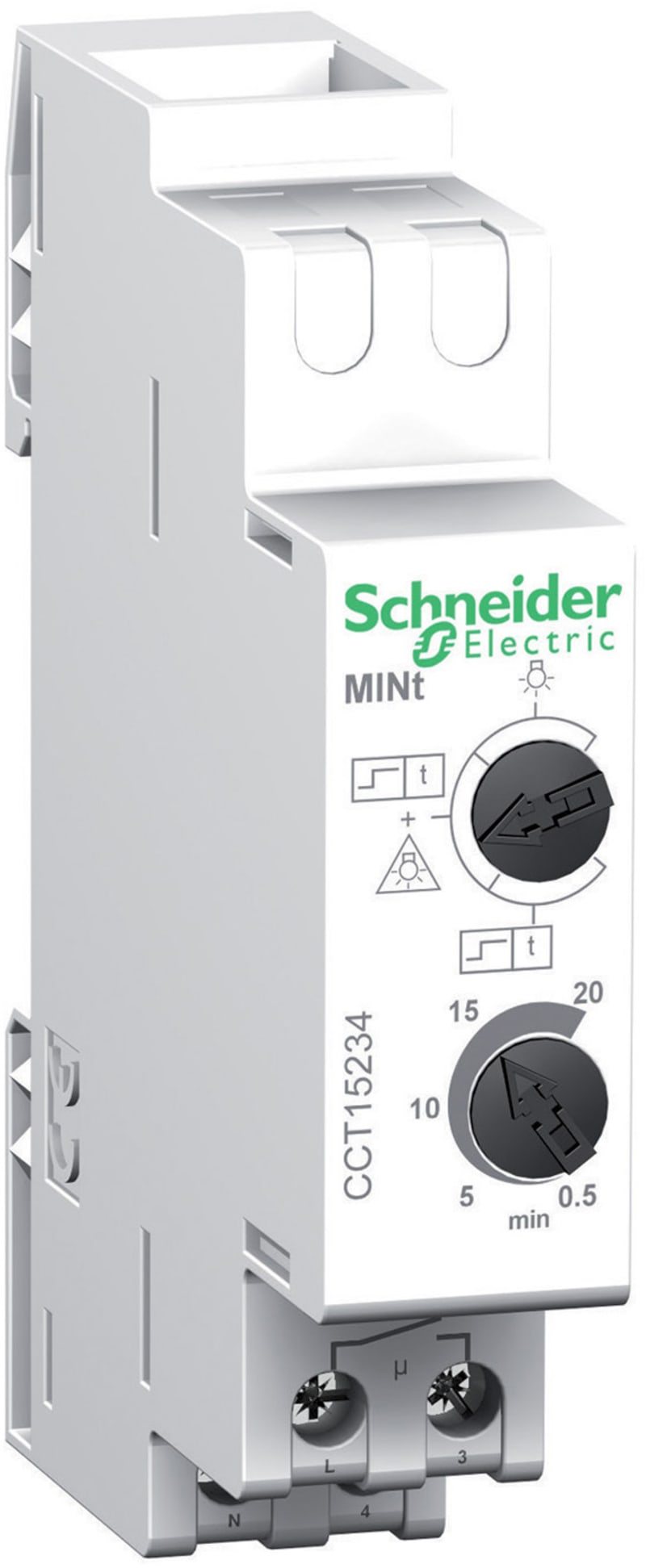

Schneider Electric ACTI9 - MINt - silent electronic timer - adjustable from 0.5 to 20 minutes CCT15234
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric CCT15234 MINP TIME RELAY 0,5-20MIN 230VAC.
Technical Specifications
- Manufacturer part number (MPN)
- CCT15234
- EAN / GTIN
- 3303431062645
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 130 pcs
- range of product
- Acti9
- Product name
- Acti9 MIN
- Device short name
- MINt
- Product or component type
- Silent electronic timer
- Product compatibility
- Mechanical compatibility with electrical comb busbars
- Function available
- Impulse relay; Switch-off warning
- Colour tint
- White (RAL 9003)
- Device application
- Building
- Load type
- Fluocompact lampconventional ballast 1500 VA; Fluorescent lamp 22 x electronic ballast 23 W; 230 V AC halogen lamp 3600 W; 230 V AC incandescent lamp 3600 W; Fluorescent lamp 24 x electronic ballast 15 W; Fluorescent lamp 27 x electronic ballast 11 W; Fluorescent lamp 34 x electronic ballast 7 W; Dual mounted fluorescent tubeconventional ballast 3600 VA; Fluorescent tubeelectronic ballast 1000 VA; Non-corrected fluorescent tubeconventional ballast 3600 VA; Parallel-corrected fluorescent tubeconventional ballast 1200 VA; Serial-corrected fluorescent tubeconventional ballast 3600 VA
- Power consumption in VA
- 6 VA
- Maximum switching current
- 16 A - 230 V AC pf = 1
- [Ue] rated operational voltage
- 230 V AC +10 % -15 % at 50/60 Hz
- Time delay
- Adjustable from 0.5 to 20 minutes
- Mounting support
- DIN rail
- 9 mm pitches
- 2
- Connections - terminals
- Screw terminals - <= 6 mm²
- Electrical insulation class
- Class II
- Width
- 18 mm
- Height
- 89 mm
- Depth
- 66 mm
- Product weight
- 76 g
- Ambient air temperature for operation
- -25…50 °C
- IP degree of protection
- IP20 B
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 130
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3303431062645
- SAP 1000284711
- Code 830966
