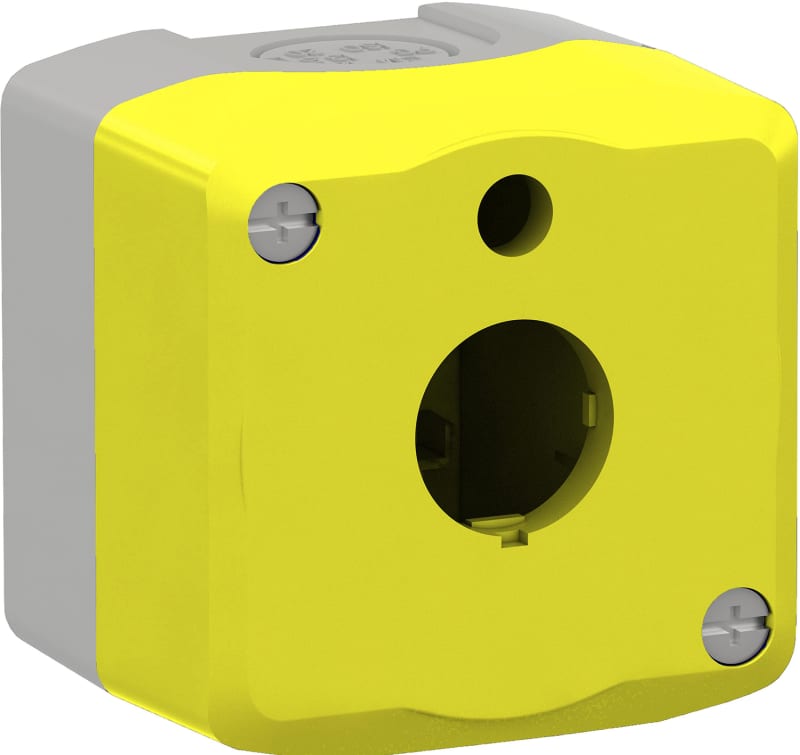

Nrdstoppboks empty 1 hole for LED

Schneider Electric XALKW01 Emergency stop box empty with 1 hole for LED.

Manufacturer part number (MPN)

XALKW01

EAN / GTIN

3606489745592

Sales unit

pcs

Package quantity

240 pcs

Range of product

Harmony XALK

Product or component type

Empty control station

Device short name

XALK

Product destination

For XB5 Ø 22 mm control and signalling units

Control station application

Emergency stop function; Emergency switching off function

Number of cut-out

1 cut-out

Colour of base of enclosure

Light grey (RAL 7035)

Colour of cover

Yellow (RAL 1021)

Material

Polycarbonate

Cable entry

1 knock-out for cable entry, clamping capacity: 14 mm; 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm

Sale per indivisible quantity

1

IP degree of protection

IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K conforming to ISO 20653; Type 13 conforming to UL 50E; Type 12 conforming to UL 50E; Type 4 conforming to UL 50E; Type 4X conforming to UL 50E

Assembly style

For customer assembly

Number of horizontal rows

1

Number of vertical rows

1

CAD overall width

68 mm

CAD overall height

68 mm

CAD overall depth

53 mm

Product weight

0.116 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Mounting of block

Front mounting; Rear mounting

electrical composition code

SR1; SF1; MR1; MF1

Main group

1 cut-out

Group of product

Standard yellow

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536

IK degree of protection

IK05 conforming to IEC 62262

Standards

IEC 60947-5-5; IEC 60947-5-4; JIS C8201-5-1; IEC 60947-1; IEC 60947-5-1; JIS C8201-1

Number of Units in Package 1

1

Number of Units in Package 2

60

Country of origin

CZ

Warranty (in months)

18

Width

68 mm

Height

68 mm

Depth

53 mm

Number of command positions

1

Colour housing cover

Yellow

Housing material

Plastic

Construction type housing

Surface mounted housing

Degree of protection (IP)

IP66

Housing material quality

Acrylonitrile butadiene styrene (ABS)

HS Code

8538.10

• EAN 3606489745592
• SAP 1200334134
• Code 82320602
