DOUBLE PUSH BUTTON S+r KN. White In+0 G+ (ZB5AL7341)

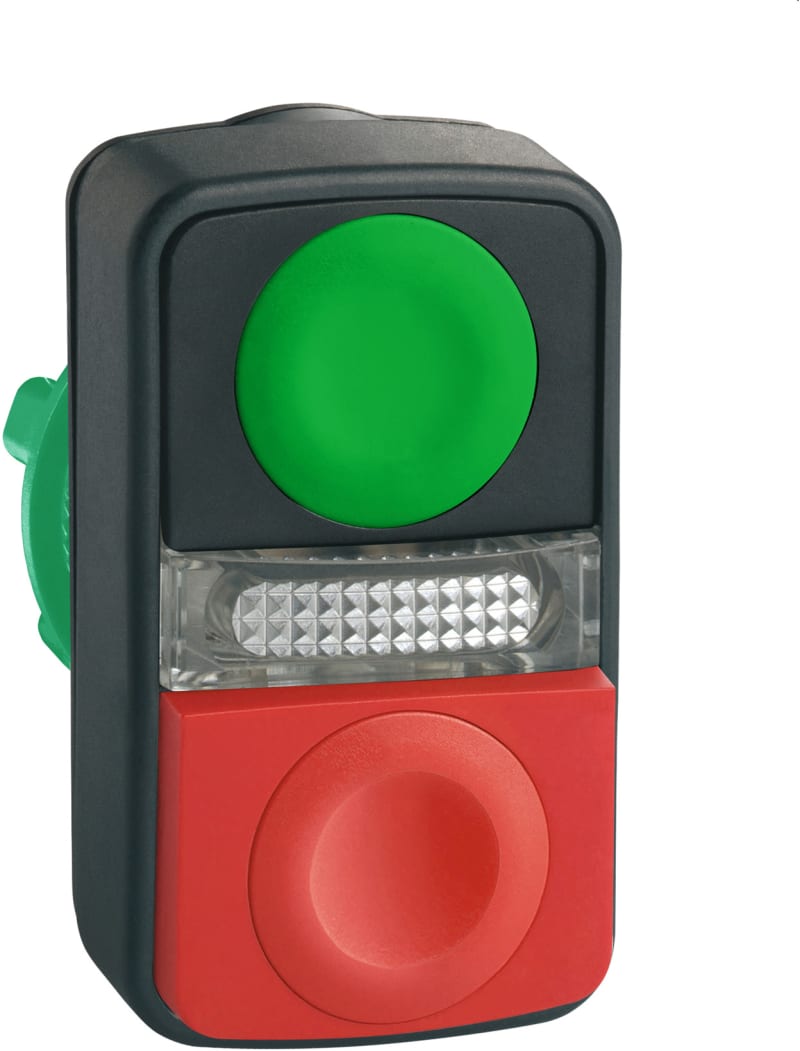

Schneider Electric ZB5AL7341 Double push-button head in plastic with white "In" on plan green and white "O" on raised red push surface.

Manufacturer part number (MPN)

ZB5AL7341

EAN / GTIN

3389119043311

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB5

Product or component type

Head for double-headed push-button

Device short name

ZB5

Bezel material

Dark grey plastic

Mounting diameter

22 mm

Head type

Standard

Sale per indivisible quantity

1

Shape of signaling unit head

Rectangular

Type of operator

spring return

Operator profile

1 flush - 1 projecting push-buttons

Operators description

Green ''I'' - red ''O''

CAD overall width

30 mm

CAD overall height

50 mm

CAD overall depth

35 mm

Product weight

0.023 kg

Colour of marking

White marking when green, red or black caps; Black marking when white caps

Mechanical durability

1000000 cycles

Station name

XALD 1 cut-out

Electrical composition code

C3 for <6 contacts using single blocks in front mounting; C4 for <6 contacts using single and double blocks in front mounting; C14 for <2 contacts using single blocks in front mounting; SF2 for <2 contacts using single blocks in front mounting; SR2 for <2 contacts using single blocks in rear mounting

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Electrical shock protection class

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP69K conforming to IEC 60529

Enclosure Type

UL type 4X/13

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

IK degree of protection

IK03 conforming to IEC 50102

Standards

IEC 60947-5-4; IEC 60947-1; CSA C22.2 No 14; IEC 60947-5-1; JIS C8201-5-1; UL 508; JIS C8201-1

Product certifications

CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

200

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Red/green

Suitable for lighting

No

Number of command positions

2

Spring-return

Yes

Labelled

Yes

Type of button

High

Colour front ring

Black

Degree of protection (IP), front side

IP66

With protective cover

No

Material front ring

Plastic

With front ring

Yes

Construction type lens

Rectangular

Switching function latching

No

Country of origin

France

HS Code

8538.90
