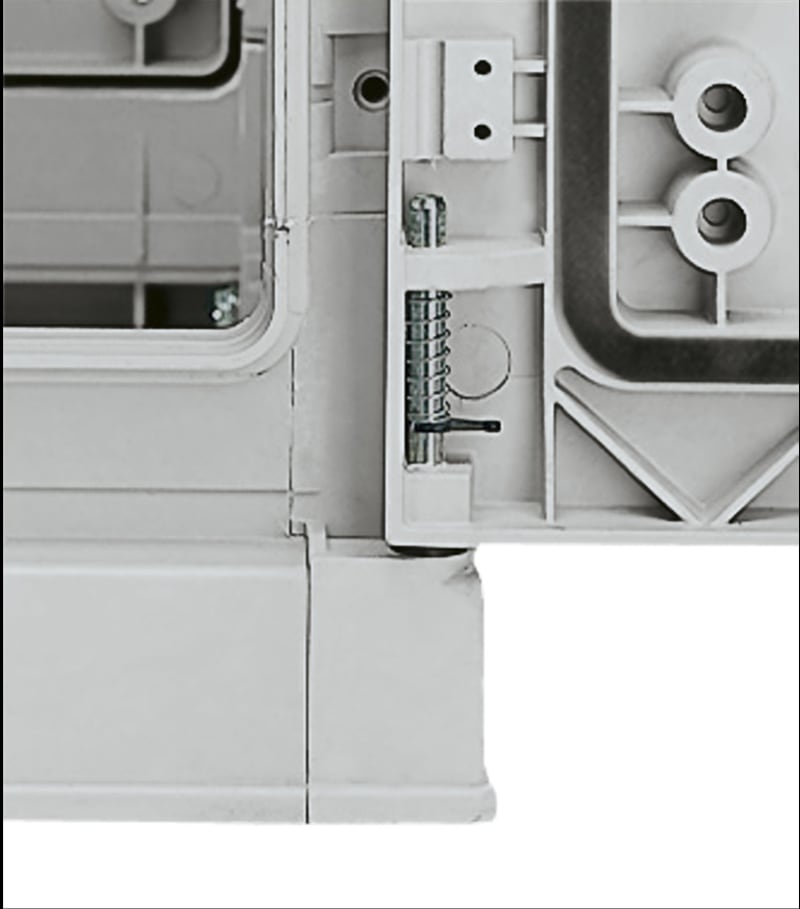

Schneider Electric Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 750X1000X420 IP44 NSYPLAZT7104G
Pricing
Request a quote
We reply within 24 hours
Product Description
THLSA REGNT TO.SOK 7035 750X1000X420.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPLAZT7104G
- EAN / GTIN
- 3606480776281
- Sales unit
- pcs
- IP rating
- IP44
- Dimensions
- 750×1000×420
- Range
- PanelSeT
- Product name
- PanelSeT PLA
- Enclosure type
- Multi-purpose
- Product or component type
- Suitable enclosure
- Version
- PLAZT
- Nominal height
- 750 mm
- Nominal width
- 1000 mm
- Nominal depth
- 420 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 1 top part; 1 bottom part; 2 side part; 2 door; 2 rear panel; 1 canopy; 1 plinth
- Body type
- Open top and bottom part assembled with side parts
- Door type
- Plain front
- Number of doors
- 2 door(s)
- Door opening side
- Right and left (180 °)
- Lock type
- 2 points handle lock, 5 mm double-bar
- Accessibility for operation
- Rear; Top; Front; Bottom
- Removable parts
- Door by hinges; Rear panel by fixing element; Canopy by fixing element
- Material
- Polyester reinforced with fibreglass
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208
- Product certifications
- Veritas
- Electrical insulation class
- Class II
- IP degree of protection
- IP44 conforming to IEC 60529 (with plinth type open bottom part and ventilated canopy)
- IK degree of protection
- IK10 conforming to IEC 62262 (plain door)
- Fire resistance
- 960 °C conforming to IEC 62208
- Ambient air temperature for storage
- -35…90 °C
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 1000 mm
- Height
- 750 mm
- Depth
- 420 mm
- RAL-number
- 7035
- Number of locks
- 1
- Material quality
- Polyester
- Impact strength
- IK10
- Degree of protection (IP)
- IP44
- Suitable for outdoor set-up
- Yes
- Connectable
- No
- Wall fastening possible
- No
- Surface finishing
- Untreated
- Max. permitted load of the enclosure according to IEC 62208
- 961 N
- Max. permitted load of the door(s) according to IEC 62208
- 216 N
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480776281
- SAP 1000752598
- Code 8488758
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric standard motor mechanism module MT400/630, ComPact NSX400/630, 48/60 VAC 50/60 Hz LV432639
Schneider Electric
Schneider Electric variable speed drive, ATV930, 15kW, 200/240V, with braking unit, IP21 ATV930D15M3
Schneider Electric
Gland Plate B=200 (NSYRP2)
Schneider Electric
F2-HOR.-FRONT/rear display 2500A W400 D600
LVS04984
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX400HB2, 100KA/690VAC, 3 poles, MicroLogic 2.3M trip unit 320A C40W32M320
Schneider Electric
Schneider Electric TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 50 A - 24 V DC coil LC2D50ABD
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 9A, 100V AC 50/60Hz coil, snap-in terminals LC1D09AK7
Schneider Electric

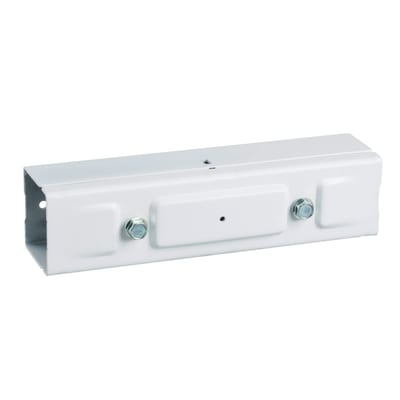

Extra joint 3L+3L+N W
