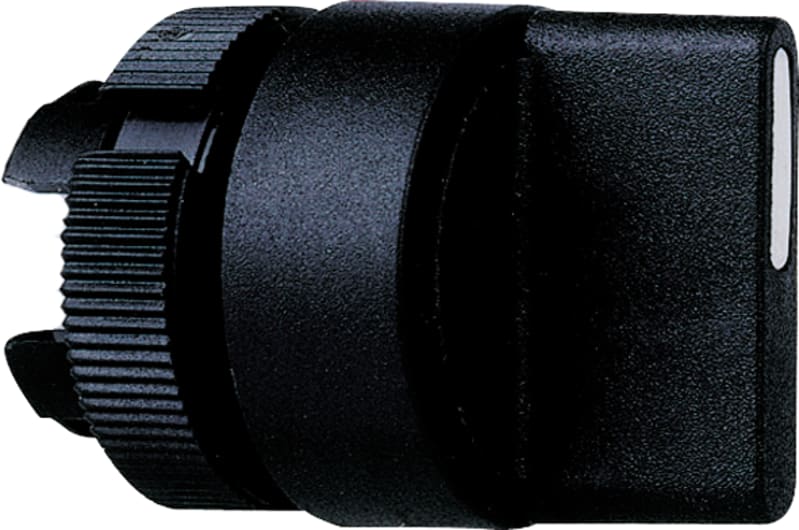

Selector Switch Head, SHORT, SORTZA2BD

Schneider Electric ZA2BD5 Selector Switch Head Short Black.

Manufacturer part number (MPN)

ZA2BD5

EAN / GTIN

3389110648560

Sales unit

pcs

Package quantity

10 pcs

Range of product

Harmony XAC

Product or component type

Selector switch

Component name

ZA2

Product compatibility

XACA

Product weight

0.018 kg

Cap/operator or lens colour

Black

Marking

Unmarked

Sale per indivisible quantity

1

Standards

IEC 60204-32; UL 508; IEC 60947-5-1; CSA C22.2 No 14

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

100 gn conforming to IEC 60068-2-27

Overvoltage category

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

100

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Number of switch positions

3

Suitable for lighting

No

Spring-return

No

Colour front ring

Black

Degree of protection (IP), front side

IP66

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Type of control element

Short rotary handle

Colour control element

Black

Switching function latching

No

HS Code

8538.90

• EAN 3389110648560
• SAP 1000013930
• Code 8106032
