Mounting plate 1000X1000 (NSYPMM1010)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYPMM1010 Mounting plate 1000X1000.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPMM1010
- EAN / GTIN
- 3606480193859
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Dimensions
- 1000×1000 mm
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Mounting plate
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- -
- Mounting location
- Step slide; Back inserts
- Mounting plate description
- Plain
- Range compatibility
- PanelSeT PLA PLA
- Device composition
- 1 mounting plate
- Material
- Galvanised steel
- Fixing mode
- By screws - screw type M8 - on back inserts location
- Permanent permissible load
- 150 kg
- Height
- Nominal: 1000 mm; Real: 890 mm
- Width
- Nominal: 1000 mm; Real: 875 mm
- Depth
- Real : 125 mm
- thickness
- 2.5 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 30
- Country of origin
- ES
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Powder coating
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480193859
- SAP 1000318044
- Code 8343188
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric auxiliary contacts LUF - 2NC LUFN02
Schneider Electric
Schneider Electric Disconnectable front connection adaptor, MasterPact MTZ2 fixed, 3P, 1600A, spare part LV848421SP
Schneider Electric
Schneider Electric Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 750X1000X420 IP44 NSYPLAZT7104G
Schneider Electric
Schneider Electric standard motor mechanism module MT400/630, ComPact NSX400/630, 48/60 VAC 50/60 Hz LV432639
Schneider Electric
Schneider Electric variable speed drive, ATV930, 15kW, 200/240V, with braking unit, IP21 ATV930D15M3
Schneider Electric

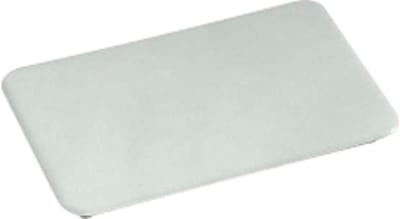

Gland Plate B=200 (NSYRP2)
Schneider Electric

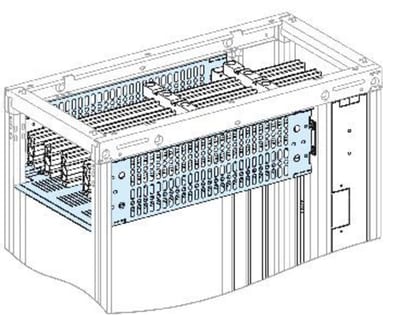

F2-HOR.-FRONT/rear display 2500A W400 D600
LVS04984
Schneider Electric

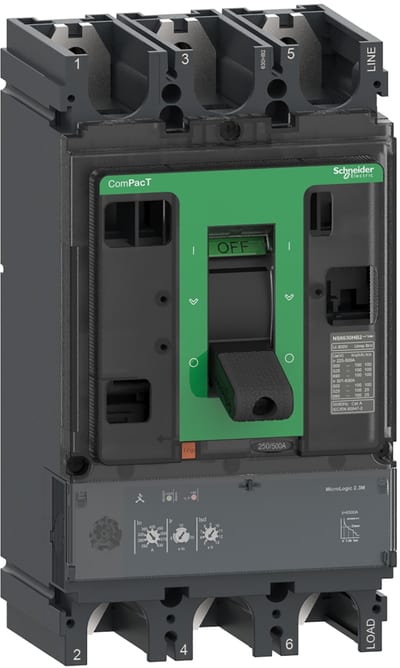

Schneider Electric Circuit breaker, ComPacT NSX400HB2, 100KA/690VAC, 3 poles, MicroLogic 2.3M trip unit 320A C40W32M320
