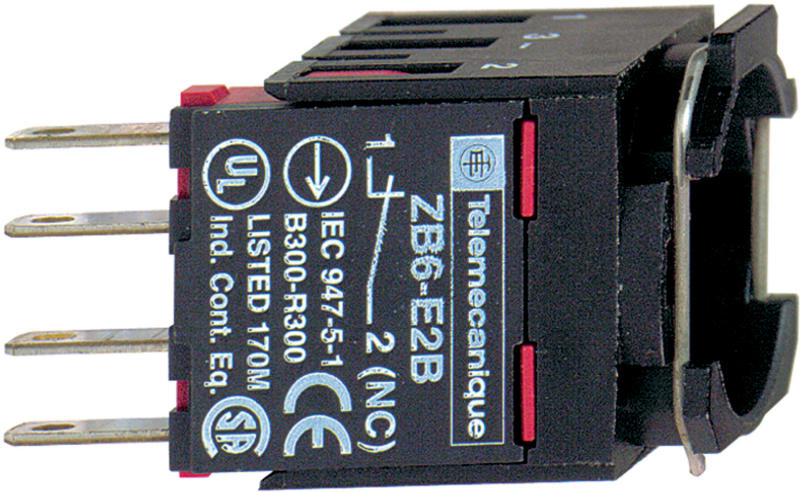

Schneider Electric single contact block with body/fixing collar 1NO faston connector ZB6Z1B

Schneider Electric ZB6Z1B Body with 1NO Silver Faston.

Manufacturer part number (MPN)

ZB6Z1B

EAN / GTIN

3389110775334

Sales unit

pcs

Package quantity

100 pcs

Contact configuration

1 NO

Range of product

Harmony XB6

Product or component type

Complete body for push-buttons or selector switches

Device short name

ZB6

Fixing collar material

Plastic

Sale per indivisible quantity

1

Contacts type and composition

1 NO

Contact operation

Slow-break

Connections - terminals

Faston connector; Faston connector, connection size: 2.8 x 0.5 mm

[Us] rated supply voltage

<= 250 V

CAD overall width

18 mm

CAD overall height

18 mm

CAD overall depth

40 mm

Terminals description ISO n°1

(13-14)NO

Product weight

0.004 kg

Contacts usage

Standard

Positive opening

With conforming to IEC 60947-5-1 appendix K

Operating travel

2 mm (NO changing electrical state); 4.3 mm (total travel)

Operating force

1.6 N NO changing electrical state

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

6 A cartridge fuse type gG conforming to IEC 60947-5-1

[Ie] rated operational current

3 A at 120 V, AC-15, B300; 1.5 A at 240 V, AC-15, B300; 0.1 A at 250 V, DC-13, R300; 0.22 A at 125 V, DC-13, R300

Electrical durability

1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Electrical reliability

Λ = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to IEC 60947-5-4

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Electrical shock protection class

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

Standards

JIS C 852; IEC 60947-5-5; IEC 60947-1; CSA C22.2 No 14; IEC 60947-5-1; UL 508; JIS C 4520

Product certifications

GOST; UL; CCC; CSA

Vibration resistance

+/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6; 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

100

Country of origin

FR

Warranty (in months)

18

HS Code

8536.50
