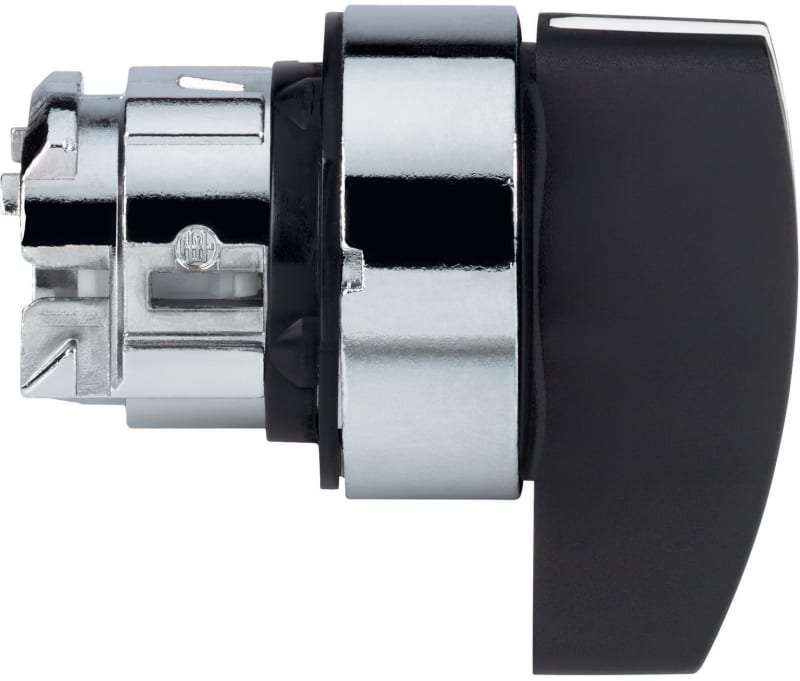

Selector Switch Head L.3 Fixed positions (ZB4BJ3)

Schneider Electric ZB4BJ3 Selector Switch Head 3 Fixed positions

Manufacturer part number (MPN)

ZB4BJ3

EAN / GTIN

3389110889062

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB4

Product or component type

Head for selector switch

Device short name

ZB4

Bezel material

Chromium plated metal

Mounting diameter

22 mm

Head type

Standard

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

stay put

Operator profile

Black long handle

Operator additional information

Non padlockable

Operator position information

3 positions +/- 45°

CAD overall width

29 mm

CAD overall height

38 mm

CAD overall depth

44 mm

Product weight

0.04 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Mechanical durability

1000000 cycles

Electrical composition code

C3 for <6 contacts using single blocks in front mounting; C4 for <6 contacts using single and double blocks in front mounting; C5 for <5 contacts using single blocks in front mounting; C6 for <5 contacts using single and double blocks in front mounting; C7 for <4 contacts using single blocks in front mounting; C8 for <4 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class I conforming to IEC 60536

IP degree of protection

IP67 conforming to IEC 60529; IP69; IP69K

Enclosure Type

UL type 4X/13

IK degree of protection

IK06 conforming to IEC 50102

Standards

IEC 60947-5-1; UL 508; IEC 60947-5-5; CSA C22.2 No 14; IEC 60947-1; IEC 60947-5-4; JIS C8201-5-1; JIS C8201-1

Product certifications

CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.600 cm

Package 1 Width

5.400 cm

Package 1 Length

5.500 cm

Package 1 Weight

45.400 g

Unit Type of Package 2

BB1

Number of Units in Package 2

5

Package 2 Height

5.000 cm

Package 2 Width

3.400 cm

Package 2 Length

26.500 cm

Package 2 Weight

227.000 g

Unit Type of Package 3

S03

Number of Units in Package 3

200

Package 3 Height

30.000 cm

Package 3 Width

30.000 cm

Package 3 Length

40.000 cm

Package 3 Weight

9.624 kg

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Number of switch positions

3

Suitable for lighting

No

Spring-return

No

Colour front ring

Chrome

Degree of protection (IP), front side

IP67/IP69K

Material front ring

Metal

With front ring

Yes

Construction type lens

Round

Type of control element

Short rotary handle

Colour control element

Black

Switching function latching

Yes

HS Code

8538.90
