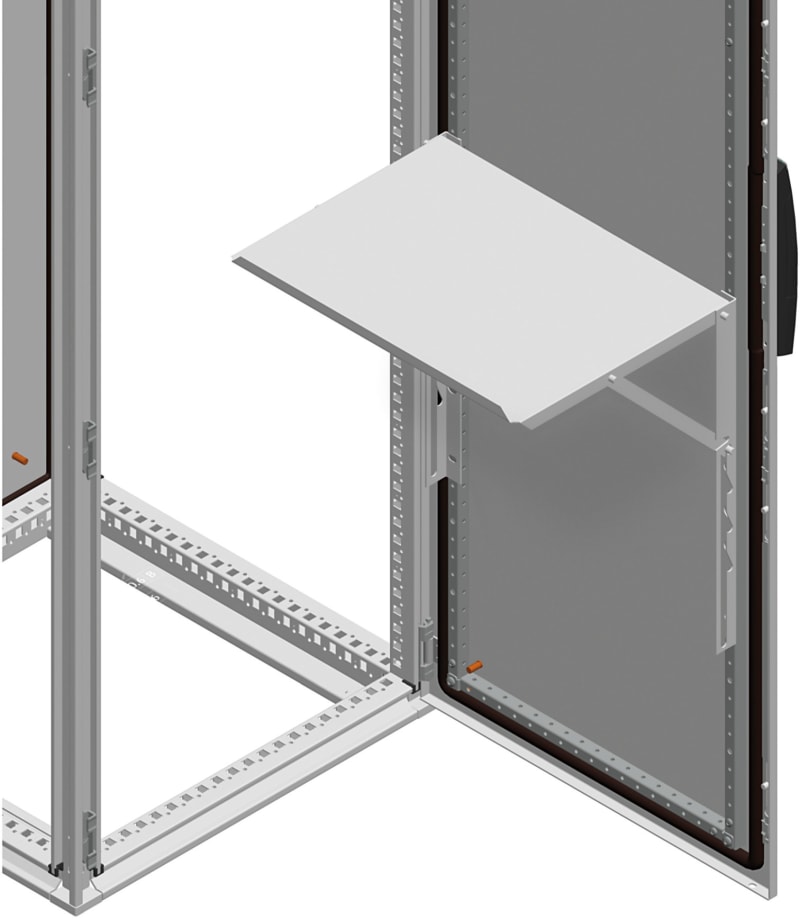

Schneider Electric Folding support tray - 500 mm enclosure - 30 kg load NSYSDT5
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSDT5 Bracket door 500.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSDT5
- EAN / GTIN
- 3606485131498
- Sales unit
- pcs
- Range
- PanelSeT
- Product or component type
- Folding support tray
- Application
- Multi-purpose
- Nominal dimensions of the housing
- - W: 500 mm
- Mounting location
- On door reinforcement frame; On door cross rails for 1000 mm wide enclosures
- Mounting support
- Cross rails
- Range compatibility
- PanelSeT SF SF, SM, SFX, SMX, S3D, CRN enclosures
- Device composition
- Fixing elements; 1 x tray
- Quantity per set
- Set of 1
- Material
- Steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Fixing mode
- By fixing element
- Adjustment
- Adjustable in height, steps of 25 mm
- Operating angle
- 45 °; 60 °; 75 °; 90 °
- Maximum load
- 30 kg/m²
- Height
- 50 mm
- Width
- Nominal: 325 mm
- Depth
- 350 mm
- thickness
- 1.5 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.000 cm
- Package 1 Width
- 36.000 cm
- Package 1 Length
- 40.500 cm
- Package 1 Weight
- 2.916 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 60
- Package 2 Height
- 63.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 185.200 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Model
- Component for supporting bracket
- Suitable for enclosure building width
- 500 mm
- Max. load capacity
- 30 kg
- RAL-number
- 7040
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606485131498
- SAP 1000317547
- Code 81014944
Product Documentation
