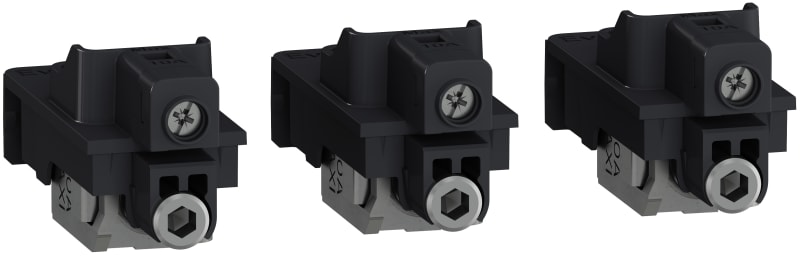

Everlinklemme NSXm 3 pcs

Schneider Electric LV426970 Everlinkklemme 2,5-95mm2, 160A Cu/100A Al with terminal outlet of hjelpesp. NSXm, 3pcs.

Manufacturer part number (MPN)

LV426970

EAN / GTIN

3606481156303

Sales unit

pcs

Package quantity

3 pcs

Range compatibility

ComPact ComPact NSXm

Product or component type

Cable connector

Accessory / separate part type

Connection accessories

Poles description

3P

Quantity per set

Set of 3

Location of connection

Upstream; Downstream

[In] rated current

16…160 A for copper; 16…100 A for aluminium

Conductor material

Steel

Connections - terminals

Screw terminal - 1 cable(s) 2.5…95 mm² - solid; Screw terminal2.5…95 mm² - stranded; Screw terminal2.5…70 mm² - fine stranded

Control wire terminal

10 A for 0.5…6 mm² (20 AWG...10 AWG), stranded or fine stranded; 10 A for 1.5…6 mm² (20 AWG...10 AWG), rigid

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.0 cm

Package 1 Width

13.0 cm

Package 1 Length

15.0 cm

Package 1 Weight

133.0 g

Unit Type of Package 2

S03

Number of Units in Package 2

50

Package 2 Height

30 cm

Package 2 Width

30 cm

Package 2 Length

40 cm

Package 2 Weight

7.2 kg

Country of origin

PL

Warranty (in months)

18

Type of accessory/spare part

Connection technique

Accessory

Yes

Spare part

No

HS Code

8536.69

• EAN 3606481156303
• SAP 1200323282
• Code 82306292
