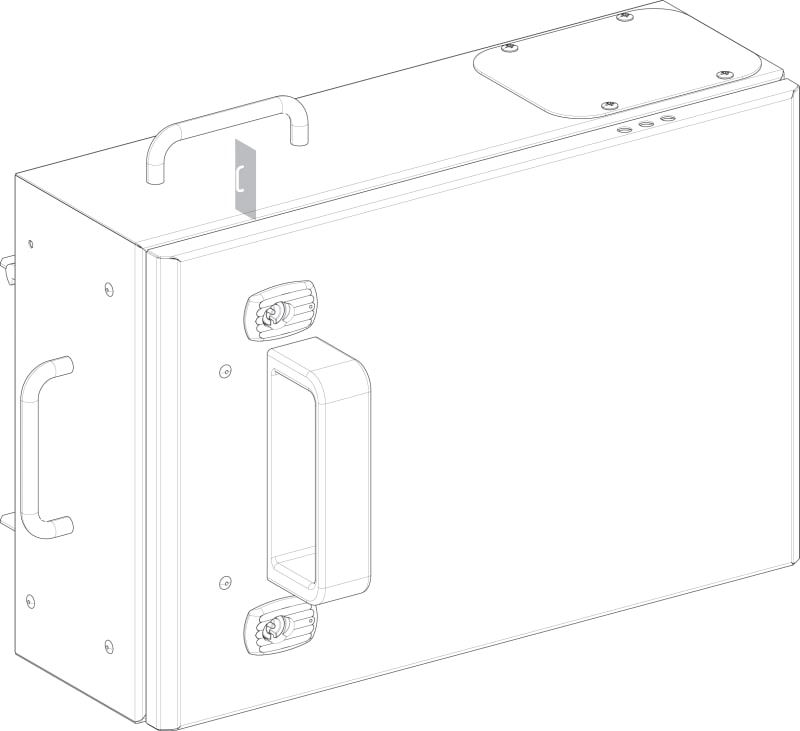

BOX 250A 3L+N NH1 (KSB250SE4)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric KSB250SE4 Box 250A 3L+N Nh1.
Technical Specifications
- Manufacturer part number (MPN)
- KSB250SE4
- EAN / GTIN
- 3606480005770
- Sales unit
- pcs
- Rated current
- 250 A
- Range of product
- Canalis
- Range compatibility
- Canalis KT busbar trunking; Canalis KS busbar trunking
- Product or component type
- Tap-off unit
- busbar trunking compatibility
- Canalis KS busbar trunkingplug-in; Canalis KT busbar trunking with KS type plug-in
- [Ie] rated operational current
- 250 A at 35 °C
- protection type
- fuse insulator: for aM blade type fuse, size 1 - 250 A conforming to NF; fuse insulator: for gG blade type fuse, size 1 - 250 A conforming to NF
- Provided equipment
- fuse to be ordered separately
- Mounting mode
- Plug-in with fixed polarity
- Tap-off unit polarity
- 3L+N+PE
- Colour
- White (RAL 9001)
- Device application
- Medium power distribution
- [Ue] rated operational voltage
- 230...690 V depending on protective device
- [Uimp] rated impulse withstand voltage
- 6.8 kV
- [Ui] rated insulation voltage
- 690 V depending on protective device
- Network frequency
- 50/60 Hz
- Electrical connection
- Copper cable lug - ISO40 150 mm² flexible; Copper cable lug - ISO40 150 mm² rigid
- door/cover opening side
- Right
- Tap-off unit disconnection mode
- By opening the door
- Standards
- IEC 61439-1; IEC 61439-6
- Body material
- Metal
- Width
- 630 mm
- Depth
- 258 mm
- depth (door open)
- 777 mm
- Height
- 432 mm
- Product weight
- 20 kg
- Earthing system
- TT; TN-S; IT
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 31.0 cm
- Package 1 Width
- 43.5 cm
- Package 1 Length
- 64.0 cm
- Package 1 Weight
- 20.1 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 4
- Package 2 Height
- 81.0 cm
- Package 2 Width
- 80.0 cm
- Package 2 Length
- 120.0 cm
- Package 2 Weight
- 97.0 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- RAL-number
- 9001
- With locking
- No
- Protection
- None
- Number of conductors (without earthing)
- 4
- Phase selection
- No
- Number of poles
- 5
- Length
- 630 mm
- Degree of protection (IP)
- IP55
- Branch off type
- Pipe in-lead
- Rated current AC 50 Hz
- 250 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480005770
- SAP 1000470842
- Code 8114871
