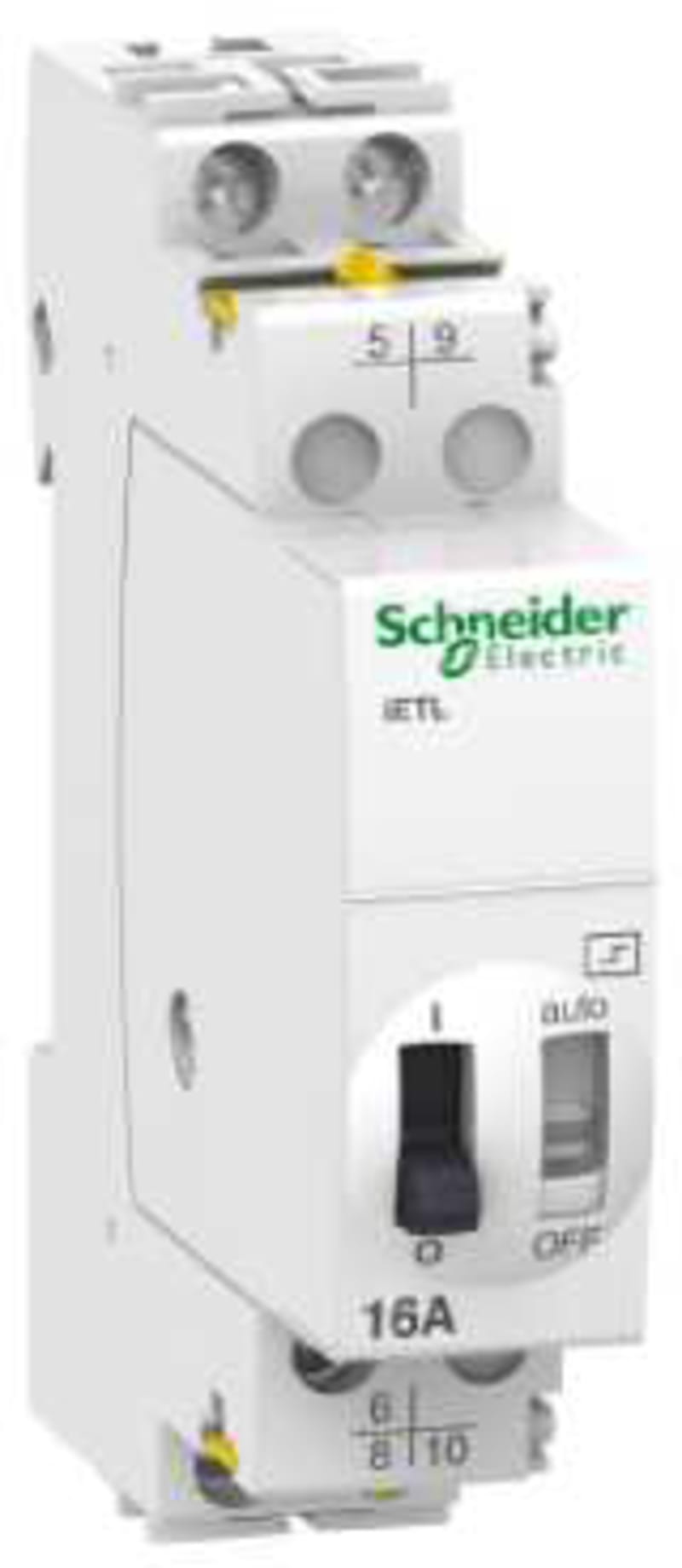

Schneider Electric extension iETL iTL 16 - 2P - 1C/O + 1NO - 16A - coil 24VDC - 48VAC 50/60Hz A9C32216
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9C32216 Tilleggsblokk ietl 16a 2no 48vac/24vdc.
Technical Specifications
- Manufacturer part number (MPN)
- A9C32216
- EAN / GTIN
- 3606480091940
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Voltage
- 48 V AC
- Contact configuration
- 2 NO
- range of product
- Acti9
- Product or component type
- Extension for impulse relay
- Device short name
- iETL iTL 16
- Relay application
- Remote control
- Poles description
- 2P
- Pole contact composition
- 1 C/O + 1 NO
- [In] rated current
- 16 A
- Network type
- AC
- Network frequency
- 50/60 Hz
- [Ue] rated operational voltage
- 415 V AC 50/60 Hz
- Control type
- Remote control; Toggle
- Control signal type
- Impulse
- Switching frequency
- 5 switching operations/minute
- Impulse duration
- 50 ms
- Remote control type
- Illuminated push-button 3 mA
- Local signalling
- ON/OFF indication
- [Uc] control circuit voltage
- 48 V AC 50/60 Hz; 24 V DC
- Supply inrush power
- 19 VA
- mounting mode
- Fixed, on right side of TL
- Mounting support
- 35 mm symmetrical DIN rail
- 9 mm pitches
- 2
- Height
- 60 mm
- Width
- 18 mm
- Depth
- 84 mm
- Colour
- White
- Electrical durability
- AC-21: 200000 cycles; AC-22: 100000 cycles
- Connections - terminals
- Tunnel type terminals - <= 6 mm²
- Auxiliary connection terminal
- Tunnel type terminals control circuit in 0.5…6 mm²
- Range compatibility
- Acti9 iTL; Acti9 iTLi
- Product compatibility
- ITL 16A
- Standards
- EN 669-2-2; EN 669-1
- Product certifications
- GOST
- Quality labels
- VDE; NF; IMQ; KEMA; CEBEC
- Noise level
- 60 dB
- IP degree of protection
- IP20 conforming to IEC 60529
- Pollution degree
- 3
- Tropicalisation
- 2 conforming to IEC 60068-1
- Relative humidity
- 95 % at 55 °C
- Ambient air temperature for operation
- -20…50 °C
- Ambient air temperature for storage
- -40…70 °C
- Country of origin
- BE
- Warranty (in months)
- 18
- Function
- Mechanical
- Mounting method
- DIN rail
- Width in number of modular spacings
- 1
- Built-in depth
- 84 mm
- Number of contacts as normally open contact
- 1
- Number of contacts as change-over contact
- 1
- Control voltage 1
- 48 V
- Type of control voltage 1
- AC
- Frequency control voltage 1
- 50–60 Hz
- Control voltage 2
- 24 V
- Type of control voltage 2
- DC
- Rated current
- 16 A
- Supply voltage
- 24–250 V
- Voltage type (supply voltage)
- AC
- Max. incandescent lamp load
- 1600 W
- Max. load fluorescent lamp
- 1300 VA
- Max. switching current (cos phi = 0.6)
- 16 A
Standards & Compliance
- HS Code
- 8536.41
Cross References
- EAN 3606480091940
- SAP 1000325947
- Code 8873923
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Connection Withd NS-MTZ1/NT 4P 1250A Prisma P LVS04478
Schneider Electric
Schneider Electric comb busbar, ACTI9, 1L+N, 9 mm pitch, 24 modules, 80 A A9XPC624
Schneider Electric
Schneider Electric K10B001UCH Cam Selector Switch, 2 Positions with Off Position, 1-Pole
Schneider Electric
Schneider Electric Complete selector switch, Harmony XB4, Explosive atmosphere, 455 Key swith 3 positions stay put XB4BG03GEX
Schneider Electric
Schneider Electric Multiple adapter, Mureva PK, 2X16A, 220V, 2P+E, IP67 PKZM703
Schneider Electric
FBS25PC ASD aspirasjonsfilter
FFS06432580
Schneider Electric
Schneider Electric Metal industrial box plain door H200XW400XD80 IP66 IK10 RAL 7035 NSYSBM20408
Schneider Electric

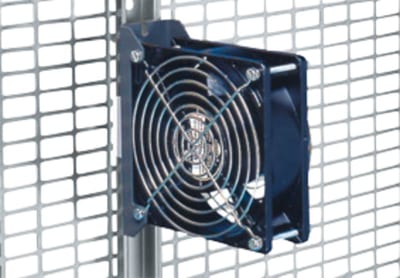

Schneider Electric Motor fan 35 M3/h 115V NSYCVF35M115
