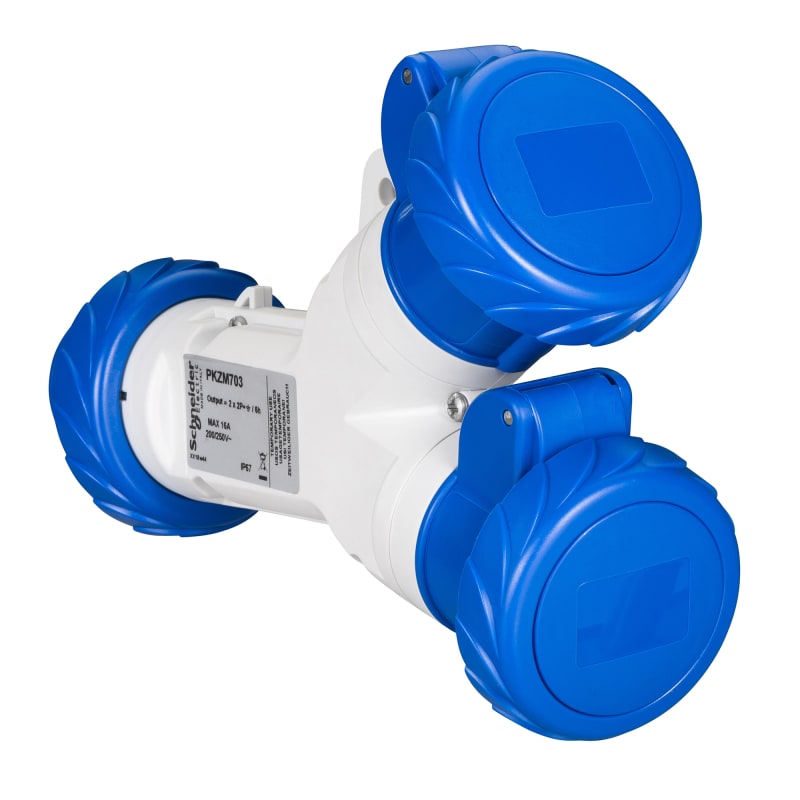

Schneider Electric Multiple adapter, Mureva PK, 2X16A, 220V, 2P+E, IP67 PKZM703

Schneider Electric PKZM703 PratiKa coupler socket - 2-grens outlet - 16 A - 2P+E - 220V AC - IP67.

Manufacturer part number (MPN)

PKZM703

EAN / GTIN

3303432340902

Sales unit

pcs

Package quantity

13 pcs

Rated current

16 A

Range

Mureva

Product or component type

Multiple adapter

Accessory / separate part category

Adaptation accessory

Poles description

2P + E

[In] rated current

16 A

[Ue] rated operational voltage

220 V

Socket number

2 ( 16 A )

Contacts material

Pins: nickel plated brass; Sleeves: brass

Plug, socket material

Housing: self-extinguishing polymer

Product weight

0.44 kg

Height

160 mm

Width

233 mm

Colour

Grey (RAL 7035)

Voltage colour

Blue

Standards

IEC 60309-1; IEC 60309-2

IP degree of protection

IP67 conforming to IEC 60529

IK degree of protection

IK08 conforming to EN 62262

Fire resistance

850 °C conforming to IEC 60695-2-11

Ambient air temperature for operation

35 °C ( 86400 s ) ; -25…40 °C

Number of Units in Package 1

1

Number of Units in Package 2

13

Warranty (in months)

18

IEC-amperage

16 A

Number of poles

3

Voltage according to EN 60309-2

230 V (50+60 Hz) blue

Identification colour

Blue

RAL-number

7035

Degree of protection (IP)

IP67

Connection system

Screwed terminal

Insert direction

Angled

Cable entry

Gland nut

Material

Plastic

Military model

No

Country of origin

Italy

HS Code

8536.69

• EAN 3303432340902
• SAP 1200500603
• Code 82623491
