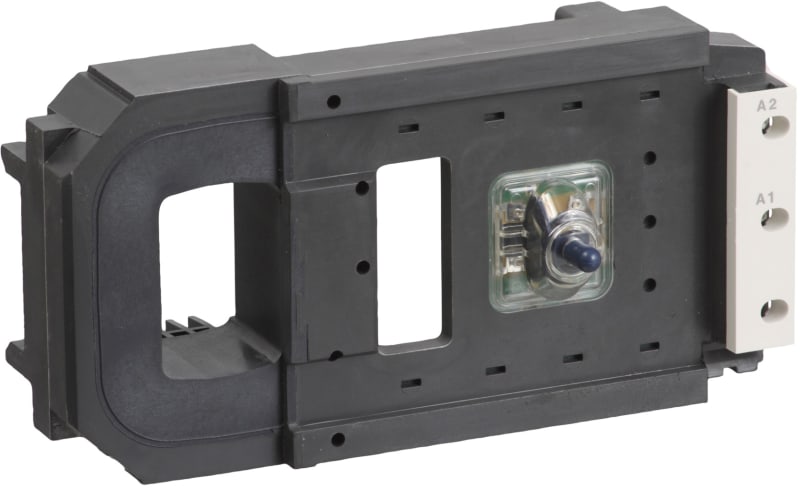

Schneider Electric TeSys F - contactor coil - LX4F8 - 220...240 V DC LX4F8MW
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LX4F8MW Coils for Tesys F contactors.
Technical Specifications
- Manufacturer part number (MPN)
- LX4F8MW
- EAN / GTIN
- 3389110955552
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Voltage
- 220-240 V
- Range
- TeSys
- Product or component type
- Contactor coil
- Device short name
- LX4F8
- Range compatibility
- TeSys TeSys F LC1F contactor
- Product compatibility
- LC1F800
- Control circuit type
- DC low consumption
- [Uc] control circuit voltage
- 220...240 V DC
- Operating time
- 40...50 ms opening; 60...80 ms closing
- Mechanical durability
- 5 Mcycles
- Maximum operating rate
- 600 cyc/h 55 °C
- Coil technology
- Without built-in suppressor module
- Control circuit voltage limits
- Operational: 0.85...1.1 Uc (at 55 °C); Drop-out: 0.3...0.5 Uc (at 55 °C)
- Inrush power in W
- 1900 W (at 20 °C)
- Hold-in power consumption in W
- 12 W at 20 °C
- Ambient air temperature for operation
- -5…55 °C
- Product weight
- 1.65 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 6
- Country of origin
- CZ
- Warranty (in months)
- 18
- Rated control supply voltage DC
- 220–240 V
- Voltage type for actuating
- DC
Standards & Compliance
- HS Code
- 8504.50
Cross References
- EAN 3389110955552
- SAP 1000256791
- Code 81143157
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Thermal magnetic circuit breaker, TeSys GB2, 1P+N, 10 A, Icu 1.5 kA@240 V GB2CD16
Schneider Electric
Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 IC60, 4P, 20A, B curve, 6000A/6KA, A type, 30MA A9D87420
Schneider Electric
Schneider Electric Linergy BS Busbar Coupling for 120 mm Horizontal Rail
LVS04643
Schneider Electric
Current Transformer 2500/5 Rail 38X127
METSECT5DB250
Schneider Electric
Schneider Electric Miniature circuit breaker (MCB), ACTI9 C120H, 3P, 100A, C curve, 15000A (IEC/EN 60898-1), 15KA (IEC/EN 60947-2) A9N18469
Schneider Electric
AL-Terminal F/70MM2-CABLE (19095)
Schneider Electric

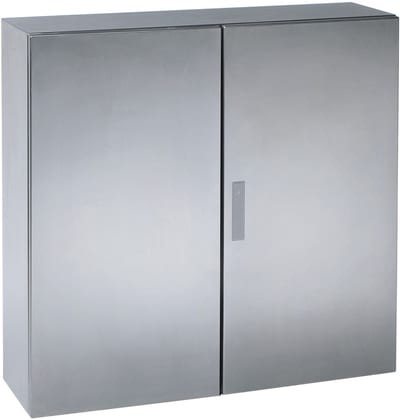

Schneider Electric PanelSet S3X stainless 304L, Scotch Brite® finish, H1200XW1000XD300 mm. NSYS3X121030
