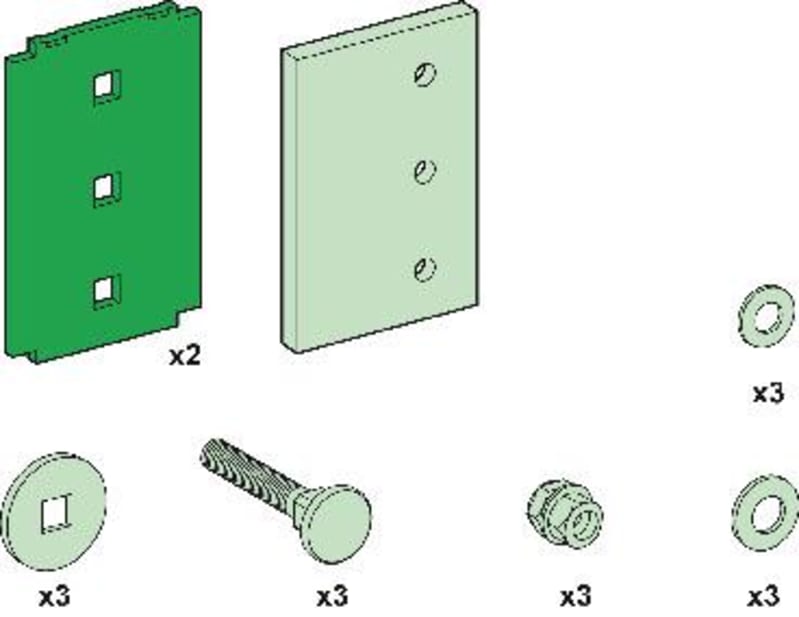

Schneider Electric Linergy BS Busbar Coupling for 120 mm Horizontal Rail
Pricing
Request a quote
We reply within 24 hours
Product Description
Linergy BS busbar coupling adapter with torque nut for horizontal 120 x 10 mm busbars in PrismaSeT switchboards. Rated 4000 A operational current with ASTA certification to IEC 60439-1 and IEC 60439-2 for use inside enclosures. Set of one, supplied in packs of five.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04643
- EAN / GTIN
- 3606481866790
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Connection adapter
- Product name
- Linergy BS
- Accessory / separate part category
- Coupling accessory
- Standards
- IEC 60439-1, inside enclosure; IEC 60439-2, inside enclosure
- Product certifications
- ASTA
- [Ie] rated operational current
- 4000 A
- Busbar cross section
- 120 x 10 mm
- Height
- 125 mm
- Width
- 90 mm
- Product weight
- 1.92 kg
- Quantity per set
- Set of 1
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.500 cm
- Package 1 Width
- 10.000 cm
- Package 1 Length
- 14.000 cm
- Package 1 Weight
- 1.899 kg
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 5
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 9.890 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 80
- Package 3 Height
- 42.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 166.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Rated current
- 4000 A
Standards & Compliance
- HS Code
- 7419.99
Cross References
- EAN 3606481866790
- SAP 1200547004
- Code 82879092
Product Documentation
