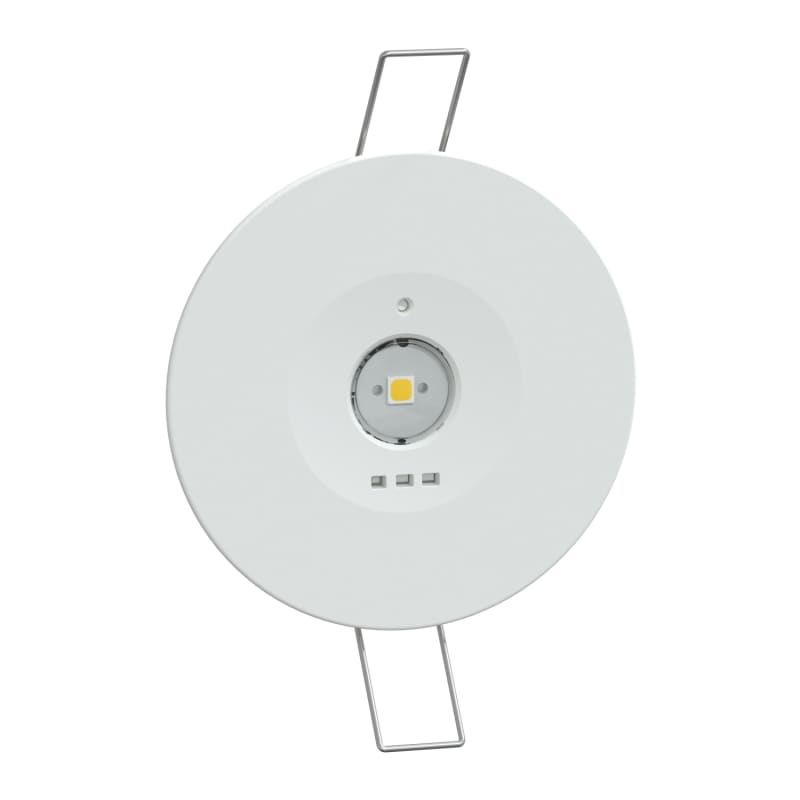

Smartbeam ACT/D3 RECESSED SYM 2T IP42 380LM
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric OVA48983 Exiway Smartbeam emergency lighting Activa/Dali, 380lm, recessed, symmetric, 2 t, M/NM, IP42, LiFePO4.
Technical Specifications
- Manufacturer part number (MPN)
- OVA48983
- EAN / GTIN
- 3606487002901
- Sales unit
- pcs
- IP rating
- IP42
- Luminous flux
- 380 lm
- Mounting method
- Surface mounting/recessed mounting
- Suitable for labelling type
- Insert sheet/plate
- Type of indicator
- Double-sided
- Monitoring equipment
- Automatic self test
- Power supply system
- Peripheral (individual battery)
- Battery technology
- Lithium-ion
- Lamp type
- LED not exchangeable
- Housing material
- Plastic
- Housing colour
- White
- Voltage type
- AC
- Type of control gear
- LED operating device current-controlled
- Luminous flux in emergency mode
- 380 lm
- Rated lifetime L70/B50 at 25 °C
- 100000 h
- Degree of protection (IP)
- IP42
- Impact strength
- IK04
- Max. system power
- 3.66 W
- Rated luminous flux according to IEC 62722-2-1
- 380 lm
- Luminous flux in standby mode
- 220 lm
- Recognition distance
- 20 m
- Height/depth
- 32 mm
- Outer diameter
- 90 mm
- Type of wiring
- Suitable for loop-through wiring
- Conductor cross section
- 2.5 mm²
- Connection type
- Plug-in connection
- Emergency power supply system
- Peripheral (individual battery)
- Power consumption in emergency mode
- 3.66 W
- Emergency function monitoring system
- Automatic self test
- Type of lithium-ion battery
- Lithium iron phosphate (LiFePO4)
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 3606487002901
- SAP 1200931237
- Code 84218890
Product Documentation
More from Schneider Electric
Schneider Electric

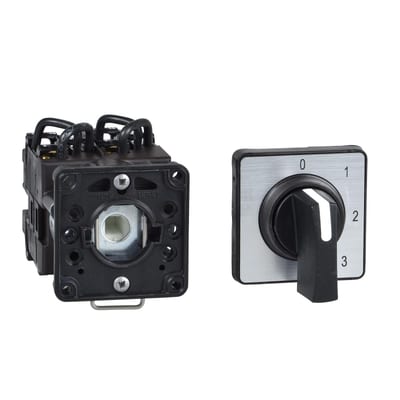

Schneider Electric K2F013UCH Cam Selector Switch, 2 Positions, 3-Pole, Ø22 mm
Schneider Electric

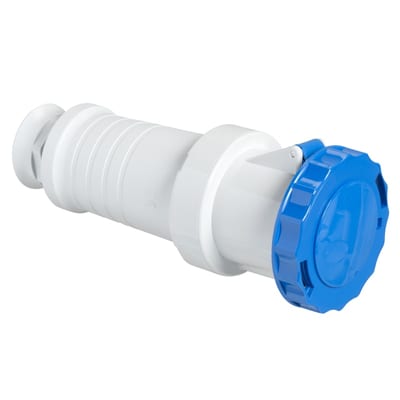

Coupler connector 63A 3P+E 230V IP67
81479
Schneider Electric

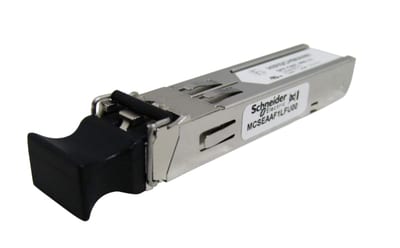

Eth Fiber Module SFP SX/LC MM
MCSEAAF1LFU00
Schneider Electric

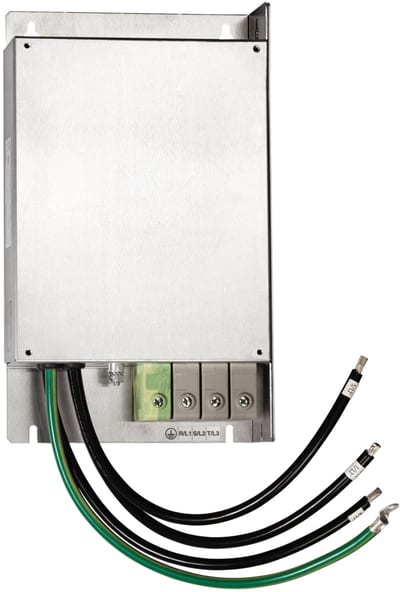

Schneider Electric additionnal EMC filter - 47 A - 3 POLAR WHITE VW3A4424
Schneider Electric

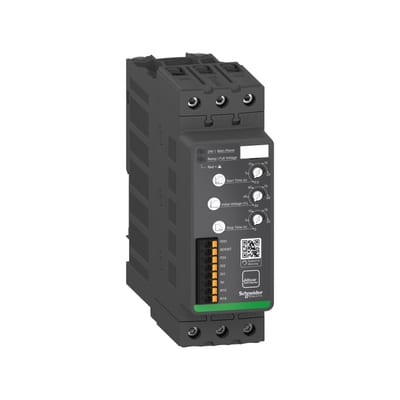

Schneider Electric Altivar Soft Starter ATS130, 38A, 200 to 480V AC, control supply 24V DC ATS130N2D38LT
Schneider Electric

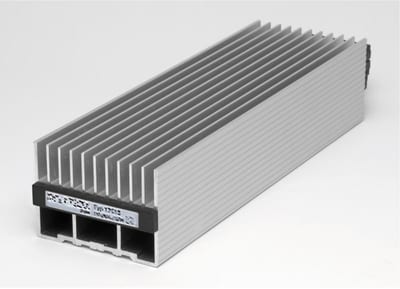

Schneider Electric ClimaSys PTC heating resistance 20W, 12-24V NSYCR20WU1
Schneider Electric

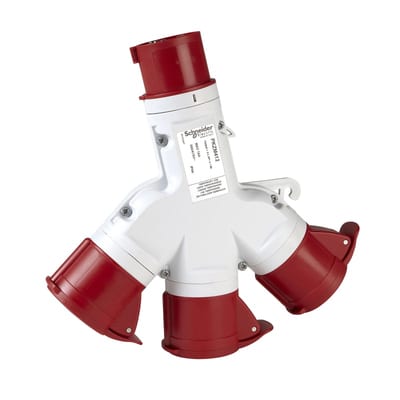

Coupler connector, 3-Way 16A 3P+E IP67 400V
PKZM712
Schneider Electric

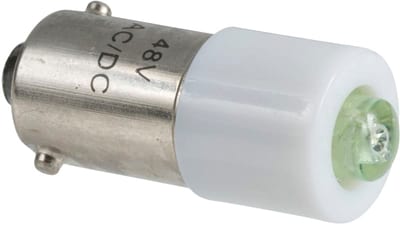

Glimlampe BA9S 5000 Hours
