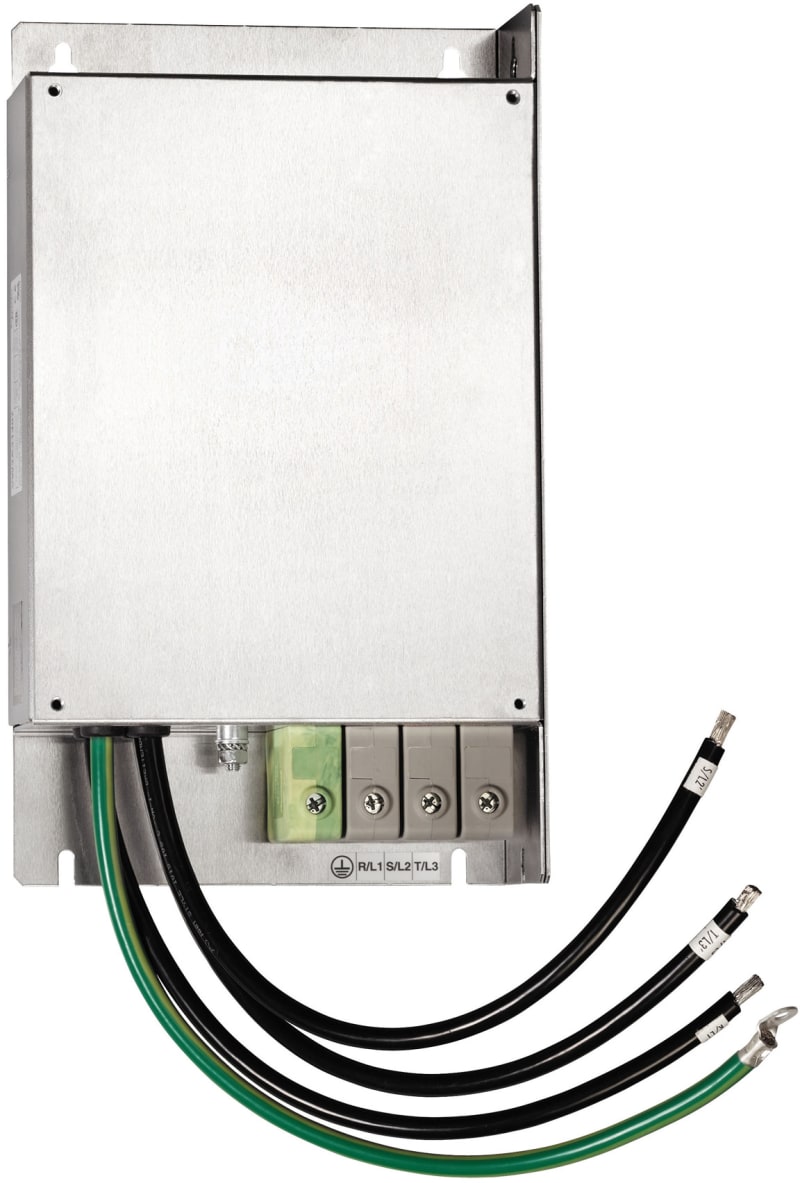

Schneider Electric additionnal EMC filter - 47 A - 3 POLAR WHITE VW3A4424

Schneider Electric VW3A4424 EMC filter 3-phase 240-500V 47A.

Manufacturer part number (MPN)

VW3A4424

EAN / GTIN

3606480320873

Sales unit

pcs

Package quantity

22 pcs

Voltage

240-500 V

Range of product

Altivar; Lexium

Product or component type

EMC input filter

Range compatibility

Altivar Machine ATV320; Lexium 28; Altivar 32; Lexium 32

Product compatibility

LXM28A; ATV32, 380...500 V, 5...7.5 kW; Variable speed drive ATV320 at 5.5 kW, 380...500 V, three phase; Variable speed drive ATV320 at 7.5 kW, 380...500 V, three phase; Variable speed drive ATV320...W/ATV320...WS at 5.5 kW, 380...500 V, three phase; Variable speed drive ATV320...W/ATV320...WS at 7.5 kW, 380...500 V, three phase

Product specific application

Radio interference input filter

Mounting location

Below variable speed drive

Network number of phases

Three phase

Maximum cable distance between devices

20 m conforming to IEC 61800-3 category C1; 100 m conforming to IEC 61800-3 category C2; 150 m conforming to IEC 61800-3 category C3

[In] rated current

47 A

Thermal losses

19.3 W

Network rated voltage

380…500 V

Tolerance

- 15...10 %

Product weight

3.15 kg

Emc filter compatibility

Type 024

Number of Units in Package 1

1

Number of Units in Package 2

22

Country of origin

TH

Warranty (in months)

18

Type of accessory/spare part

Filter

Accessory

Yes

Spare part

No

HS Code

8548.90

• EAN 3606480320873
• SAP 1000528417
• Code 8885735
