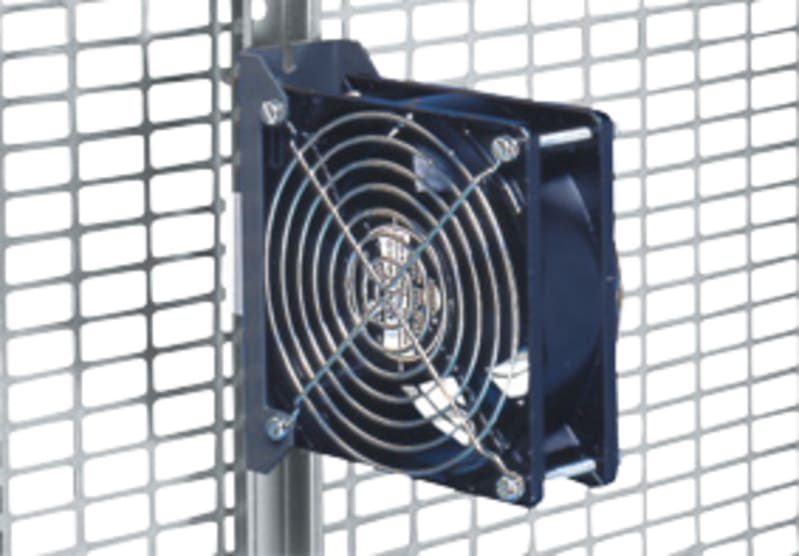

Schneider Electric Motor fan 35 M3/h 115V NSYCVF35M115
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCVF35M115 FAN 35M3/H 115V.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCVF35M115
- EAN / GTIN
- 3606480151491
- Sales unit
- pcs
- Voltage
- 115 V
- Flow rate
- 35 m³/h
- Range
- ClimaSys
- Product name
- ClimaSys CV
- Product or component type
- Fan motor
- Input voltage
- 115 V 50/60 Hz
- Absorbed power
- 16 W 50 Hz; 14 W 60 Hz
- Noise level < at
- 32 dB
- Height
- External: 80 mm
- Width
- External: 80 mm
- Depth
- External : 25 mm
- Cut-out dimensions
- Ø 78 mm
- Device composition
- 1 axial motor
- Number of Units in Package 1
- 1
- Warranty (in months)
- 18
- Mounting method
- Screw mounting
- Colour
- Black
- RAL-number
- 9005
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- No
- Number of fans
- 1
- EMC-version
- No
- Degree of protection (IP)
- IP20
- With protective cover
- No
- With filter
- No
- Rated power
- 16 W
- Roof fan
- No
- Built as slide-in fan
- Yes
- Volume flow, freeblowing
- 35 m³/h
- Air circulator
- Yes
- Suitable for wall built-in
- No
- Noise emission
- 32 dB(A)
- Operating voltage AC 50 Hz
- 115 V
- Operating voltage AC 60 Hz
- 115 V
- Country of origin
- China
Standards & Compliance
- HS Code
- 8414.59
Cross References
- EAN 3606480151491
- SAP 1000470006
- Code 8579495
Product Documentation
