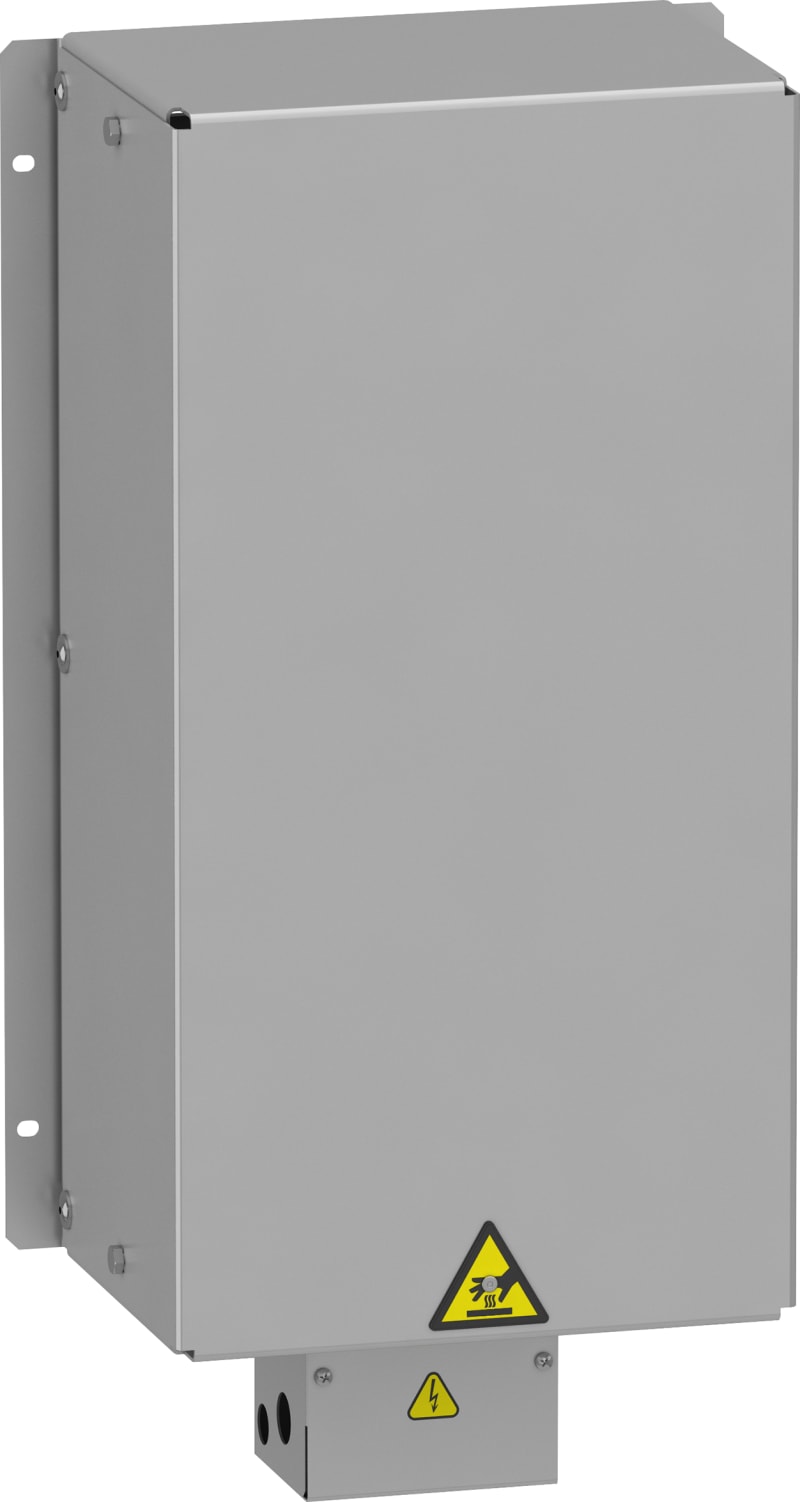

Schneider Electric braking resistor - 16 ohms - 2.2 kW - IP20 VW3A7743

Schneider Electric VW3A7743 Braking resistor 16 ohms 1,9kW IP20.

Manufacturer part number (MPN)

VW3A7743

EAN / GTIN

3606480802362

Sales unit

pcs

Power

1.9 kW

Resistance

16 Ω

Range compatibility

Altivar Machine ATV340; Altivar Process ATV900; Easy Altivar 310

Product or component type

Braking resistor

Ohmic value

16 Ohm

[Ue] rated operational voltage

24 V DC; 250 V AC

Product compatibility

Variable speed drive ATV930 wall mount 18.5 kW 380...480 V medium cycle; Variable speed drive ATV930 wall mount 22 kW 380...480 V medium cycle; Variable speed drive ATV930 wall mount 30 kW 380...480 V medium cycle; Variable speed drive ATV950 wall mount 18.5 kW 380...480 V medium cycle; Variable speed drive ATV950 wall mount 22 kW 380...480 V medium cycle; Variable speed drive ATV950 wall mount 30 kW 380...480 V medium cycle; Variable speed drive ATV930 wall mount 5.5 kW 200...240 V severe cycle; Variable speed drive ATV340 15 kW 380...480 V medium cycle; Variable speed drive ATV340 18 kW 380...480 V medium cycle; Variable speed drive ATV340 22 kW 380...480 V medium cycle; Variable speed drive ATV930 22 kW 500...690 V medium cycle; Variable speed drive ATV930 30 kW 500...690 V medium cycle; Variable speed drive ATV930 37 kW 500...690 V medium cycle; Variable speed drive ATV930 32 hp 600 V medium cycle; Variable speed drive ATV930 40 hp 600 V medium cycle; Variable speed drive ATV930 50 hp 600 V medium cycle

Duty cycle

Severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle ; Medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle ; Medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle ; Severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle

Average power available

1.9 kW at 50 °C

Electrical connection

terminal, connection capacity: <= 10 mm² / 8 AWG for drive; terminal, connection capacity: <= 2.5 mm² / 12 AWG for temperature control switch

Protection type

Thermal protection via drive or temperature control switch at 120 °C

Width

290 mm

Height

570 mm

Depth

180 mm

Product weight

6.4 kg

IP degree of protection

IP20

Ambient air temperature for storage

-25…70 °C

Ambient air temperature for operation

0…50 °C

Country of origin

DE

Warranty (in months)

18

Type of accessory/spare part

Breaking resistance

Accessory

Yes

Spare part

No

HS Code

8533.29
