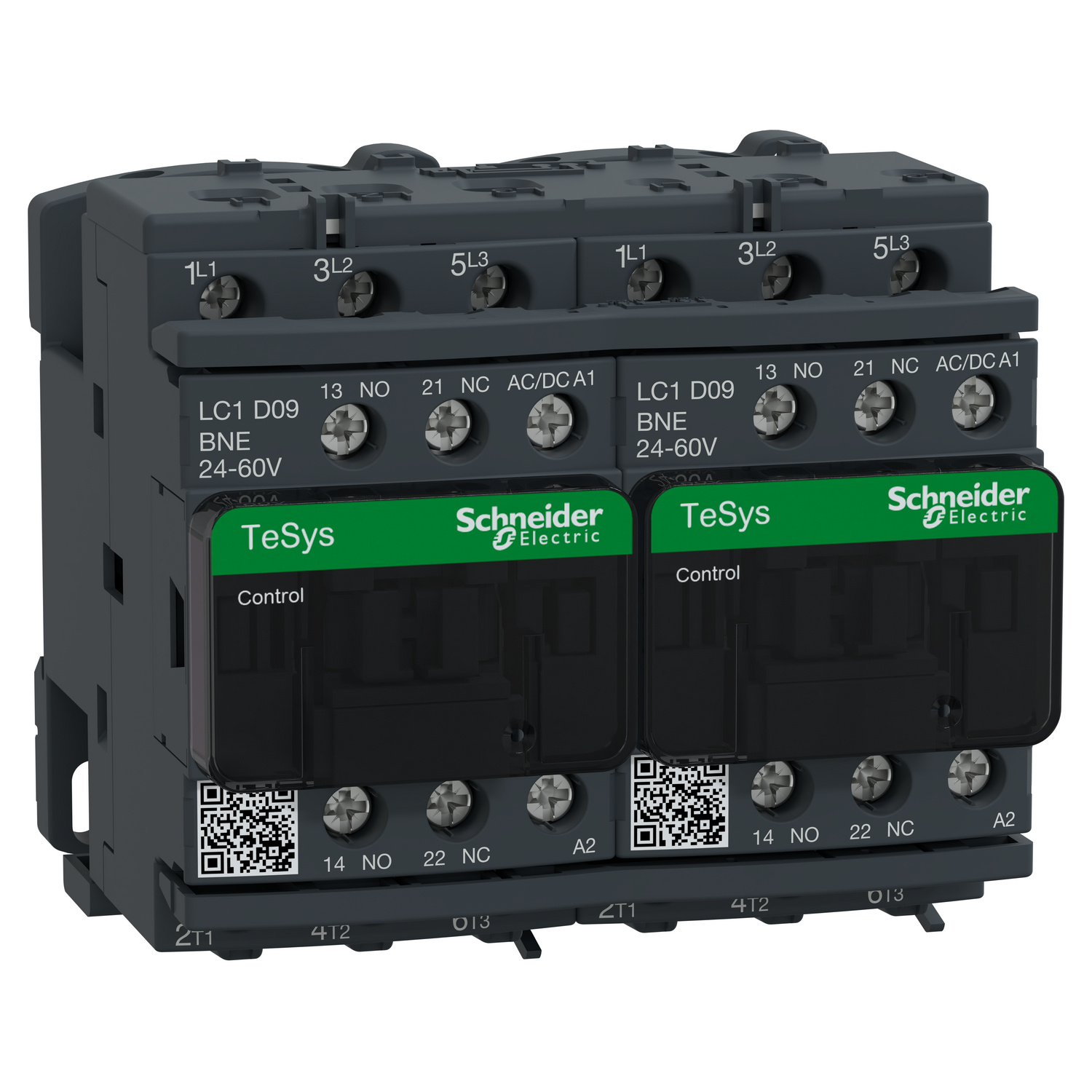

Schneider Electric LC2D09BNE TeSys Deca Reversing Contactor, 3-Pole 9 A AC-3, 24–60 V AC/DC Coil

Schneider Electric LC2D09BNE is a TeSys Deca reversing contactor — two 3-pole (3 NO) contactors factory-assembled with mechanical and electrical interlock and pre-wired power reversing links, for forward/reverse control of three-phase motors. AC-3 rated operational current 9 A up to 440 V (4 kW at 400 V). Control coil 24–60 V AC/DC (BNE, wide-range low-consumption electronic). Each contactor carries one built-in 1 NO + 1 NC auxiliary contact. Conforms to IEC 60947-4-1. EAN 3606480987847; Schneider commercial reference LC2D09BNE.

Manufacturer part number (MPN)

LC2D09BNE EAN / GTIN: 3606480987847 Product type: TeSys Deca reversing contactor Main poles: 3P, 3 NO Utilisation category: AC-3 Rated operational current Ie (AC-3, ≤ 440 V): 9 A Rated motor power (AC-3, 400 V): 4 kW Control circuit coil: 24–60 V AC/DC (BNE) Built-in auxiliary contacts: 1 NO + 1 NC per contactor Interlocking: mechanical and electrical Power terminals: screw-clamp terminals Conforms to: IEC 60947-4-1 HS code: 8536.90 Sales unit: pcs Package quantity: 6 pcs Product name: TeSys Deca Advanced Product or component type: Reversing contactor Device short name: LC2D Contactor application: Motor control; Resistive load Device presentation: Preassembled with reversing power busbar Poles description: 3P power pole contact composition: 3 NO [Ue] rated operational voltage: Power circuit: <= 690 V AC 25...400 Hz [Ie] rated operational current: 9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit; 25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit; 9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit Motor power kW: 2.2 kW at 220...230 V AC 50 Hz; 4 kW at 380...400 V AC 50 Hz; 4 kW at 415 V AC 50 Hz; 4 kW at 440 V AC 50 Hz; 5.5 kW at 500 V AC 50 Hz; 5.5 kW at 660...690 V AC 50 Hz Motor power hp: 0.33 hp at 115 V AC 60 Hz for 1 phase motors; 1 hp at 230/240 V AC 60 Hz for 1 phase motors; 2 hp at 200/208 V AC 60 Hz for 3 phases motors; 2 hp at 230/240 V AC 60 Hz for 3 phases motors; 5 hp at 460/480 V AC 60 Hz for 3 phases motors; 7.5 hp at 575/600 V AC 60 Hz for 3 phases motors Control circuit type: AC at 50/60 Hz AC/DC electronic; DC AC/DC electronic [Uc] control circuit voltage: 24...60 V AC 50/60 Hz; 24...60 V DC Auxiliary contact composition: 1 NO + 1 NC [Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947 Overvoltage category: III [Ith] conventional free air thermal current: 10 A (at 60 °C) for signalling circuit; 25 A (at 60 °C) for power circuit Irms rated making capacity: 250 A at 440 V for power circuit conforming to IEC 60947; 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1 Rated breaking capacity: 250 A at 440 V for power circuit conforming to IEC 60947 [Icw] rated short-time withstand current: 105 A 40 °C - 10 s for power circuit; 210 A 40 °C - 1 s for power circuit; 30 A 40 °C - 10 min for power circuit; 61 A 40 °C - 1 min for power circuit; 100 A - 1 s for signalling circuit; 120 A - 500 ms for signalling circuit; 140 A - 100 ms for signalling circuit Associated fuse rating: 10 A gG for signalling circuit conforming to IEC 60947-5-1; 25 A gG at <= 690 V coordination type 1 for power circuit; 20 A gG at <= 690 V coordination type 2 for power circuit Average impedance: 2.5 mOhm - Ith 25 A 50 Hz for power circuit [Ui] rated insulation voltage: Power circuit: 690 V conforming to IEC 60947-4-1; Signalling circuit: 690 V conforming to IEC 60947-1 Power dissipation per pole: 1.56 W AC-1; 0.2 W AC-3; 0.2 W AC-3e Front cover: With Interlocking type: Mechanical Mounting support: Rail; Plate Connections - terminals: Power circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end; Power circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end; Power circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end; Power circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end; Power circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid; Power circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid; Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end; Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end; Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end; Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end; Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid; Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid Tightening torque: Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm; Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2; Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm; Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2; Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2; Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 Safety reliability level: B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 Maximum operating rate: 3600 cyc/h 60 °C Coil technology: Built-in bidirectional peak limiting Control circuit voltage limits: <= 0.1 Uc (-40…70 °C):drop-out AC/DC; 0.85...1.1 Uc (-40…60 °C):operational AC; 0.8...1.1 Uc (-40…60 °C):operational DC; 1...1.1 Uc (60…70 °C):operational AC/DC Auxiliary contacts type: type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1; type mirror contact 1 NC conforming to IEC 60947-4-1 Signalling circuit frequency: 25...400 Hz minimum switching current: 5 mA for signalling circuit minimum switching voltage: 17 V for signalling circuit Non-overlap time: 1.5 ms on de-energisation between NC and NO contact; 1.5 ms on energisation between NC and NO contact Insulation resistance: > 10 MOhm for signalling circuit IP degree of protection: IP20 front face conforming to IEC 60529 Climatic withstand: conforming to IACS E10; conforming to IEC 60947-1 Annex Q category D Protective treatment: TH conforming to IEC 60068-2-30 Pollution degree: 3 Ambient air temperature for operation: -40…60 °C; 60…70 °C with derating Ambient air temperature for storage: -60…80 °C Operating altitude: 0...3000 m Fire resistance: 850 °C conforming to IEC 60695-2-1 Flame retardance: V1 conforming to UL 94 Mechanical robustness: Vibrations contactor open: 2 Gn, 5...300 Hz; Vibrations contactor closed: 4 Gn, 5...300 Hz; Shocks contactor open: 10 Gn for 11 ms; Shocks contactor closed: 15 Gn for 11 ms Height: 77 mm Width: 90 mm Depth: 86 mm Product weight: 0.783 kg Colour: Grey (SE GREY 6); Green (SE GREEN 2) Country of origin: FR Warranty (in months): 18

Standard

IEC 60947-4-1

HS Code

8536.90

• EAN 3606480987847
• SAP 1000800845
• Code 81457850
