NG125L/C 25-2 Modular Power Switch
Pricing
Request a quote
We reply within 24 hours
Product Description

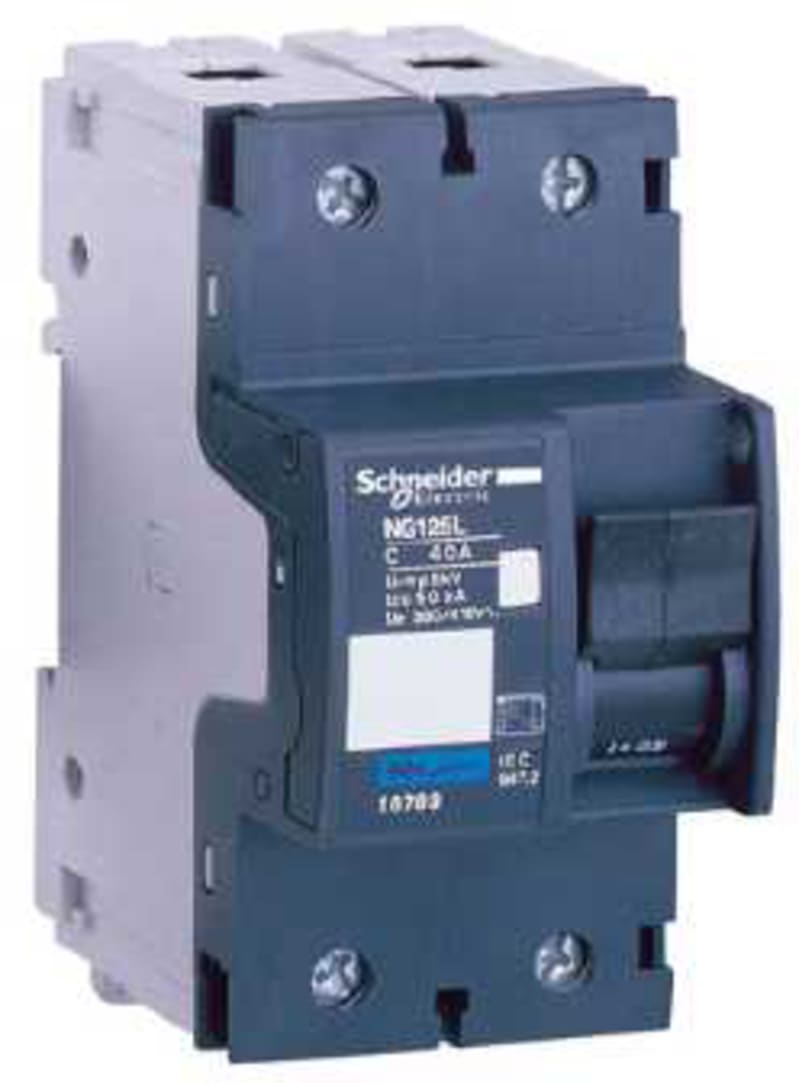

Schneider Electric 18791 NG125L/C 25-2 Modular power switch
Technical Specifications
- Manufacturer part number (MPN)
- 18791
- EAN / GTIN
- 3303430187912
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Power loss
- 2.7 W
- Built-in depth
- 47 mm
- Release characteristic
- C
- Number of poles (total)
- 2
- Number of protected poles
- 2
- Rated current
- 25 A
- Rated voltage
- 240 V
- Rated insulation voltage Ui
- 690 V
- Rated impulse withstand voltage Uimp
- 8 kV
- Frequency
- 50–60 Hz
- Concurrently switching neutral conductor
- Yes
- Overvoltage category
- 4
- Pollution degree
- 3
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 3
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -30–70 °C
- Connectable conductor cross section multi-wired
- 1–35 mm²
- Connectable conductor cross section solid-core
- 1.5–50 mm²
- Explosion-proof
- No
- Flush-mounted installation
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 3303430187912
- SAP 1000053685
- Code 8823089
Product Documentation
More from Schneider Electric
Schneider Electric
Front plate NSXm-hor./dreieh. B600/650-G/P
LVS03331
Schneider Electric
Schneider Electric A9F95210 ACTI9 IC60L Miniature Circuit Breaker 2P 10 A, Curve K
Schneider Electric
NG125N/C 80-4 Modular Power Switch
18658
Schneider Electric
Shelf 480X290MM (NSYFXT6040)
Schneider Electric
Schneider Electric A9F92402 ACTI9 IC60L Miniature Circuit Breaker 4P 2 A, Curve Z
Schneider Electric
Schneider Electric Auxiliary contact, ACTI9 A9N, OF+SD, 1 NO + 1 NC, 2MA to 100MA, 24VDC, TI24 connector on top (sold separately) A9N26899
Schneider Electric
Schneider Electric Circuit breaker frame, ComPacT NS800L, 150KA at 415VAC, 800A, 3P, fixed, manually operated, without control unit C080L3FM
Schneider Electric
Schneider Electric LV429513 — Torque-Limiting Screws, NSX100/160/250, Power Connections (set of 12)
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 18791?
- 18791 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is 18791.
- What is the HS code for 18791?
- The customs tariff (HS) code for 18791 is 8536.20.
- Who manufactures 18791?
- 18791 is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for 18791?
- Yes — the 18791 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 18791?
- The minimum order quantity is 1.
- Is 18791 available?
- Yes — 18791 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
