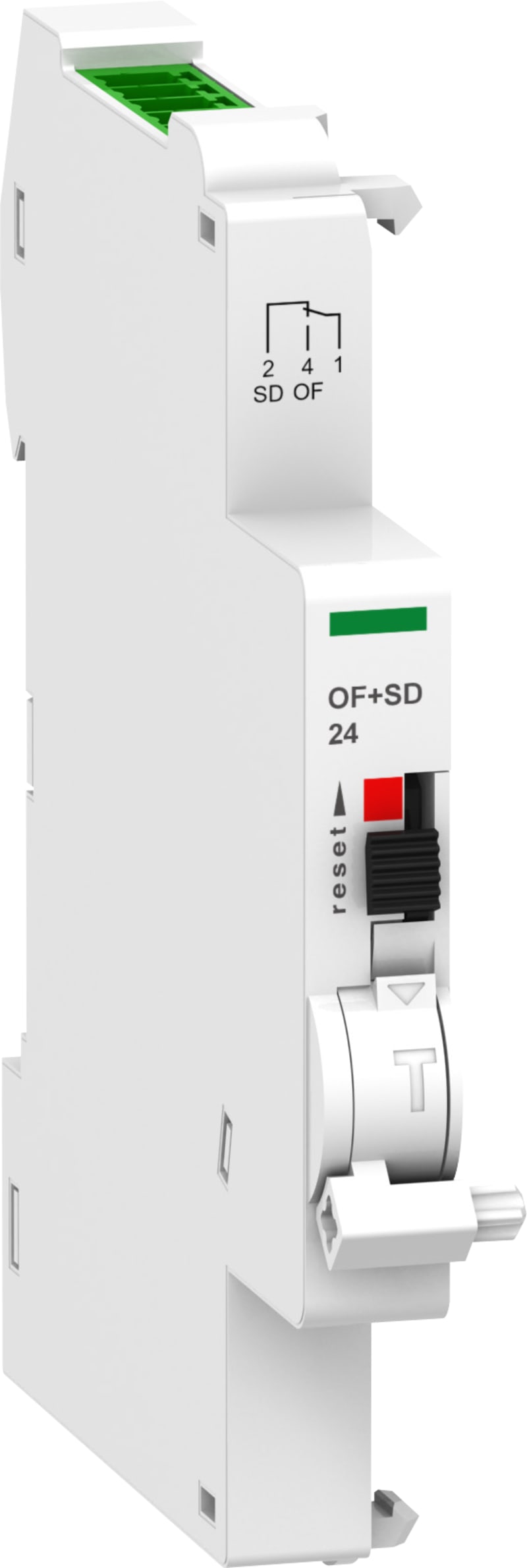

Schneider Electric Auxiliary contact, ACTI9 A9N, OF+SD, 1 NO + 1 NC, 2MA to 100MA, 24VDC, TI24 connector on top (sold separately) A9N26899

Schneider Electric A9N26899 Hj+al.kont OF+SD24 NO+NC 24VDC.

Manufacturer part number (MPN)

A9N26899

EAN / GTIN

3606480465376

Sales unit

pcs

Package quantity

12 pcs

Voltage

24 V DC

Contact configuration

NO + NC

range of product

Acti9

Product or component type

OC and fault contact

Device short name

OF+SD 24

Device application

For Smartlink interface

Signal contacts composition

1 NO + 1 NC

[In] rated current

DC-12 2…100 mA at 24 V, DC +/- 20 %

9 mm pitches

1

Standards

IEC 60947-5-4; IEC 60947-5-1

Quality labels

CE

Range compatibility

Acti9 DPN Vigi; Acti9 RCCB-ID 125A; Acti9 connectors Ti24; Acti9 C60H-DC; Acti9 C60PV-DC; Acti9 C40; Acti9 ID C40; Acti9 C120; Acti9 DT40; Acti9 DT60; Acti9 IDc; Acti9 C120NA-DC; Acti9 DPN; Acti9 iDPN; Acti9 ITG40; Acti9 SW60-DC; Acti9 C60NA-DC

[Ui] rated insulation voltage

500 V conforming to IEC 60664-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60664-1

Local signalling

Mechanical indicator

mounting mode

Fixed

Mounting support

DIN rail

Comb busbar and distribution block compatibility

Bottom: YES

Height

85.5 mm

Width

9 mm

Depth

73.5 mm

Product weight

28 g

Colour

White

Electrical durability

20000 cycles conforming to IEC 60947-5-4

Connections - terminals

Spring-loaded terminal Ti24 (top): 1 cable(s) 0.5…1.5 mm² - rigid; Spring-loaded terminal Ti24 (top): 1 cable(s) 0.5…1.5 mm² - flexible

Wire stripping length

10 mm

Pollution degree

2 conforming to IEC 60664-1

Overvoltage category

III

Tropicalisation

2 conforming to IEC 60947-5-1

Relative humidity

93 % at 40 °C

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Warranty (in months)

18

Function

Auxiliary switch/fault-signal switch

Voltage type

DC

Rated voltage

24 V

Installed at the factory

No

Width in number of modular spacings

0.5

Rated switch current

0.1 A

Number of fault-signal switches

1

Device fitting

Earth leakage circuit breaker and miniature circuit breaker (MCB)

Additional equipment

Auxiliary switch/fault-signal switch

Voltage type for actuating

DC

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

4

Suitable for max. current main contact unit

125 A

Country of origin

Belgium

HS Code

8536.30

• EAN 3606480465376
• SAP 1000419383
• Code 8503113
