Shelf 480X290MM (NSYFXT6040)
Pricing
Request a quote
We reply within 24 hours
Product Description

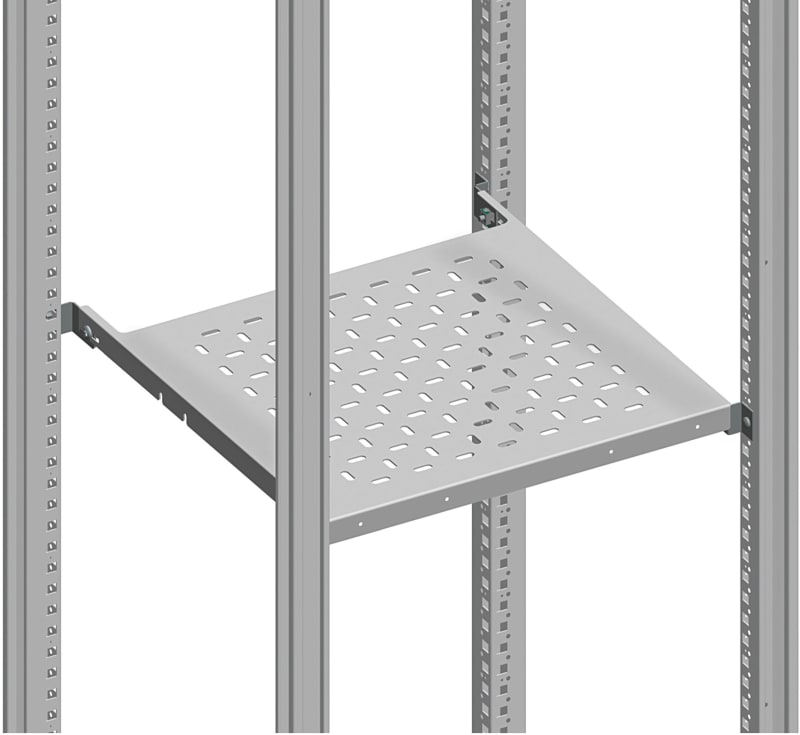

Schneider Electric NSYFXT6040 Shelf 480X290mm.
Technical Specifications
- Manufacturer part number (MPN)
- NSYFXT6040
- EAN / GTIN
- 3606480064494
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Installation accessory
- Product or component type
- Fixed tray
- Application
- Multi-purpose
- For enclosure nominal dimensions
- - W: 600 mm D: 400 mm
- Mounting support
- Direct to the structure; 40 mm cross rails
- Range compatibility
- PanelSeT PanelSeT SF; PanelSeT PanelSeT SM
- Device composition
- 1 fixed tray; fixing elements
- Quantity per set
- Set of 1
- Material
- Steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Adjustment
- Adjustable in depth every 25 mm
- Maximum load
- 150 kg evenly distributed
- Height
- 30 mm
- Width
- 482 mm
- Depth
- 290 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 49.000 cm
- Package 1 Width
- 31.000 cm
- Package 1 Length
- 3.000 cm
- Package 1 Weight
- 2.362 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 60
- Package 2 Height
- 90.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 155.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Shelf
- Suitable for enclosure building width
- 600 mm
- Suitable for enclosure building depth
- 400 mm
- Max. load capacity
- 150 kg
- RAL-number
- 7035
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480064494
- SAP 1000089141
- Code 8913659
Product Documentation
