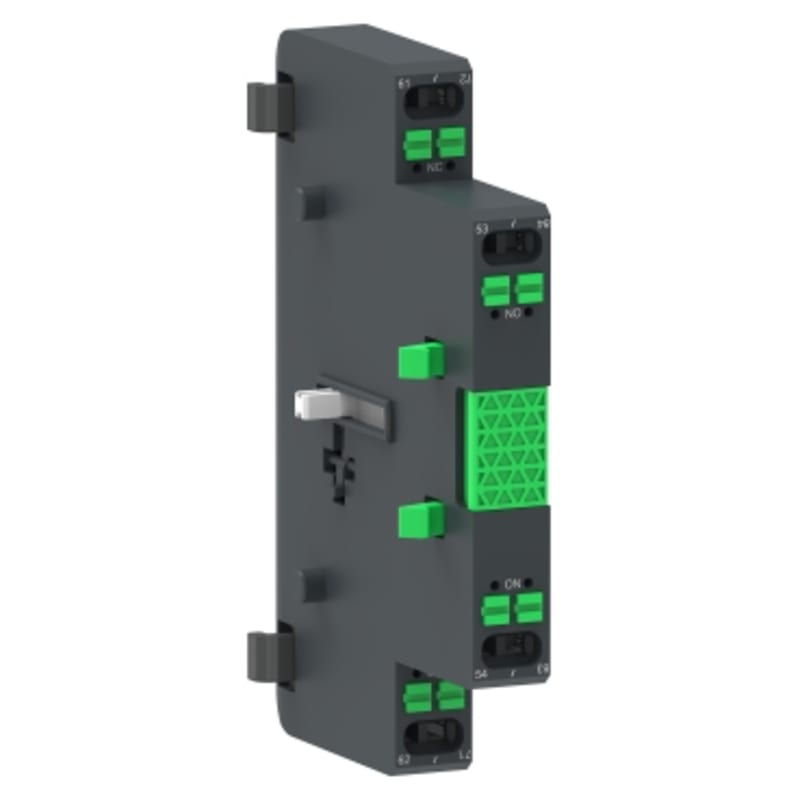

Auxiliary contact block 1NO+1NC spring

Schneider Electric LAG8N113 Auxiliary Contact Block for TeSys Giga, 1NO + 1NC, side mounting,spring terminals.

Manufacturer part number (MPN)

LAG8N113 EAN / GTIN: 3606481916310 Sales unit: pcs Package quantity: 64 pcs Contact configuration: 1 NO + 1 NC Range compatibility: TeSys G LC1G Range of product: TeSys G Range: TeSys Device short name: LAG8N Product or component type: Auxiliary contact block Auxiliary contacts operation: Instantaneous Pole contact composition: 1 NO + 1 NC Connections - terminals: Screw clamp terminals0.75…2.5 mm²solid stranded without cable end; Screw clamp terminals0.75…2.5 mm²flexible with cable end Mounting location: Side [Ui] rated insulation voltage: 600 V conforming to IEC 60947-5-1; 600 V - certifications CSA; 600 V - certifications UL [Ue] rated operational voltage: 600 V AC 25...400 Hz [Ith] conventional free air thermal current: 10 A (at 60 °C) Irms rated making capacity: 140 A AC conforming to IEC 60947-5-1; 250 A DC conforming to IEC 60947-5-1 Permissible short-time rating: 100 A 60 °C 1 s; 120 A 60 °C 500 ms; 140 A 60 °C 100 ms Protection type: GG fuse 10 A Mechanical durability: 8 Mcycles minimum switching current: 1 mA minimum switching voltage: 17 V Non-overlap time: 1.5 ms on de-energisation no overlap between NC and NO contact; 1.5 ms on energisation no overlap between NC and NO contact Insulation resistance: > 10 MOhm Height: 55.8 mm Width: 15.4 mm Depth: 84.8 mm Product weight: 0.05 kg Standards: EN/IEC 60947-5-1; UL 60947-5-1; CSA C22.2 No 60947-5-1; GB 14048.5; IEC 60335-1:Clause 30.2; IEC 60335-2-40:Annex JJ; UL 60335-1; UL 60335-2-40:Annex JJ Product certifications: CB Scheme; CCC; cULus; CE; UKCA IP degree of protection: IP20 conforming to IEC 60529 Protective treatment: TH Ambient air temperature for operation: -25…60 °C Ambient air temperature for storage: -60…80 °C Operating altitude: 3000 m Number of Units in Package 1: 1 Number of Units in Package 2: 64 Country of origin: CN Warranty (in months): 18

HS Code

8538.90

• EAN 3606481916310
• SAP 1200587817
• Code 82996972
