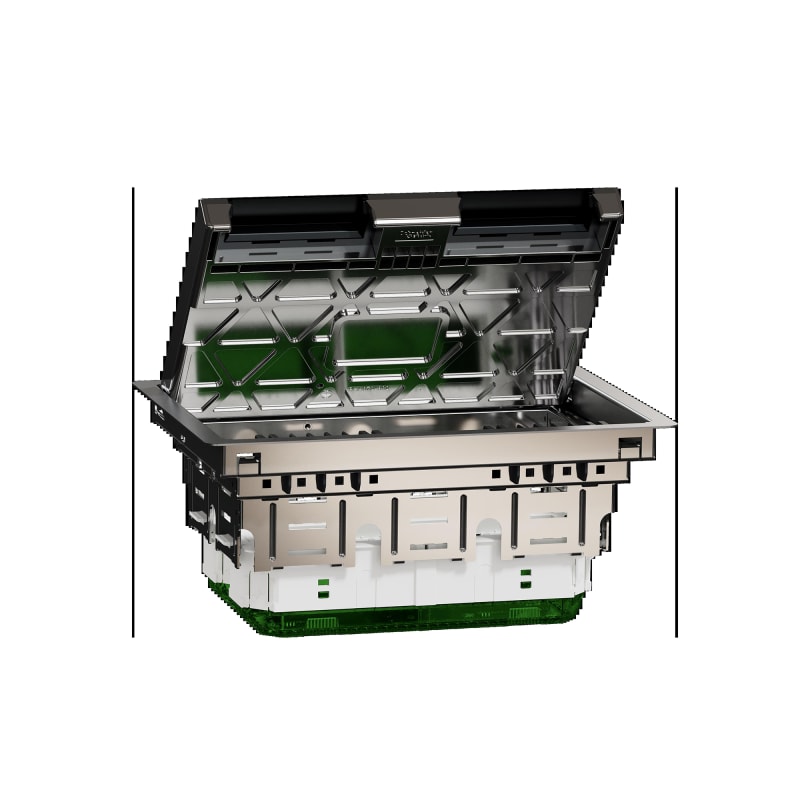

Schneider Electric Unica system+, Floorbox L, Metal, IP24, 2X8MOD INS52125
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric INS52125 Floor Box L IP 20 - 8 x modules (45 x 45) - metal.
Technical Specifications
- Manufacturer part number (MPN)
- INS52125
- EAN / GTIN
- 3606489818999
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Range
- Unica
- product type
- Floor outlet box
- Device application
- Power socket distribution
- Cabling installation system
- Floor outlet box
- Type of floor
- Raised floor; In-cavity floor; Hollow core floor
- Floor box shape
- Rectangular
- colour
- Grey
- Device presentation
- Complete product
- Product compatibility
- Unica outlet - 45 mm x 45 mm; Unica outlet - 45 mm x 90 mm
- Size
- Housing: L
- Device mounting
- Floor mounted
- fixing mode
- Snap-fitted; Strain relief
- Number of devices ( 45 x 45 mm)
- 8
- Number of modules
- 2 x 8 modules
- product material
- Metal brushed finish
- Height
- 82 mm
- Width
- 200 mm
- Depth
- 275 mm
- IK degree of protection
- IK09
- IP degree of protection
- IP24
- Market segment
- Commercial; Office; School
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 3
- Number of Units in Package 3
- 24
- Warranty (in months)
- 18
- Degree of protection (IP)
- IP24
- Min. height finishing layer
- 70 mm
- Levelling range
- 70–109 mm
- Suitable for subfloor duct countersunk (closed)
- Yes
- Suitable for subfloor duct overhead closed
- No
- Duct height
- 28–38 mm
- Duct width
- 150 mm
- Built-in opening for floor column
- No
- Built-in opening for built-in unit
- Rectangular
- Material side wall
- Metal fabric
- Decoupling possibility cover from base unit
- Yes
- Nominal dimension
- 200 mm
- Number of appliances to build in
- 8
- Bottom plate
- No
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 3606489818999
- SAP 1200508855
- Code 82643726
