Schneider Electric Residual current circuit breaker (RCCB), ACTI9 iID, 4P, 40A, B-SI type, 300MA, double terminal A9Z64440
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9Z64440 Residual current circuit breaker Acti9 iID 4P 40A 300mA B-SI RCCB.
Technical Specifications
- Manufacturer part number (MPN)
- A9Z64440
- EAN / GTIN
- 3606489502829
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 27 pcs
- Rated current
- 40 A
- Number of poles
- 4P
- Range
- Acti9
- Product name
- Acti9 iID
- Product or component type
- Residual current circuit breaker (RCCB)
- Device short name
- iID
- Device application
- Photovoltaic; 3P speed drive; Lift
- Poles description
- 4P
- Neutral position
- Left
- [In] rated current
- 40 A
- Network type
- AC
- Earth-leakage sensitivity
- 300 mA
- Earth-leakage protection time delay
- Instantaneous
- Earth-leakage protection class
- Type B-SI (Super Immunised)
- Quality labels
- VDE; NF; IMQ; KEMA
- Device location in system
- Outgoer; Group incomer
- Network frequency
- 50 Hz
- [Ue] rated operational voltage
- 400 V AC 50 Hz
- Residual current tripping technology
- Voltage independent
- Rated breaking and making capacity
- Idm 1500 A; Im 1500 A
- Rated conditional short-circuit current
- 10 kA
- [Ui] rated insulation voltage
- 500 V
- [Uimp] rated impulse withstand voltage
- 6 kV
- Contact position indicator
- Yes
- Control type
- Toggle
- Local signalling
- ON/OFF indication; LED (green) for presence of voltage; Trip indicator
- mounting mode
- Clip-on
- Mounting support
- 35 mm DIN rail
- 9 mm pitches
- 8
- Height
- 88 mm
- Width
- 72 mm
- Depth
- 73 mm
- Product weight
- 415 g
- Colour
- White (RAL 9003)
- Mechanical durability
- 20000 cycles
- Electrical durability
- 15000 cycles
- Locking options description
- Padlocking device
- Connections - terminals
- Double terminal front 1…35 mm² rigid; Double terminal front 1…25 mm² flexible; Double terminal front 1…25 mm² flexible with ferrule; Double terminal back 1…25 mm² rigid; Double terminal back 1…16 mm² flexible; Double terminal back 1…16 mm² flexible with ferrule
- Wire stripping length
- 14 mm for top or bottom connection
- Tightening torque
- 3.5 N.m top or bottom
- Standards
- EN/IEC 61008-1; EN/IEC 61008-2-1; IEC/EN 62423
- Product certifications
- CCC
- IP degree of protection
- IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529
- IK degree of protection
- IK05
- Pollution degree
- 3
- Overvoltage category
- IV
- Electromagnetic compatibility
- 8/20 µs impulse withstand, 3 kA conforming to EN/IEC 61008-1
- Operating altitude
- 0...2000 m
- Ambient air temperature for operation
- -25…60 °C
- Ambient air temperature for storage
- -40…85 °C
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606489502829
- SAP 1200193747
- Code 82124719
Product Documentation
More from Schneider Electric
Schneider Electric
Linergy FC(Polypact) with fixed connection 4P P
LVS04404
Schneider Electric

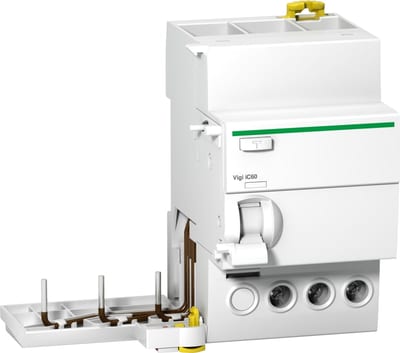

VIGI IC60 3P 63A 30MA SI
