Push-Button Station 3 Buttons

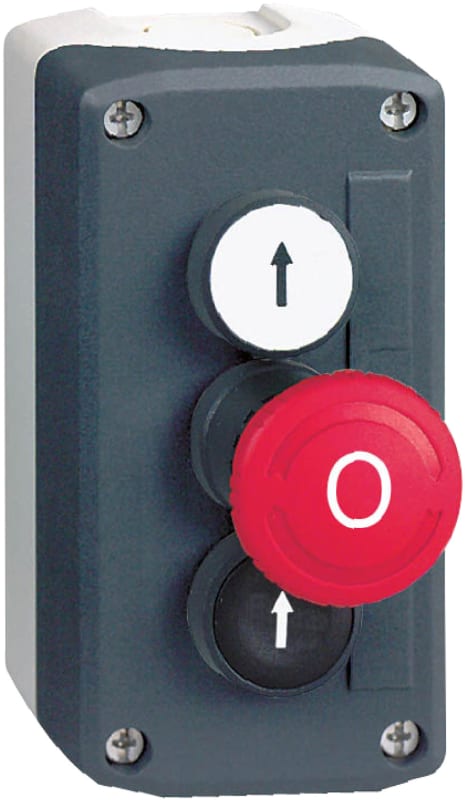

Schneider Electric XALD328 — Control station, plastic, dark grey lid, 2 flush push buttons Ø22, marked UP ARROW / DOWN ARROW, 1 red mushroom Ø30.

Manufacturer part number (MPN)

XALD328

EAN / GTIN

3389110114621

Sales unit

pcs

Package quantity

25 pcs

Range of product

Harmony XALD

Product or component type

Complete control station

Device short name

XALD

Product destination

For XB5 Ø 22 mm control and signalling units

Control station application

Three functions

Colour of base of enclosure

Light grey (RAL 7035)

Colour of cover

Dark grey (RAL 7016)

Material

Polycarbonate

Operator profile

1 flush - 1 latching mushroom head - 1 flush push-buttons

Operators description

White ''up arrow'' 1 NO - red ''O'' 1 NC - black ''down arrow'' 1 NO

Control station composition

1 flush push-button, black 1 NO, white down arrow marking; 1 flush push-button, white 1 NO, black up arrow marking; 1 mushroom head Ø 30 mm push-button, red 1 NC O marking

Marking location

Marking on push-button

Contact operation

Slow-break

AC control voltage 50 HZ

120…600 V

Cable entry

2 knock-outs for cable entry, clamping capacity: 14 mm; 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm

AC control voltage 60 HZ

120…600 V

Product weight

0.317 kg

DC control voltage

125…600 V

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Number of command positions

3

Number of indicator lights

0

Colour of marking

Black marking when white caps; White marking when green, red or black caps

Number of push buttons

2

Positive opening

With conforming to IEC 60947-5-1 appendix K

Operating travel

1.5 mm (NC changing electrical state); 2.6 mm (NO changing electrical state); 4.3 mm (total travel)

Operating force

3.5 N NC changing electrical state; 3.8 N NO changing electrical state

Mechanical durability

5000000 cycles

Number of selector switches

0

Connections - terminals

Screw clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1

Tightening torque

0.8…1.2 N.m conforming to IEC 60947-1

Number of key switches

0

Shape of screw head

Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1

[Ith] conventional free air thermal current

10 A conforming to IEC 60947-5-1

[Ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

Number of mushroom-shaped push-buttons

1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

[Ie] rated operational current

6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1; 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1; 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1; 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Electrical reliability

Λ < 10exp(-6) at 5 V and 1 mA conforming to IEC 60947-5-4; Λ < 10exp(-8) at 17 V and 5 mA conforming to IEC 60947-5-4

Emergency power off

No

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

2

Number of contacts as change-over contact

0

Housing material

Plastic

Housing colour

Grey

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Electrical shock protection class

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP69; IP69K

NEMA degree of protection

NEMA 13; NEMA 4X

IK degree of protection

IK03 conforming to IEC 62262

Standards

IEC 60947-5-4; IEC 60947-1; UL 508; JIS C8201-5-1; IEC 60947-5-5; IEC 60947-5-1; CSA C22.2 No 14; JIS C8201-1

Vibration resistance

5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

7.000 cm

Package 1 Width

9.800 cm

Package 1 Length

14.200 cm

Package 1 Weight

306.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

25

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

8.262 kg

Country of origin

FR

Warranty (in months)

18

Power consumption

0.006 W

Ex-class

None

Colour housing cover

Grey

Degree of protection (IP)

IP66

For Ex-zone gas

None

For Ex-zone dust

None

HS Code

8536.50
