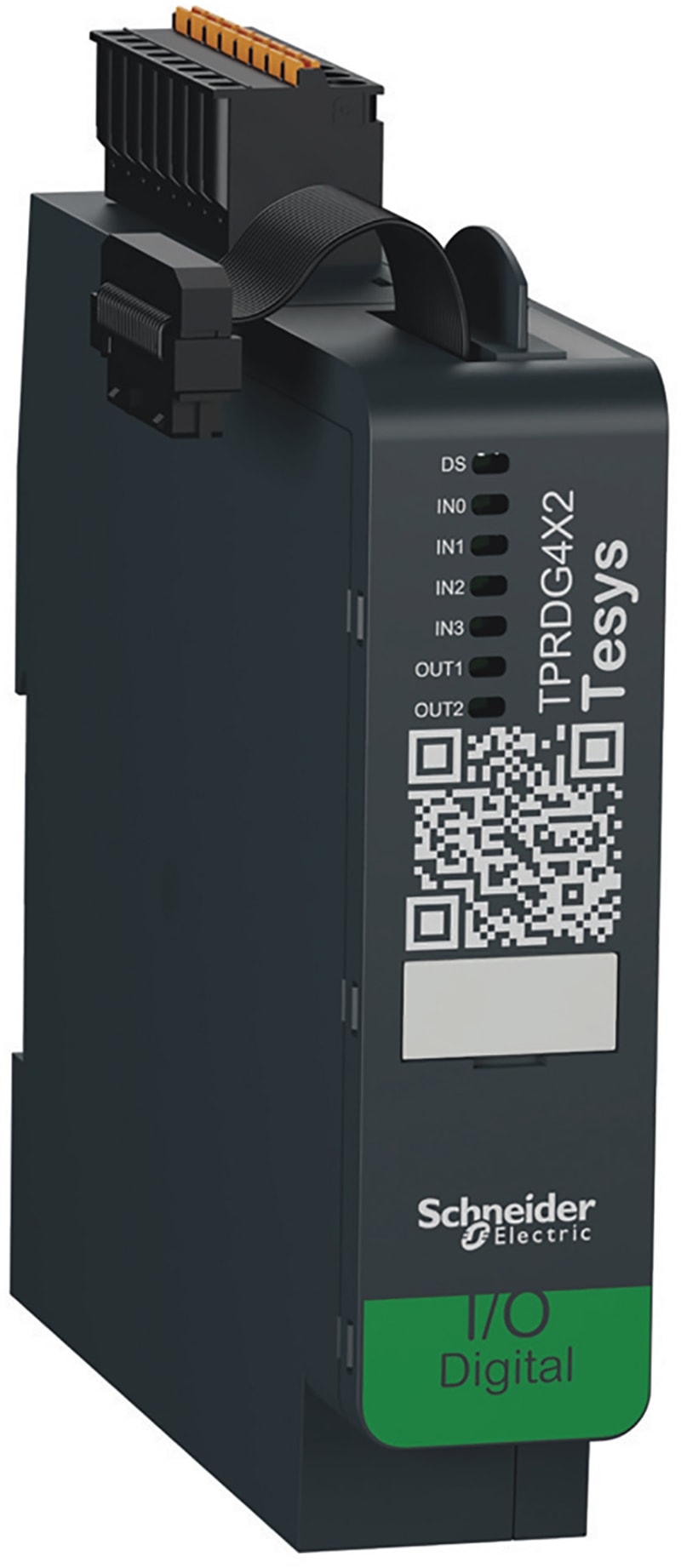

Schneider Electric TPRDG4X2 Digital IO module, TeSys island, 4 inputs, 2 outputs

Schneider Electric TPRDG4X2 Digital IO module, TeSys island, 4 inputs, 2 outputs is listed under Control & Automation / I/O Modules. Sales unit: pcs; Package quantity: 16 pcs; Range: TeSys; Product name: TeSys island; Device short name: TPRDG; Product or component type: Digital IO module.

Manufacturer part number (MPN)

TPRDG4X2

EAN / GTIN

3606489832896

Sales unit

pcs

Package quantity

16 pcs

Range

TeSys

Product name

TeSys island

Device short name

TPRDG

Product or component type

Digital IO module

Device presentation

IO module providing 4 digital inputs and 2 digital outputs; Enabling advanced control functions in a TeSys island system; Control of third parties power devices when associated to a TPRPM power module; Operational only when connected to a bus coupler TPRBC

Function of module

Control of 4 sink/source digital inputs with common point; Control of 2 sink/source digital outputs with common point

Product compatibility

TPRBC bus coupler; TPRPM power module

Discrete input number

4 isolated with common point conforming to IEC 61131-2 Type 1

Discrete input voltage

24 V DC (voltage limits: 19.2...28.8 V)

Discrete input current

7 mA at 24 V

Input impedance

3.43 kOhm

Discrete input logic

Positive or negative, 0...5 V (state 0), 15...28.8 V (state 1)

Discrete output number

2 isolated with common point

Discrete output logic

Source or sink

Discrete output voltage

24 V DC (voltage limit: 19.2...28.8 V)

Discrete output current

0.5 A maximum

Protection type

1 external fuse, 0.5 A fast fuse for each output

Response time

5 ms at 24 V for digital input; 5 ms at 24 V for digital output

Local signalling

1 LED (green/red) for DS (device status); 1 LED (green) for I0 (input 1 status); 1 LED (green) for I1 (input 2 status); 1 LED (green) for I2 (input 3 status); 1 LED (green) for I3 (input 4 status); 1 LED (green) for Q0 (output 1 status); 1 LED (green) for Q1 (output 2 status)

[Us] rated supply voltage

24 V DC supplied by the bus coupler

Current consumption

10 mA

Power dissipation in W

0.5 W maximum

[Uimp] rated impulse withstand voltage

0.5 kV conforming to IEC 61010-1

Standards

IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201

Product certifications

UL; EAC (pending); CSA

Mounting mode

Horizontal and vertical (35 mm symmetrical rail)

Connections - terminals

Input/output circuit: removable spring terminal block 8 cable(s) 0.2…2.5 mm² (24 AWG...14 AWG) rigid; Input/output circuit: removable spring terminal block 8 cable(s) 0.2…2.5 mm² (24 AWG...14 AWG) flexible without cable end; Input/output circuit: removable spring terminal block 8 cable(s) 0.25…2.5 mm² (22 AWG...14 AWG) flexible with cable end

Width

25 mm

Height

118 mm

Depth

114 mm

Product weight

0.136 kg

Ambient air temperature for storage

-25…70 °C

Ambient air temperature for operation

-10…60 °C

Relative humidity

5…95 %

Operating altitude

0...2000 m without derating

IP degree of protection

IP20

Pollution degree

2

Protective treatment

TC

Fire resistance

960 °C conforming to UL 94

Shock resistance

15 gn (duration = 11 ms) conforming to IEC 60068-2-27

Vibration resistance

1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6; 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6

Electromagnetic compatibility

Electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2; Radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3; Fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4; Surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.5 cm

Package 1 Width

13.5 cm

Package 1 Length

15.5 cm

Package 1 Weight

244.0 g

Unit Type of Package 2

S03

Number of Units in Package 2

16

Package 2 Height

30 cm

Package 2 Width

30 cm

Package 2 Length

40 cm

Package 2 Weight

4.684 kg

Country of origin

ID

Warranty (in months)

18

Supporting protocol for EtherCAT

No

Voltage type (supply voltage)

DC

Number of digital inputs

4

Number of digital outputs

2

Digital inputs configurable

Yes

Digital outputs configurable

Yes

Input current at signal 1

7 mA

Type of voltage (input voltage)

DC

Output current

0.5 A

Type of output voltage

DC

Short-circuit protection, outputs available

No

Number of HW-interfaces other

2

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

Yes

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

Degree of protection (IP)

IP20

Type of electric connection

Plug-in connection

Fieldbus connection over separate bus coupler possible

Yes

Suitable for rail mounting

Yes

Wall mounting/direct mounting

No

Front built-in possible

No

Rack-assembly possible

No

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

HS Code

9028.30

• EAN 3606489832896
• SAP 1200395717
• Code 82424133
