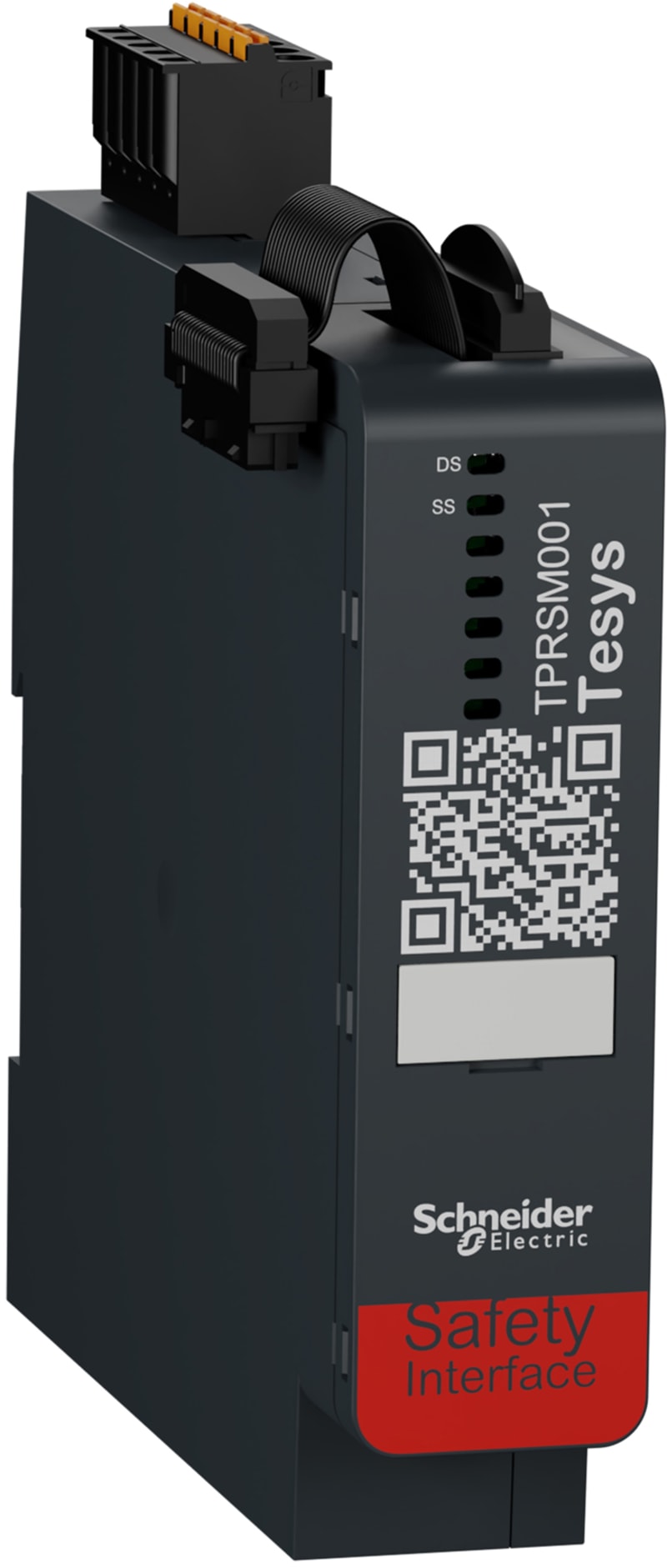

Schneider Electric SIL interface module, TeSys island TPRSM001

Schneider Electric TPRSM001 — SIL interface module, TeSys island.

Manufacturer part number (MPN)

TPRSM001

EAN / GTIN

3606489832872

Sales unit

pcs

Package quantity

16 pcs

Range

TeSys

Product name

TeSys island

Device short name

TPRSM

Product or component type

SIL interface module

Device presentation

Implementation of a safe stop function for SIL motor starters TPRSS; Safe stop operable for safety-related system conforming to ISO 13849-1; Operational only when connected to a bus coupler TPRBC

Function of module

Safe stop with 1NC or 2NC contacts monitoring

Product compatibility

TPRBC bus coupler; TPRSS SIL motor starter

[Ue] rated operational voltage

Input/output circuit: 24 V DC

[Ui] rated insulation voltage

Input/output circuit: 50 V

[Uimp] rated impulse withstand voltage

2 kV for input/output circuit conforming to IEC 60947-1

Overvoltage category

III

Input type

Isolated switching input for safe stop

Input protection type

Internal, electronic

Input voltage

15...28.8 V DC state 1; 0...5 V DC state 0

Output type

Relay instantaneous opening, 1 NO circuit(s), potential free

Output thermal current

8 A for relay output

Protection type

External fuse, 8 A gG fuse for relay output

Local signalling

1 LED (green/red) for DS (device status); 1 LED (green/red) for SS (safe stop status)

[Us] rated supply voltage

24 V DC supplied by the bus coupler

Current consumption

10 mA

Power dissipation in W

0.7 W maximum

Safety function

Safe stop: category 0 conforming to IEC 60204-1; Safe stop: category 1 conforming to IEC 60204-1

Safety integrity level

SIL 2 conforming to IEC 61508 in single channel system architecture; SILCL 2 conforming to IEC 62061 in single channel system architecture; PL = d category 2 conforming to ISO 13849-1 in single channel system architecture

Standards

UL 60947-5-1; IEC 60947-5-1

Product certifications

EAC (pending); UL; CSA

Mounting mode

Horizontal and vertical (35 mm symmetrical rail)

Connections - terminals

Control circuit: removable spring terminal block 5 cable(s) 0.2…2.5 mm² (24 AWG...14 AWG) rigid; Control circuit: removable spring terminal block 5 cable(s) 0.2…2.5 mm² (24 AWG...14 AWG) flexible without cable end; Control circuit: removable spring terminal block 5 cable(s) 0.25…2.5 mm² (22 AWG...14 AWG) flexible with cable end

Width

25 mm

Height

118 mm

Depth

114 mm

Product weight

0.159 kg

Ambient air temperature for storage

-25…70 °C

Ambient air temperature for operation

-10…60 °C

Relative humidity

5…95 %

Operating altitude

0...2000 m without derating

IP degree of protection

IP20

Pollution degree

2

Protective treatment

TC

Fire resistance

960 °C conforming to UL 94

Shock resistance

15 gn (duration = 11 ms) conforming to IEC 60068-2-27

Vibration resistance

1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6; 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6

Electromagnetic compatibility

Electrostatic discharge, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2; Radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3; Fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4; Surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.500 cm

Package 1 Width

13.500 cm

Package 1 Length

15.500 cm

Package 1 Weight

270.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

16

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

5.019 kg

Country of origin

ID

Warranty (in months)

18

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Voltage type (supply voltage)

DC

Number of functions

1

Number of HW-interfaces other

2

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

Yes

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

Suitable for counting

No

Suitable for weighing

No

Suitable for temperature control

No

Suitable for welding control

No

Suitable for pressure control

No

Suitable for NC

No

Suitable for electronic positioning

No

Suitable for CNC

No

Suitable for SSI

No

Suitable for incremental data detection

No

Suitable for detection absolute value

No

Suitable for flux controller

No

Suitable for flux measurement

No

Suitable for path controller

No

Suitable for cam controller

No

Suitable for multi-axis control

No

HS Code

8538.90
