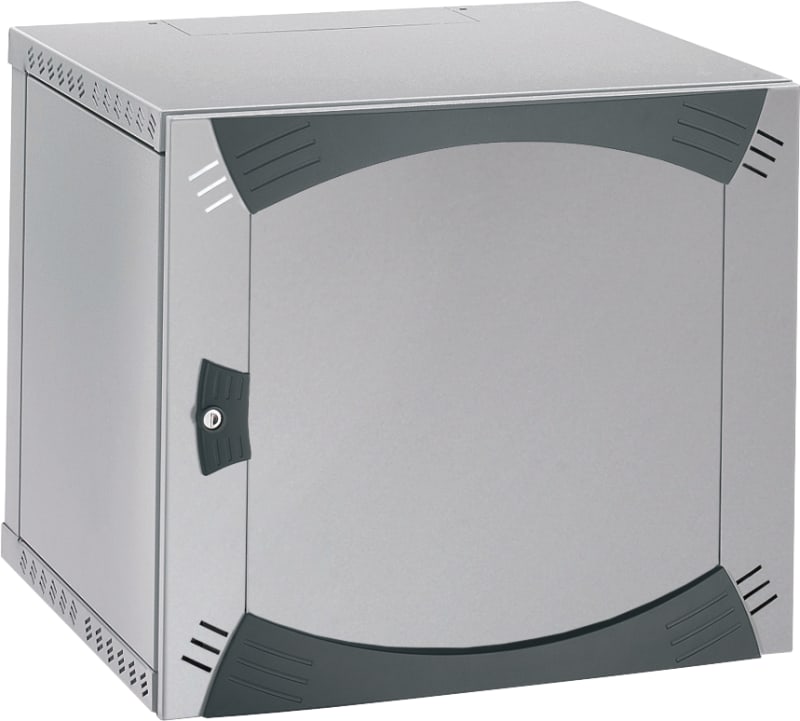

Schneider Electric Actassi OPB Wall-Mount 19-inch Cabinet 15U, W600 D500, Plain Door

Fifteen-rack-unit wall-mounted open-box 19-inch cabinet from the Actassi OPB range, 600 mm wide by 500 mm deep with a light-grey (RAL 7035) plain steel front door with 333-key locking. Two fixed 19-inch uprights recessed 120 mm from the front support network and structured cabling equipment up to 50 kg static load. IP20 and IK10 rated with front, side and rear accessibility for network cabinets in offices and MDF or IDF rooms.

Manufacturer part number (MPN)

NSYOPB15U5FR

EAN / GTIN

3606480287633

Sales unit

pcs

Package quantity

4 pcs

Range

Actassi

Product name

Actassi OPB

Product or component type

19" enclosure

Device application

Cabling

applications

To protect network connectivity equipment; To mount 19" equipment; To improve security of the equipment

enclosure type

Open box

support equipment

2 x fixed 19" uprights recessed of 120 mm from the front (pitch 25 mm)

front face

Plain door

Door type

Front plain door - with 1 point locking system (key: 333) - reversible opening at 180 °

Accessibility for operation

Front; Side; Rear

Removable parts

Front door removable toolless; Top blanking plate; Bottom blanking plate; Rear blanking plate; Side panels removable toolless

colour

Light grey (RAL 7035)

Device composition

3 x cable entries; 2 x panels side; 2 x 19" uprights front; 1 x open structure; 1 x plain door front

load rating

50 kg static; 3 kg by unit

back face

Cut-out

side face

Panel

Number of cut-out

1 cut-outside; 1 cut-outbottom; 1 cut-outtop

installation mode

Wall mounted

Material

Sheet steel: structure; Sheet steel: door; Galvanized steel: upright

Surface finish

Epoxy-polyester powder

Width

600 mm

Height

780 mm

Depth

500 mm

Product weight

27.5 kg

Number of rack unit

15U

Targeted region

Europe

IK degree of protection

IK10 conforming to IEC 62262

IP degree of protection

IP20 conforming to IEC 60529

Standards

EIA-310D; IEC 60297-3-100

Number of Units in Package 1

1

Number of Units in Package 2

4

Warranty (in months)

18

Mounting level

Front and rear

Model

With permanent frame

Type of profile rail

None

Number of doors

1

Type of ventilation

None

Number of height units

15

Max. load capacity

50 kg

With roof plate

Yes

With earthing

No

With front door

Yes

With sidewall

Yes

Demountable

Yes

Surface finishing

Powder coating

RAL-number

7035

Degree of protection (IP)

IP20

Country of origin

Romania

HS Code

9403.20
