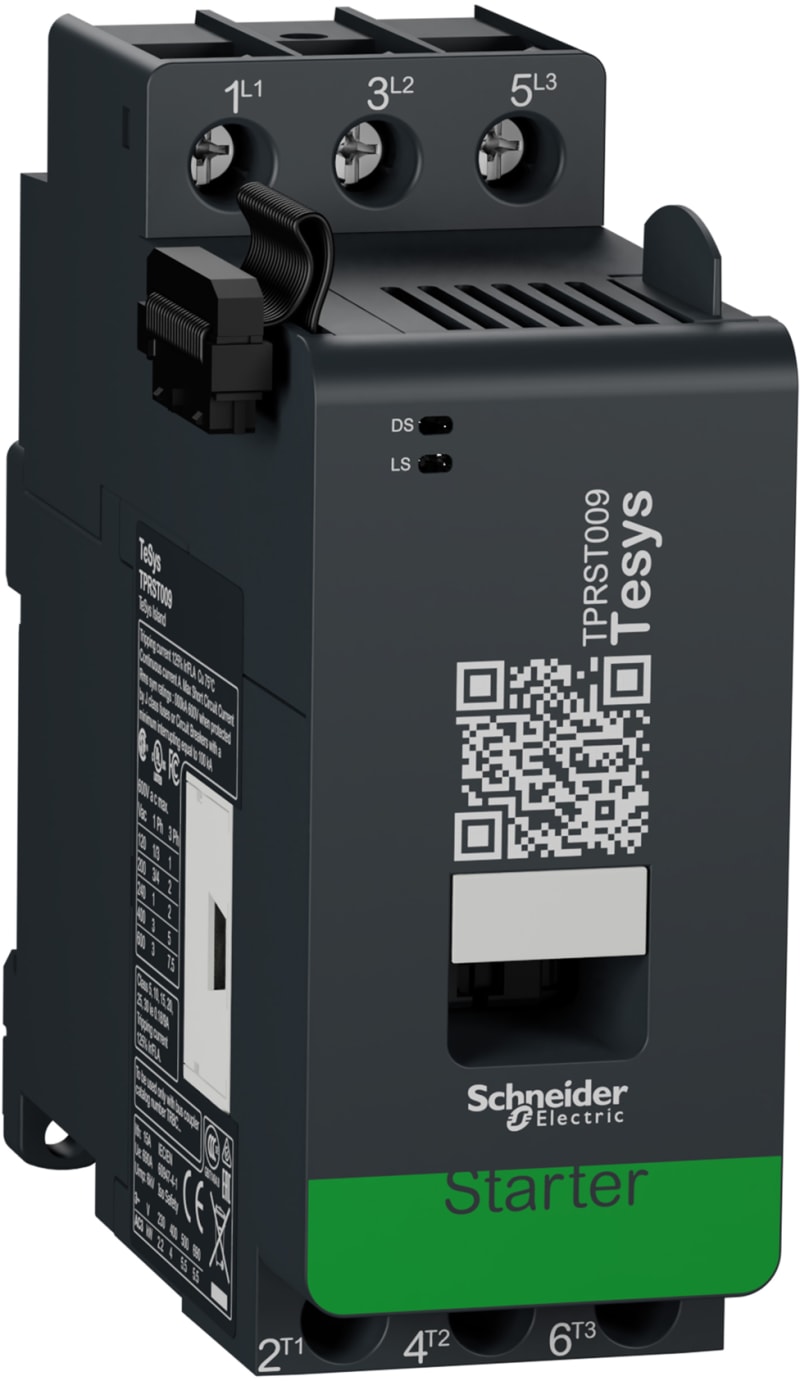

Schneider Electric Direct online starter, TeSys island, 15A AC-1, 9A AC-3, 4kW / 5hp TPRST009

Schneider Electric TPRST009 Direct starter TeSys island 15A AC-1, 9A AC-3, 4kW / 5hk.

Manufacturer part number (MPN)

TPRST009

EAN / GTIN

3606489832742

Sales unit

pcs

Package quantity

14 pcs

Power

4 kW

Rated current

9 A

Range

TeSys

Product name

TeSys island

Device short name

TPRST

Product or component type

Motor starter

Motor starter type

Direct on line

Device presentation

Direct starter connected to an automation controller through a bus coupler; Operational only when connected to a bus coupler

Function available

Upstream voltage presence detection; Electrical line and load protection; Power and energy monitoring when connected with TPRVM voltage module

Product compatibility

TPRBC bus coupler; TPRVM voltage interface module

Poles description

3P (3 NO)

Utilisation category

AC-1; AC-2; AC-3; AC-4; AC-3e

Motor power kW

2.2 kW at 230 V 50 Hz (AC-3); 4 kW at 380...415 V 50 Hz (AC-3); 4 kW at 440 V 50 Hz (AC-3); 5.5 kW at 500 V 50 Hz (AC-3); 5.5 kW at 690 V 50 Hz (AC-3)

motor power HP (UL / CSA)

0.33 hp at 120 V AC 60 Hz for 1 phase motors; 1 hp at 240 V AC 60 Hz for 1 phase motors; 2 hp at 208 V AC 60 Hz for 3 phases motors; 2 hp at 240 V AC 60 Hz for 3 phases motors; 5 hp at 480 V AC 60 Hz for 3 phases motors; 7.5 hp at 600 V AC 60 Hz for 3 phases motors

[Ue] rated operational voltage

<= 690 V AC 47...63 Hz

[Ie] rated operational current

9 A (at <50 °C) at <= 440 V AC-3; 15 A (at <50 °C) at <= 440 V AC-1

[Ith] conventional free air thermal current

15 A (at 50 °C)

[Ui] rated insulation voltage

690 V conforming to IEC 60947-4-1; 600 V conforming to UL 60947-4-1; 600 V conforming to CSA C22.2 No 60947-4-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Overvoltage category

III

Thermal protection adjustment range

0.18…9 A

Thermal overload class

Class 5…30

Reset

Remotely or automatically

Irms rated making capacity

250 A at 440 V conforming to IEC 60947

Rated breaking capacity

250 A at 440 V conforming to IEC 60947

[Icw] rated short-time withstand current

210 A 40 °C - 1 s; 105 A 40 °C - 10 s; 61 A 40 °C - 1 min; 30 A 40 °C - 10 min

Average impedance

2.5 mOhm - Ith 15 A 50 Hz

Power dissipation per pole

0.2 W AC-3 - Ith 9 A; 0.56 W AC-1 - Ith 15 A

[Uc] control circuit voltage

24 V DC supplied by the bus coupler

Current consumption

160 mA contactor sealed; 160 mA contactor closing

Power dissipation in W

3.5 W at Ie AC-3

Mechanical durability

30 Mcycles

Electrical durability

2 Mcycles 9 A AC-3 at Ue 440 V; 1.2 Mcycles 15 A AC-1 at Ue 440 V

Maximum operating rate

3600 cyc/mn AC-3

Operating time

< 100 ms closing; < 30 ms opening

Safety performance level

B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

Protection type

Thermal overload protection; Motor overheat; Overcurrent; Undercurrent; Jam; Long start; Stall; Rapid cycle lockout; Phase sequence; Rapid restart lockout; Phase reversal; Phase loss; Phase unbalance; Ground current

Monitoring type

Time device ON; Time device switch ON; Number of faults; Number of switching cycles; Number of device power cycles; Average current Iavg; Average voltage Vavg; Max current Imax; Max voltage Vmax; Active and reactive power with voltage module; Active and reactive energy with voltage module; True power factor with voltage module

Local signalling

1 LED (green/red) for DS (device status); 1 LED (green/red) for LS (load status)

Standards

EN/IEC 60947-1; EN/IEC 60947-4-1; UL 60947-4-1; CSA C22.2 No 60947-4-1

Product certifications

EAC; CSA; CCC; UL

Mounting mode

Horizontal and vertical (35 mm symmetrical DIN rail)

Connections - terminals

Screw-clamp terminals 1 cable(s) 1…4 mm² (16 AWG...12 AWG) rigid; Screw-clamp terminals 2 cable(s) 1…4 mm² (16 AWG...12 AWG) rigid; Screw-clamp terminals 1 cable(s) 1.5…4 mm² (16 AWG...12 AWG) flexible without cable end; Screw-clamp terminals 2 cable(s) 1.5…4 mm² (16 AWG...12 AWG) flexible without cable end; Screw-clamp terminals 1 cable(s) 1…4 mm² (16 AWG...12 AWG) flexible with cable end; Screw-clamp terminals 2 cable(s) 1…2.5 mm² (16 AWG...14 AWG) flexible with cable end

Tightening torque

1.7 N.m - with screwdriver flat Ø 6 mm; 1.7 N.m - with screwdriver Philips No 2

Width

45 mm

Height

116 mm

Depth

115 mm

Product weight

0.656 kg

Ambient air temperature for storage

-25…70 °C

Ambient air temperature for operation

-10…50 °C without derating; 50…60 °C with current derating

Relative humidity

5…95 %

Operating altitude

0...2000 m without derating

IP degree of protection

IP20

Pollution degree

2

Protective treatment

TC

Fire resistance

960 °C conforming to UL 94; 850 °C conforming to IEC 60695-2-1; 650 °C conforming to IEC 60695-2-12

Shock resistance

15 gn (duration = 11 ms) conforming to IEC 60068-2-27

Vibration resistance

1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6; 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6

Electromagnetic compatibility

Electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2; Radiated RF field immunity test, level 3, 10 V/m, conforming to EN/IEC 61000-4-3; Fast transient immunity test, level 4, 4 kV, conforming to EN/IEC 61000-4-4; Surge immunity test (differential mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5; Surge immunity test (common mode), level 4, 4 kV, conforming to EN/IEC 61000-4-5; Conducted RF disturbance immunity test, 20 V, conforming to EN/IEC 61000-4-6

Country of origin

FR

Warranty (in months)

18

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

20.4–28.8 V

Voltage type (supply voltage)

DC

Number of inputs

1

Permitted voltage at input

0–690 V

Type of voltage (input voltage)

AC

Type of digital output

None

Permitted voltage at output

0–690 V

Type of output voltage

AC

Short-circuit protection, outputs available

No

Number of motor outlets

1

Rated operation current of the motor

0.18–9 A

With motor current parameter setting

No

Type of electrical connection at the motor output

Screw connection

With brake output

No

With thermal motor protection

Yes

Number of HW-interfaces other

2

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

Yes

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

HS Code

8536.50
