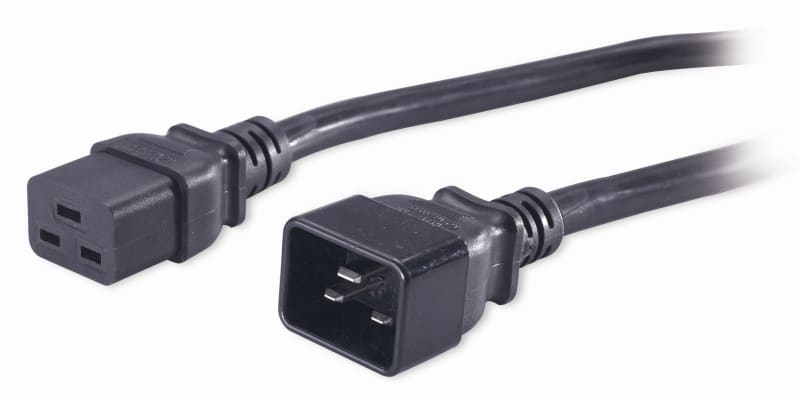

Schneider Electric Power Cord, C19 to C20, 2.0M AP9877

Schneider Electric AP9877 Spare parts / accessories.

Manufacturer part number (MPN)

AP9877

EAN / GTIN

0731304198765

Sales unit

pcs

Package quantity

10 pcs

Product or component type

Power cord

Input Connection Type

IEC 60320 C20

Cable length

1.98 m

Number of cables

1

Colour

Black

Product weight

0.36 kg

Mounting preference

No preference

mounting mode

Not rack-mountable

Max line current

20 A

Input current limits

20 A

Max current draw

20 A

Number of power socket outlets

1 IEC 60320 C19

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

30.5 cm

Package 1 Width

10.2 cm

Package 1 Length

10.2 cm

Package 1 Weight

0.459 kg

Unit Type of Package 2

CAR

Number of Units in Package 2

5

Package 2 Height

23.6 cm

Package 2 Width

32.9 cm

Package 2 Length

53.1 cm

Package 2 Weight

3.17 kg

Unit Type of Package 3

PAL

Number of Units in Package 3

5

Package 3 Height

143.99 cm

Package 3 Width

100 cm

Package 3 Length

120 cm

Package 3 Weight

3.17 kg

Country of origin

CN

Warranty (in months)

24

Cable entry connection 1

Angled

Cable entry connection 2

Angled

System-oriented connector system

Yes

Number of cores

1

Length

2 m

Material outer sheath

None

Temperature resistance

90 °C

Nominal voltage

230 V

Nominal current

20 A

Frequency

50–60 Hz

Colour outer sheath

Black

Spiralized cable

No

With protective conductor

No

Oil resistant according to EN IEC 60811-404

Yes

With cord switch

No

Reaction-to-fire according to EN 13501-6

Class: None

HS Code

8544.42

• EAN 0731304198765
• SAP 1000577535
• Code 81101705
