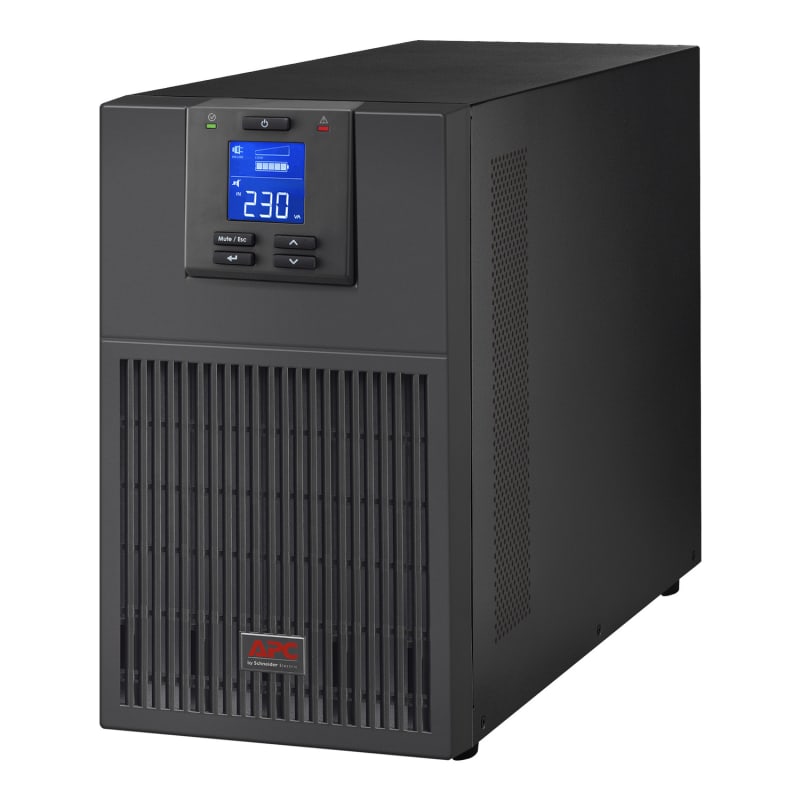

Schneider Electric SRVPM10KIL APC Easy UPS SRV 10 kVA/10 kW, 230 V, Tower
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric APC Easy UPS SRV SRVPM10KIL is a 10 kVA / 10 kW online double-conversion tower UPS with a 230 V single-phase input and output. It is supplied without internal batteries and offers a hard-wired 3-wire output, LCD status console, a SmartSlot for network management cards and serial and USB service ports. Designed for protecting server rooms, network cabinets and light industrial loads that require true on-line performance.
Technical Specifications
- Manufacturer part number (MPN)
- SRVPM10KIL
- EAN / GTIN
- 0731304343400
- Sales unit
- pcs
- Voltage
- 230 V
- Main input voltage
- 230 V AC 1 phase
- Other input voltage
- 220 V; 240 V
- Efficiency at full load
- 110...300 V 60 % load; 176...300 V full load
- Input connection
- 1 hard wire 3-wire (1P + N + E)
- Input frequency
- 40...70 Hz auto sensing
- Output voltage
- 230 V AC 1 phase
- Other output voltage
- 220 V; 240 V
- Rated power in W
- 10000 W
- Rated power in VA
- 10000 VA
- Output connection
- Hard wire 3-wire (1P + N + E) for 1 zone(s)
- Bypass type
- Internal bypass (automatic and manual)
- Crest factor
- 3 : 1
- Maximum configurable power in VA
- 10000 VA
- Maximum configurable power in W
- 10000 W
- UPS topology
- On-Line
- Waveform type
- Sine wave
- Efficiency
- 94 % (full load)
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- Additional information
- Configurable for 220 : 230 or 240 nominal output voltage
- Battery type
- Lead-acid external sold separately
- Control panel
- Multifunction LCD status and control console
- Emergency power off
- Yes
- Alarm
- Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- UPS connectivity
- Serial port; USB port; Available expansion slot
- Surge energy rating
- 600 J
- Color
- Black (RAL 7010)
- Height
- 336 mm
- Width
- 190 mm
- Depth
- 447 mm
- Product weight
- 16.5 kg
- Mounting location
- Front
- Mounting preference
- No preference
- Mounting mode
- Not rack-mountable
- USB compatible
- No
- Mounting position
- Vertical
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Redundant
- No
- Range of product
- Easy UPS On-Line
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- CE; UKCA; EAC
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…60 °C
- Storage altitude
- 0…15000 m
- IP protection
- IP20
- Relative humidity
- 0…95 % non-condensing
- Storage relative humidity
- 0…95 % non-condensing
- Acoustic level
- 58 dBA
- Heat dissipation
- 2128 Btu/h
- Operating altitude
- 0...3000 m
- Battery voltage
- 240 V
- Extendable runtime
- 1
- Included battery module
- 0
- Empty battery slot
- 0
- Battery charging power
- 1170 W rated
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 46.0 cm
- Package 1 Width
- 29.0 cm
- Package 1 Length
- 57.0 cm
- Package 1 Weight
- 19.5 kg
- Country of origin
- CN
- Warranty (in months)
- 24
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 0731304343400
- SAP 1200960912
- Code 84257147
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric PratiKa wander socket - straight - 32 A - 3P + E - 200...250 V AC - IP44 PKY32M424
Schneider Electric
Schneider TeSys D Contactor LC1D40A 40A 3P 24-60V AC/DC Coil
LC1D40ABNE
Schneider Electric
ACTI9 side plate for comb set of 40 1PN
A9X21094
Schneider Electric
Schneider Electric Power Cord, C19 to C20, 2.0M AP9877
Schneider Electric
Schneider Electric three-Phase Voltage control relay 200…240VAC, 2 C/O RM22TR31
Schneider Electric
Schneider Electric Miniature circuit breaker (MCB), ACTI9 C120H, 4P, 80A, C curve, 15000A (IEC/EN 60898-1), 15KA (IEC/EN 60947-2) A9N18479
Schneider Electric

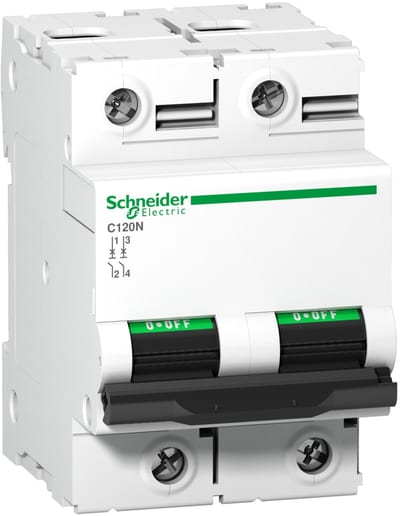

Schneider Electric Miniature circuit breaker (MCB), ACTI9 C120N, 2P, 80A, C curve, 10000A (IEC/EN 60898-1), 10KA (IEC/EN 60947-2) A9N18361
Schneider Electric

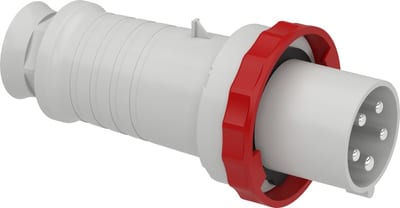

Plug 63A 4P+J 400V IP67
