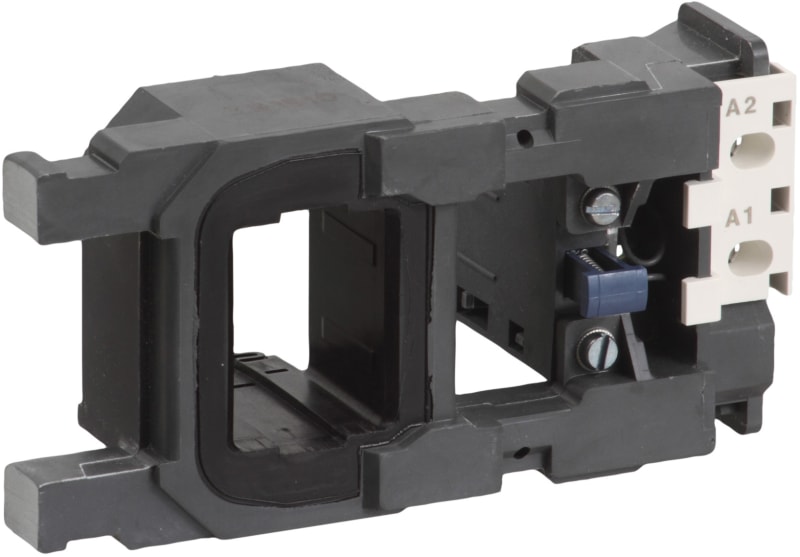

Schneider Electric TeSys F - specific contactor coil - 415...440V AC 40...400 Hz low consumption LX9FG415
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LX9FG415 coil 415/440V 50/60HZ.
Technical Specifications
- Manufacturer part number (MPN)
- LX9FG415
- EAN / GTIN
- 3389110084054
- Sales unit
- pcs
- Package quantity
- 14 pcs
- Voltage
- 415/440 V
- Range
- TeSys
- Product or component type
- Specific contactor coil
- Device short name
- LX9FG
- Range compatibility
- TeSys TeSys F LC1F contactor
- Product compatibility
- LC1F185; LC1F225
- Control circuit type
- AC at 40...400 Hz low consumption
- [Uc] control circuit voltage
- 415...440 V AC 40...400 Hz
- Inductance of closed circuit
- 20.6 H
- Average resistance
- 157 Ohm inrush at 20 °C; 5930 Ohm holding at 20 °C
- Operating time
- 130 ms opening; 35 ms closing
- Mechanical durability
- 10 Mcycles
- Maximum operating rate
- 2400 cyc/h 55 °C
- Coil technology
- Without built-in suppressor module
- Control circuit voltage limits
- Operational: 0.85...1.1 Uc (at 55 °C); Drop-out: 0.2...0.55 Uc (at 55 °C)
- Inrush power in VA
- 950…1180 VA 40...400 Hz (at 20 °C)
- Hold-in power consumption in VA
- 8.9…10.9 VA 40...400 Hz (at 20 °C)
- Heat dissipation
- 8…9.8 W
- Ambient air temperature for operation
- -5…55 °C
- Product weight
- 0.55 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 14
- Country of origin
- CZ
- Warranty (in months)
- 18
- Rated control supply voltage AC 50 Hz
- 415–440 V
- Rated control supply voltage AC 60 Hz
- 415–440 V
- Voltage type for actuating
- AC
Standards & Compliance
- HS Code
- 8505.90
Cross References
- EAN 3389110084054
- SAP 1000034809
- Code 8512697
Product Documentation
