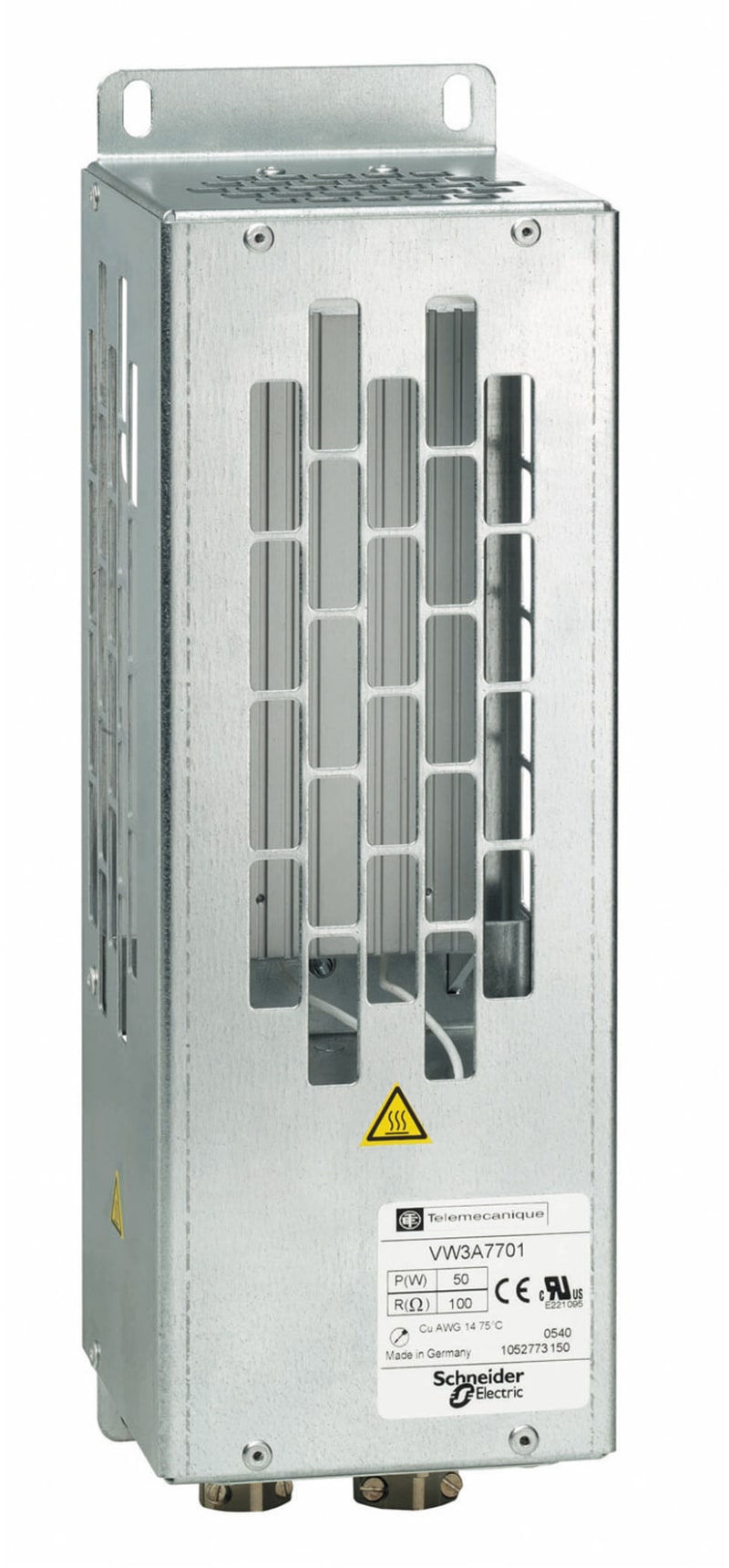

Schneider Electric braking resistor - IP 20 - 100 Ohm - 50 W VW3A7701
Part numberVW3A7701EAN / GTIN3389118065734HS code8548.00
Drives & Controllers
Drive Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A7701 Braking resistor 100 ohm 50W.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A7701
- EAN / GTIN
- 3389118065734
- Sales unit
- pcs
- Package quantity
- 9 pcs
- Power
- 50 W
- Range of product
- Altivar
- Range compatibility
- Altivar 312; Altivar 61; Altivar 312 Solar; Altivar 32; Altivar 31C
- Product compatibility
- ATV31C018M2; ATV31C037M2; ATV31C037N4; ATV31C055M2; ATV31C055N4; ATV31C075M2; ATV31C075N4; ATV31CU11M2; ATV31CU11N4; ATV31CU15M2; ATV31CU15N4; ATV31CU22N4; Variable speed drive ATV310 at 1.5 kW; Variable speed drive ATV310 at 2.2 kW; ATV31CU30N4; ATV31CU40N4; Variable speed drive ATV310 at 3 kW; Variable speed drive ATV310 at 4 kW; ATV12H018F1; ATV12H018M2; ATV12H018M3; ATV12H037F1; ATV12H037M2; ATV12H037M3; ATV12H055M2; ATV12H075F1; ATV12H075M2; ATV12H075M3; ATV12HU15M2; ATV12HU15M3; ATV12P037F1; ATV12P037M2; ATV12P037M3; ATV12P055M2; ATV12P075M2; ATV12P075M3; ATV12PU15M3; ATV312H018M2; ATV312H018M3; ATV312H037M2; ATV312H037M3; ATV312H037N4; ATV312H055M2; ATV312H055M3; ATV312H055N4; ATV312H075M2; ATV312H075M3; ATV312H075N4; ATV312HU11M2; ATV312HU11M3; ATV312HU11N4; ATV312HU15M2; ATV312HU15M3; ATV312HU15N4; ATV312HU22N4; ATV312HU30N4; ATV312HU40N4; ATV32H018M2; ATV32H037M2; ATV32H037N4; ATV32H055M2; ATV32H055N4; ATV32H075M2; ATV32H075N4; ATV32HU11M2; ATV32HU11N4; ATV32HU15M2; ATV32HU15N4; ATV32HU22N4; ATV32HU30N4; ATV32HU40N4; ATV61H075M3; ATV61H075N4; ATV61HU15N4; ATV61HU22N4; ATV61HU30N4; ATV61HU30Y; ATV61HU40N4; ATV61HU40Y; ATV61HU55Y; ATV61HU75Y; ATV61W075N4; ATV61W075N4C; ATV61WU15N4; ATV61WU15N4C; ATV61WU22N4; ATV61WU22N4C; ATV61WU30N4; ATV61WU30N4C; ATV61WU40N4; ATV61WU40N4C; ATV61WU55N4; ATV61WU55N4C; ATV71H037M3; ATV71H075M3; ATV71H075N4; ATV71HU15N4; ATV71HU22N4; ATV71HU22Y; ATV71HU30N4; ATV71HU30Y; ATV71HU40N4; ATV71HU40Y; ATV71HU55Y; ATV71P075N4Z; ATV71PU40N4Z; ATV71W075N4; ATV71WU40N4; ATV71PU15N4Z; ATV71PU22N4Z; ATV71WU15N4; ATV71WU22N4; ATV71PU30N4Z; ATV71WU30N4
- Ohmic value
- 100 Ohm
- [Ue] rated operational voltage
- 24 V DC at 0.1 A; 250 V AC at 1 A
- Average power available
- 50 W at 50 °C; 58 W at 40 °C
- Electrical connection
- terminal, connection capacity: <= 1.5 mm² / 16 AWG for temperature control switch; terminal, connection capacity: <= 4 mm² / 28 AWG for drive
- temperature controlled switch contact resistance
- 60 µOhm
- Protection type
- Thermal protection via drive or temperature control switch at 120 °C
- Width
- 95 mm
- Height
- 293 mm
- Depth
- 95 mm
- Product weight
- 1.9 kg
- IP degree of protection
- IP20
- Ambient air temperature for storage
- -25…70 °C
- Ambient air temperature for operation
- 0…50 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 9
- Country of origin
- DE
- Warranty (in months)
- 18
- Type of accessory/spare part
- Breaking resistance
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8548.00
Cross References
- EAN 3389118065734
- SAP 1000254552
- Code 81143846
