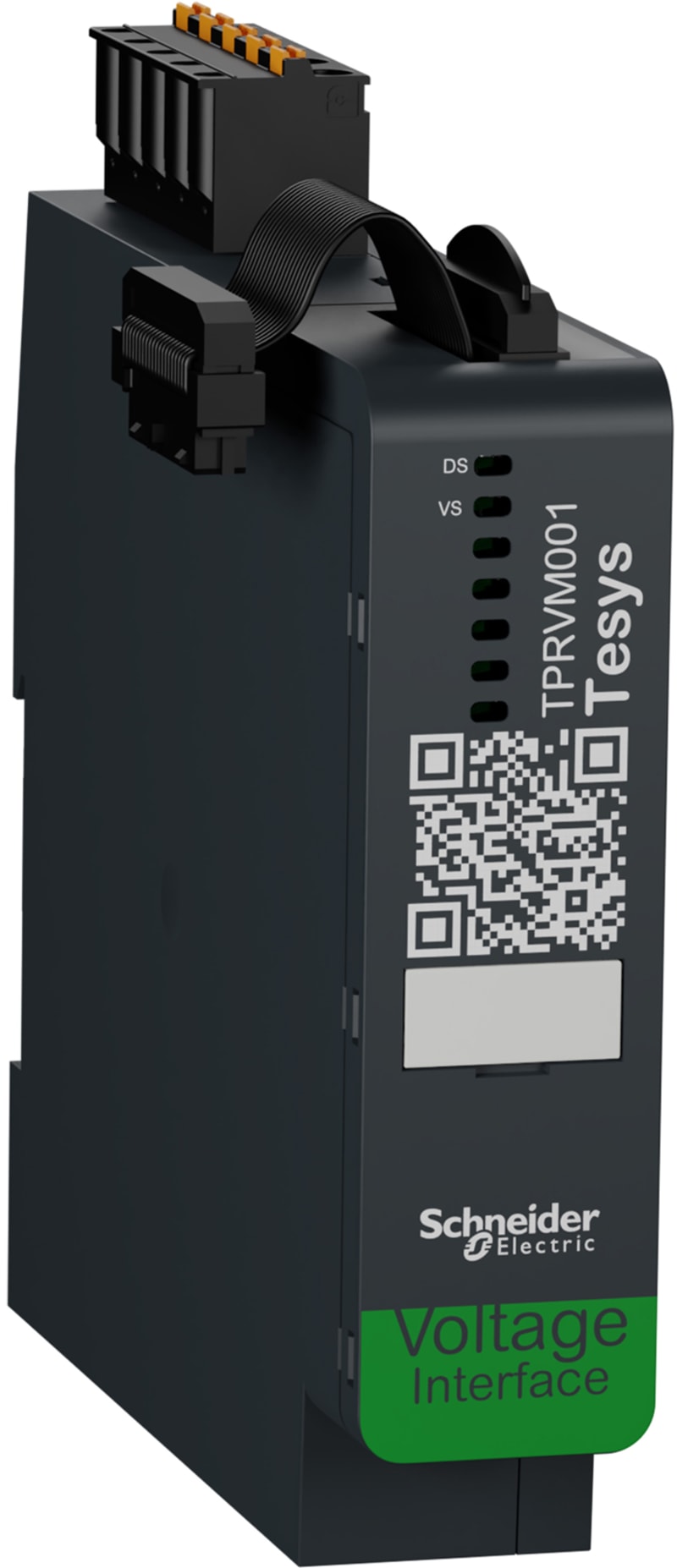

Schneider Electric TPRVM001 Voltage interface module, TeSys island

Schneider Electric TPRVM001 Voltage interface module, TeSys island is listed under Electrical Components. Sales unit: pcs; Package quantity: 16 pcs; Range: TeSys; Product name: TeSys island; Device short name: TPRVM; Product or component type: Voltage interface module.

Manufacturer part number (MPN)

TPRVM001

EAN / GTIN

3606489832889

Sales unit

pcs

Package quantity

16 pcs

Range

TeSys

Product name

TeSys island

Device short name

TPRVM

Product or component type

Voltage interface module

Device presentation

Monitoring of the mains voltage powering the island; Reporting of the voltage to the bus coupler to enable power & energy monitoring

Function of module

Monitoring of voltages in single phase systems L-N or L-L; Monitoring of voltages in 3-phase systems without neutral N connection; Calculation of RMS phase voltages, voltage phase sequence, fundamental frequency; Identification of dip and swell events level and duration

Product compatibility

TPRBC bus coupler

[Ue] rated operational voltage

690 V AC 47...63 Hz

[Ui] rated insulation voltage

690 V conforming to IEC 61010-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 61010-1

Overvoltage category

III

Monitoring type

Phase voltage 100...690 V; Phase frequency 47...63 Hz; Phase sequence

Measurement accuracy

Voltage: +/- 5 %, ; Frequency: +/- 1 Hz

Local signalling

1 LED (green/red) for DS (device status); 1 LED (green/red) for VS (voltage status)

[Us] rated supply voltage

24 V DC supplied by the bus coupler

Current consumption

2 mA

Power dissipation in W

0.5 W maximum

Standards

IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201

Product certifications

CSA; UL; EAC (pending)

Mounting mode

Horizontal and vertical (35 mm symmetrical rail)

Connections - terminals

Measuring input: removable spring terminal block 3 cable(s) 0.2…2.5 mm² (24 AWG...14 AWG) rigid; Measuring input: removable spring terminal block 3 cable(s) 0.2…2.5 mm² (24 AWG...14 AWG) flexible without cable end; Measuring input: removable spring terminal block 3 cable(s) 0.25…2.5 mm² (22 AWG...14 AWG) flexible with cable end

Width

25 mm

Height

118 mm

Depth

114 mm

Product weight

0.159 kg

Ambient air temperature for storage

-25…70 °C

Ambient air temperature for operation

-10…60 °C

Relative humidity

5…95 %

Operating altitude

0...2000 m without derating

IP degree of protection

IP20

Pollution degree

2

Protective treatment

TC

Fire resistance

960 °C conforming to UL 94

Shock resistance

15 gn (duration = 11 ms) conforming to IEC 60068-2-27

Vibration resistance

1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6; 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6

Electromagnetic compatibility

Electrostatic discharge, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2; Radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3; Line voltage circuit: fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4; Line voltage circuit: surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.500 cm

Package 1 Width

13.500 cm

Package 1 Length

15.500 cm

Package 1 Weight

235.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

16

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

4.295 kg

Country of origin

ID

Warranty (in months)

18

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

20.4–28.8 V

Voltage type (supply voltage)

DC

Input, current

No

Input, voltage

Yes

Input, resistor

No

Input, resistance thermometer

No

Input, thermocouple

No

Input signal, configurable

No

Resolution of the analogue inputs

13 Bit

Output, current

No

Output, voltage

No

Output signal configurable

No

Number of analogue inputs

3

Analogue inputs configurable

No

Number of HW-interfaces other

2

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

Yes

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

Degree of protection (IP)

IP20

Type of electric connection

Plug-in connection

Fieldbus connection over separate bus coupler possible

Yes

Suitable for rail mounting

Yes

Wall mounting/direct mounting

No

Front built-in possible

No

Rack-assembly possible

No

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

HS Code

8538.90
