Schneider Electric

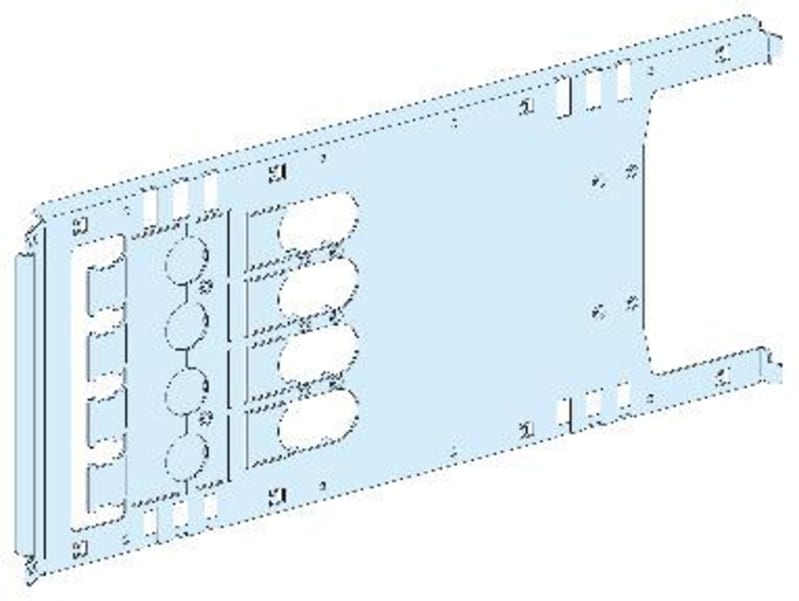

Mounting plate NSX630 plugin horizontal 4P P
Part numberLVS03454EAN / GTIN3606481874399HS code7326.90
Enclosures
Mounting Plates
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03454 Mounting plate for NSX400/630-plugin/motor/dreiehandtak-horizontal-4P-PrismaSeT P-for 650mm section.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03454
- EAN / GTIN
- 3606481874399
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Number of poles
- 4P
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Mounting plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- installation description
- Cubicle - width 650 mm depth 400 mm
- Installed device
- EasyPact: fixed CVS400 without earth leakage protection - control: direct front rotary handle - horizontal installation; EasyPact: fixed CVS630 without earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: plug-in NSX400 without earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX400 without earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: fixed NSX400 without earth leakage protection - control: motor mechanism - horizontal installation; ComPact: plug-in NSX400 without earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: plug-in NSX400 without earth leakage protection - control: motor mechanism - horizontal installation; ComPact: plug-in NSX630 without earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX630 without earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: fixed NSX630 without earth leakage protection - control: motor mechanism - horizontal installation; ComPact: plug-in NSX630 without earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: plug-in NSX630 without earth leakage protection - control: motor mechanism - horizontal installation; EasyPact: fixed CVS400 with earth leakage protection - control: direct front rotary handle - horizontal installation; EasyPact: fixed CVS630 with earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: plug-in NSX400 with earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX400 with earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: fixed NSX400 with earth leakage protection - control: motor mechanism - horizontal installation; ComPact: plug-in NSX400 with earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: plug-in NSX400 with earth leakage protection - control: motor mechanism - horizontal installation; ComPact: plug-in NSX630 with earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX630 with earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: fixed NSX630 with earth leakage protection - control: motor mechanism - horizontal installation; ComPact: plug-in NSX630 with earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: plug-in NSX630 with earth leakage protection - control: motor mechanism - horizontal installation
- Poles description
- 1 x 4P: fixed CVS400 horizontal installation; 1 x 4P: fixed CVS630 horizontal installation; 1 x 4P: fixed NSX400 horizontal installation; 1 x 4P: fixed NSX630 horizontal installation; 1 x 4P: plug-in NSX400 horizontal installation; 1 x 4P: plug-in NSX630 horizontal installation
- Number of vertical modules [50 mm]
- 4 module(s): NSX400 without earth leakage protection , direct in 650 mm Widecubicle; 4 module(s): NSX630 without earth leakage protection , direct in 650 mm Widecubicle; 4 module(s): NSX400 with earth leakage protection , direct in 650 mm Widecubicle; 4 module(s): NSX630 with earth leakage protection , direct in 650 mm Widecubicle; 5 module(s): CVS400 without earth leakage protection , direct in 650 mm Widecubicle; 5 module(s): CVS630 without earth leakage protection , direct in 650 mm Widecubicle; 5 module(s): NSX400 without earth leakage protection , direct in 650 mm Widecubicle; 5 module(s): NSX630 without earth leakage protection , direct in 650 mm Widecubicle; 5 module(s): CVS400 with earth leakage protection , direct in 650 mm Widecubicle; 5 module(s): CVS630 with earth leakage protection , direct in 650 mm Widecubicle; 5 module(s): NSX400 with earth leakage protection , direct in 650 mm Widecubicle; 5 module(s): NSX630 with earth leakage protection , direct in 650 mm Widecubicle
- Standards
- IEC 61439-2
- Product certifications
- ASTA
- Material
- Sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 650 mm
- Height
- 250 mm
- Product weight
- 2.96 kg
- Functional unit
- 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 without fixed direct front rotary handle horizontal 4P 1 direct 5 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 without fixed direct front rotary handle horizontal 4P 1 direct 5 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in toggle horizontal 4P 1 direct 4 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed direct front rotary handle horizontal 4P 1 direct 5 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed motor mechanism horizontal 4P 1 direct 5 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in direct front rotary handle horizontal 4P 1 direct 5 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in motor mechanism horizontal 4P 1 direct 5 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in toggle horizontal 4P 1 direct 4 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed direct front rotary handle horizontal 4P 1 direct 5 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed motor mechanism horizontal 4P 1 direct 5 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in direct front rotary handle horizontal 4P 1 direct 5 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in motor mechanism horizontal 4P 1 direct 5 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 with fixed direct front rotary handle horizontal 4P 1 direct 5 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 with fixed direct front rotary handle horizontal 4P 1 direct 5 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in toggle horizontal 4P 1 direct 4 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed direct front rotary handle horizontal 4P 1 direct 5 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed motor mechanism horizontal 4P 1 direct 5 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in direct front rotary handle horizontal 4P 1 direct 5 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in motor mechanism horizontal 4P 1 direct 5 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in toggle horizontal 4P 1 direct 4 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed direct front rotary handle horizontal 4P 1 direct 5 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed motor mechanism horizontal 4P 1 direct 5 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in direct front rotary handle horizontal 4P 1 direct 5 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in motor mechanism horizontal 4P 1 direct 5 12.5 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 80
- Country of origin
- IT
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Powder coating
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481874399
- SAP 1200546681
- Code 82880327
