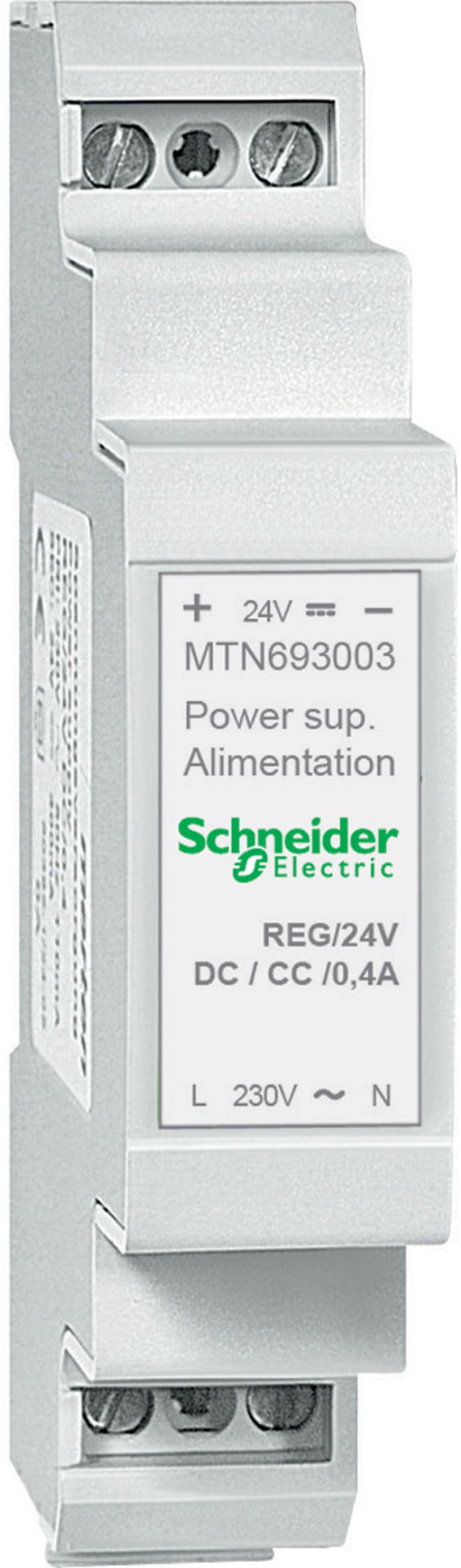

Schneider Electric Power supply, SpaceLogic KNX, REG 24 V DC / 0.4 A, light grey MTN693003
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric MTN693003 KNX power supply 24VDC/0,4A.
Technical Specifications
- Manufacturer part number (MPN)
- MTN693003
- EAN / GTIN
- 3606485012452
- Sales unit
- pcs
- Package quantity
- 35 pcs
- Voltage
- 24 V DC
- Range of product
- SpaceLogic KNX
- Product or component type
- Power supply
- Bus type
- KNX
- Network type
- DC
- Colour tint
- Light grey
- Range
- SpaceLogic KNX
- Condition of use
- Other device; KNX device
- Function of module
- With output voltage stabilized
- Mounting support
- DIN rail
- Rated operational power in W
- 9.6 W
- Output current
- 0.4 A
- output voltage
- 24 V
- Connections - terminals
- Screw terminals
- Height
- 68.1 mm
- Width
- 17.5 mm
- Depth
- 68.1 mm
- Main colour tint
- Light grey
- IP degree of protection
- IP20
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 35
- Warranty (in months)
- 18
- Voltage type (supply voltage)
- DC
- 1st secondary output voltage
- 24 V
- Max. output current 1
- 0.4 A
- Secondary voltage adjustable
- No
- Nominal value output voltage 1
- 24 V
- Nominal value output current 1
- 0.4 A
- Short-circuit-proof
- No
- Rated supply voltage AC 50 Hz
- 230 V
- Rated supply voltage AC 60 Hz
- 230 V
- Output voltage stabilized
- Yes
- Power output
- 9.6 W
- Stabilized
- Yes
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- Yes
- Width in number of modular spacings
- 1
- Built-in width
- 18 mm
- Built-in height
- 68.1 mm
- Direct mounting possible
- No
- Suitable for safety functions
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 3606485012452
- SAP 1000325223
- Code 8872186
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric TPRVM001 Voltage interface module, TeSys island
Schneider Electric
Backplate IP55 width 800mm PrismaSeT P
LVS08748
Schneider Electric
Door cable compartment PrismaSeTG cabinet 33MOD-IP30
LVS08284
Schneider Electric

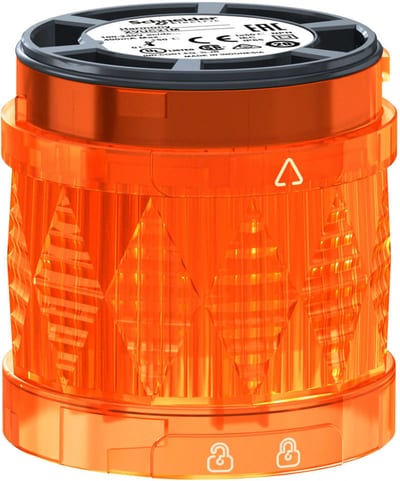

Schneider Electric XVUC25 Illuminated LED unit for modular tower lights, orange, Ø60, steady, IP65, 24 V AC/DC
Schneider Electric

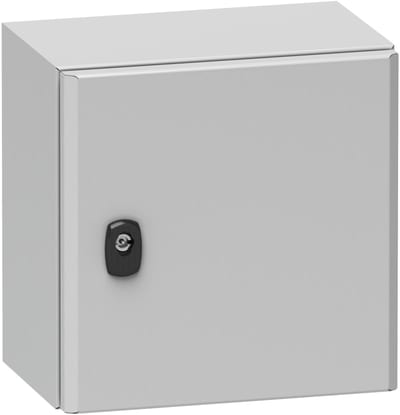

Schneider Electric NSYS3D8625P Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 800X600X250MM, IP66, IK10
Schneider Electric

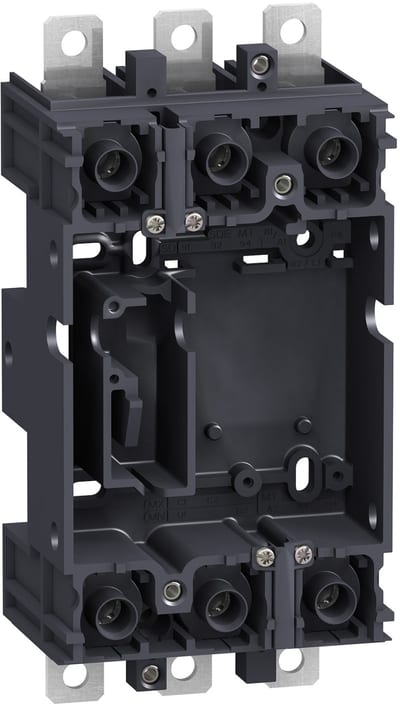

Schneider Electric plug in base, ComPact NSX 100/160/250, front/rear connected, 3 poles LV429266
Schneider Electric

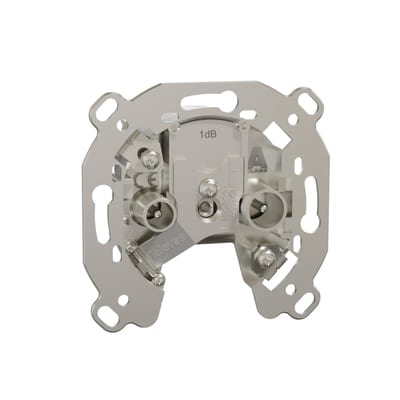

Antenneinnsats R/TV end outlet 1 dB
WDE004970
Schneider Electric

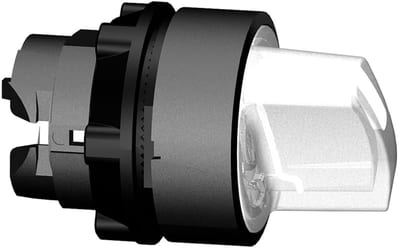

Selector switch with LIGHT 2ST.WHITE LED (ZB5AK1213)
