Output Filter DV/DT IP20 50A
Pricing
Request a quote
We reply within 24 hours
Product Description

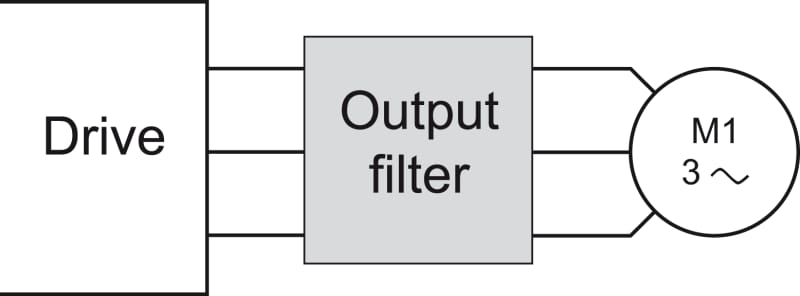

Schneider Electric VW3A5304 Output Filter dv/dt IP20 50A.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A5304
- EAN / GTIN
- 3606480736711
- Sales unit
- pcs
- Package quantity
- 2 pcs
- IP rating
- IP20
- Rated current
- 50 A
- Product or component type
- Dv/dt filter
- Range compatibility
- Altivar Process ATV900; Altivar Process ATV600; Easy Altivar 610; Altivar Machine ATV340
- Product specific application
- Output filter
- [In] rated current
- 50 A
- Product compatibility
- ATV630 variable speed drive wall mount - 11 kW, 200...240 V; ATV630 variable speed drive wall mount - 15 kW, 380...480 V; ATV630 variable speed drive wall mount - 18.5 kW, 380...480 V; ATV630 variable speed drive wall mount - 22 kW, 380...480 V; ATV650 variable speed drive wall mount - 15 kW, 380...480 V; ATV650 variable speed drive wall mount - 18.5 kW, 380...480 V; ATV650 variable speed drive wall mount - 22 kW, 380...480 V; ATV610 variable speed drive - 18.5 kW, 380...415 V; ATV610 variable speed drive - 22 kW, 380...415 V; ATV630 variable speed drive wall mount - 5.5 kW, 200...240 V; ATV630 variable speed drive wall mount - 7.5 kW, 200...240 V; ATV930 variable speed drive wall mount - 11 kW, 200...240 V; ATV930 variable speed drive wall mount - 15 kW, 380...480 V; ATV930 variable speed drive wall mount - 18.5 kW, 380...480 V; ATV930 variable speed drive wall mount - 22 kW, 380...480 V; ATV950 variable speed drive wall mount - 15 kW, 380...480 V; ATV950 variable speed drive wall mount - 18.5 kW, 380...480 V; ATV950 variable speed drive wall mount - 22 kW, 380...480 V
- nedded quantity
- 1
- Electrical connection
- Terminal block, connection capacity: 16 mm² / 6 AWG
- Maximum motor cable length
- 500 m unshielded cable; 300 m shielded cable
- dv/dt
- 3000 V/µs max at 200...240 V; 3000 V/µs max at 380...480 V
- Thermal losses
- 65 W at 4 kHz
- maximum drive output frequency
- 100 Hz
- Ambient air temperature for operation
- -10…50 °C (without current derating); 50…60 °C (with current derating 1.5 % per °C)
- Operating altitude
- 0...1000 m without current derating; 1000...4000 m with current derating 1 % per 100 m
- Width
- 300 mm
- Height
- 560 mm
- Depth
- 245 mm
- Product weight
- 18 kg
- IP degree of protection
- IP20; IP21 (with kit VW3A53903)
- Ambient air temperature for storage
- -40…70 °C
- Country of origin
- CN
- Warranty (in months)
- 18
- Type of accessory/spare part
- Filter
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8548.90
Cross References
- EAN 3606480736711
- SAP 1000659421
- Code 8234640
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric iCT 63A 2NO 220...240V 50Hz MO contact A9C21862
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSXm 63H, 70KA/415VAC, 4 poles, MicroLogic 4.1 trip unit 50A, lugs/busbars C11H44V050B
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 12A, 12V DC low consumption coil, snap-in terminals LC1D12AJL
Schneider Electric
Emergency stop sign with LED 120V SP
ZBY9W2G430
Schneider Electric
RH10P 220/240V AC 0,03A Torque
56230
Schneider Electric
Schneider Electric 1 Ronis keylock with 2 keys - identified EL24315 combination - spare part LV833192SP
Schneider Electric
Schneider Electric encoder interface card with push-pull outputs - 24 V DC VW3A3407
Schneider Electric

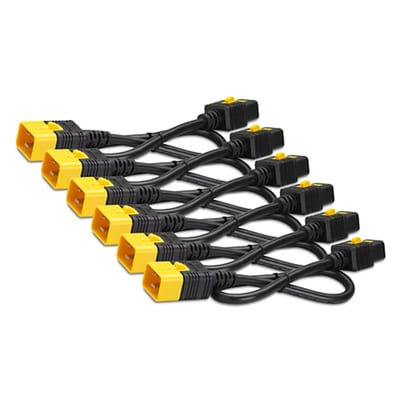

Schneider Electric Power Cord Kit (6 ea), Locking, C19 to C20, 1.2M AP8714S
