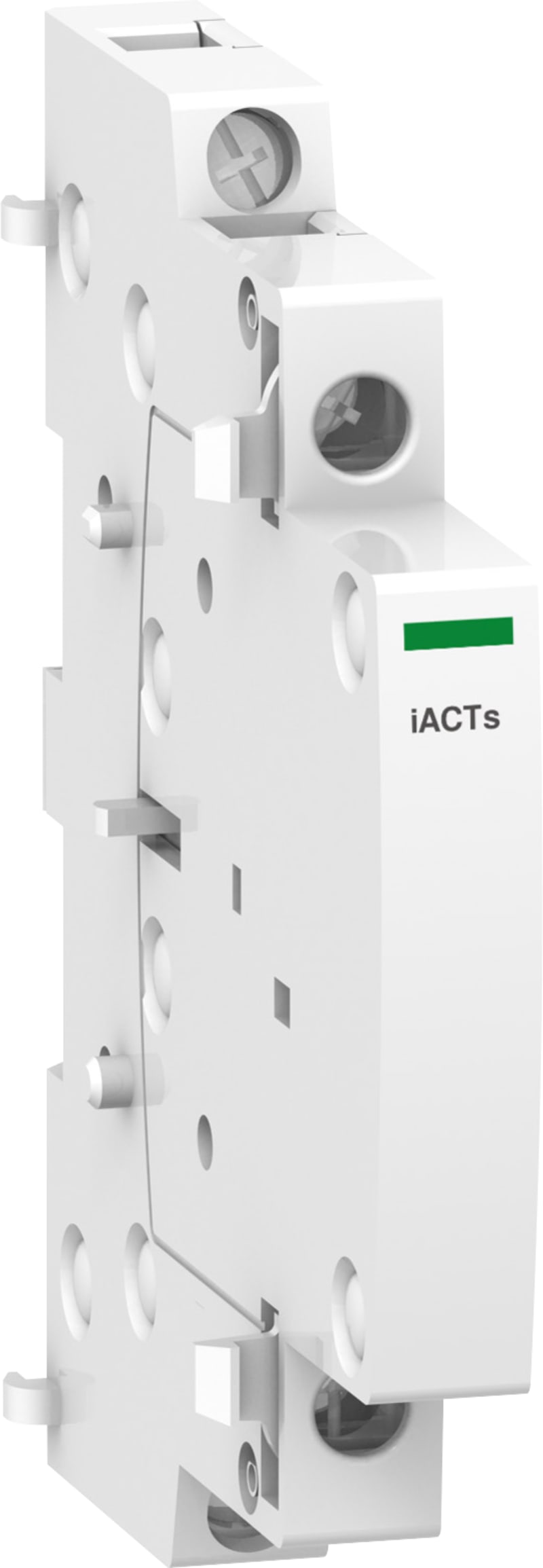

Schneider Electric Remote indication auxiliary, ACTI9 iACTs, 2 NO A9C15916

Schneider Electric A9C15916 Hj.block iACTs 2NO for iCT.

Manufacturer part number (MPN)

A9C15916

EAN / GTIN

3606480096297

Sales unit

pcs

Package quantity

10 pcs

Contact configuration

2 NO

Range of product

ICT

Range

Acti9

Device short name

iACTs

Product or component type

Remote indication auxiliary

Signal contacts composition

2 NO

Signalling circuit voltage

24 V AC/DC: 10 mA; 230 V AC: 50/60 Hz 5 A; 230 V AC: 50/60 Hz 2 A; 130 V DC: 1 A

[Uc] control circuit voltage

24...240 V AC 50/60 Hz; 24...130 V DC

Range compatibility

Acti9 iCT

[Ui] rated insulation voltage

440 V

[Uimp] rated impulse withstand voltage

4 kV

mounting mode

Fixed, on the right of CT

Mounting support

35 mm symmetrical DIN rail

9 mm pitches

1

Height

81 mm

Width

9 mm

Depth

68 mm

Colour

White

Auxiliary connection terminal

Tunnel type terminals 2 cable(s) flexible 2.5 mm²; Tunnel type terminals 2 cable(s) rigid 1.5 mm²; Tunnel type terminals 1 cable(s) rigid 1.5…2.5 mm²; Tunnel type terminals 1 cable(s) flexible 1.5…2.5 mm²

Wire stripping length

9 mm

Tightening torque

0.8 N.m

Product compatibility

ICT

Market segment

Residential; Small commercial

Compatibility code

IACTs

Standards

EN 60947-5

IP degree of protection

IP20 conforming to IEC 60529

Tropicalisation

2

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-20…50 °C

Ambient air temperature for storage

-40…70 °C

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

120

Warranty (in months)

18

Function

Signalling switch

Voltage type

AC/DC

Rated voltage

240 V

Installed at the factory

No

Width in number of modular spacings

0.5

Rated switch current

5 A

Device fitting

Contactor/relay

Additional equipment

Signalling switch

Voltage type for actuating

AC/DC

Number of contacts as normally open contact

2

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

4

Suitable for max. current main contact unit

100 A

Country of origin

France

HS Code

8536.50

• EAN 3606480096297
• SAP 1000419422
• Code 8503176
