PLM54 Automatinsats 7035 48MOD
Pricing
Request a quote
We reply within 24 hours
Product Description

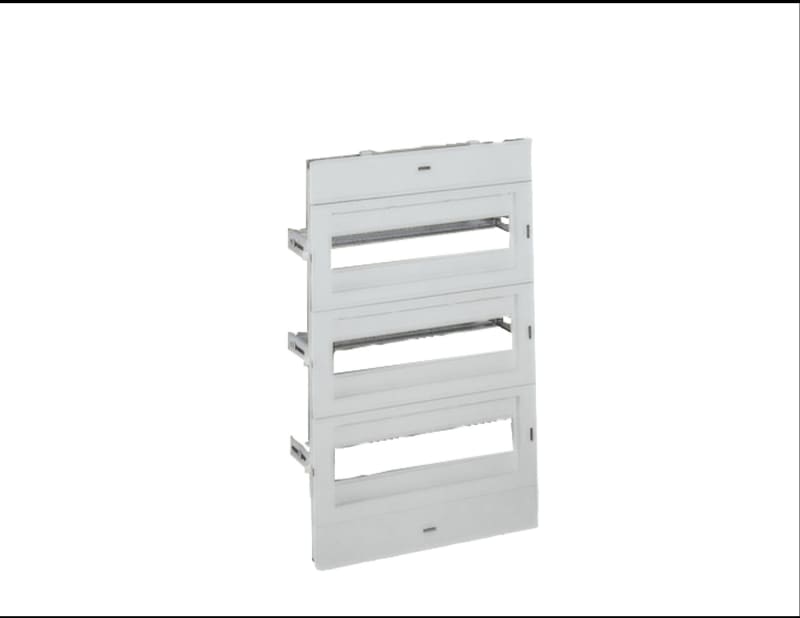

Schneider Electric NSYDLA48G PLM54 Automatinsats 7035 48mod.
Technical Specifications
- Manufacturer part number (MPN)
- NSYDLA48G
- EAN / GTIN
- 3606480773839
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Modular width
- 48 modules
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Application
- Multi-purpose; Modular distribution application
- Product or component type
- Chassis
- Device short name
- DLA
- For enclosure nominal dimensions
- -
- Mounting location
- Front of enclosure
- Range compatibility
- PanelSeT S3D; PanelSeT CRN; PanelSeT PLM
- Device composition
- 1 chassis structure; 2 finish cover; 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm²; 3 front panels with 35 mm DIN rail
- Quantity per set
- Set of 1
- Material
- Front panel: self-extinguishing insulating; Chassis structure and rails: steel
- Colour
- Front panel: grey (RAL 7035)
- Fixing mode
- By fixing element - on front with supports location
- Adjustment
- In height from 40 to 85 mm for DIN rail
- Number of horizontal rows
- 3
- Total number of 18 mm modules
- 48
- Type of front plate
- Plain and cut-out plates
- Number of cut-out
- 3 cut-outs
- Height
- 480 mm
- Width
- 360 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 48
- Country of origin
- ES
- Warranty (in months)
- 18
- Type of covering
- With notch
- Number of DIN-rails
- 3
- Number of modular spacings per DIN-rail
- 16
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480773839
- SAP 1000752300
- Code 8489222
