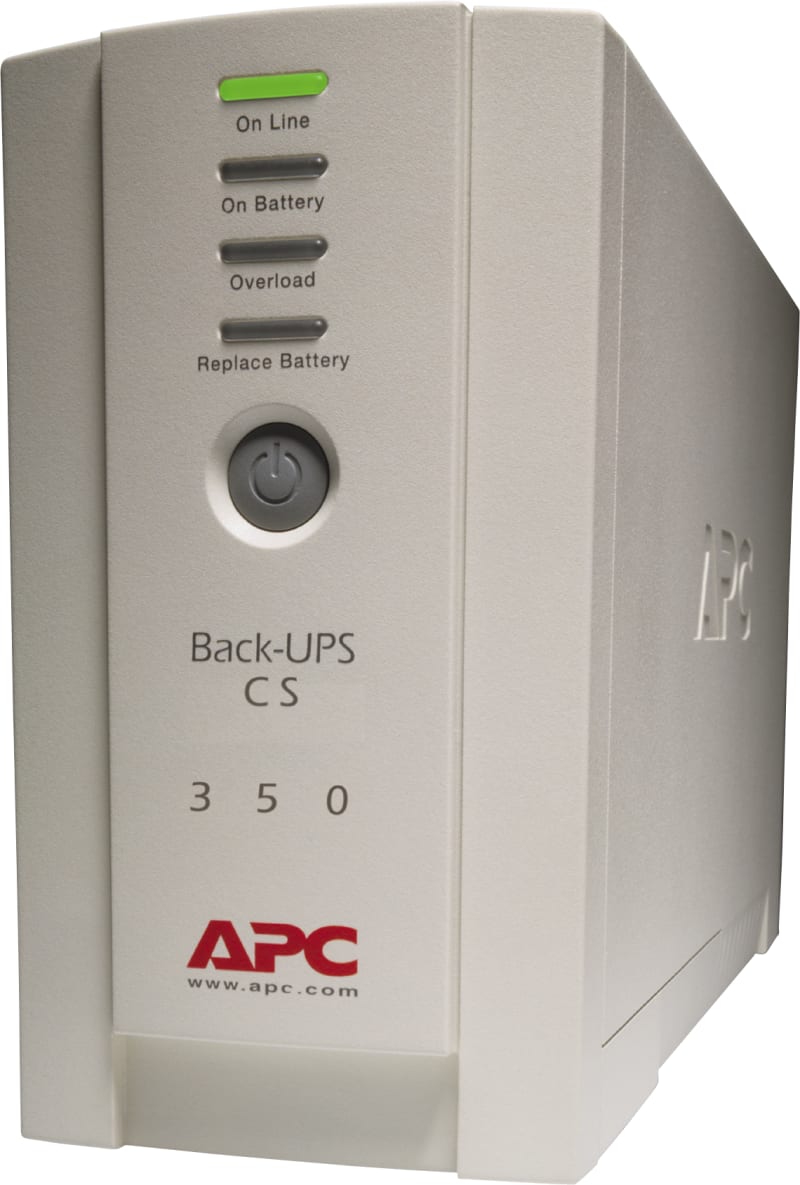

Schneider Electric APC Back-UPS, 350VA/210W, Tower, 230V, 4X IEC C13 Outlets, User Replaceable Battery BK350EI

Schneider Electric BK350EI UPS Offline.

Manufacturer part number (MPN)

BK350EI

EAN / GTIN

0731304016342

Sales unit

pcs

Package quantity

70 pcs

Main input voltage

230 V AC 1 phase

Input connection

IEC 60320 C14

Maximum input current

7 A

Switching current capacity

7 A

Efficiency at full load

180...266 V

Input frequency

50/60 Hz +/- 3 Hz auto-sensing

Output voltage

230 V AC 1 phase

Rated power in W

210 W

Rated power in VA

350 VA

Output connection

3 IEC 60320 C13; 1 IEC 60320 C13 surge; 2 IEC Jumpers

Type of USB power supply

None

Maximum configurable power in VA

350 VA

Maximum configurable power in W

210 W

Transfer time

6 ms typical : 10 ms maximum

UPS topology

Standby

Output frequency

47...63 Hz sync to mains; 50/60 Hz +/- 1 Hz unsynchronised

Replacement battery

RBC2

Run Time

View Runtime Graph

Efficiency

View Efficiency Graph

Battery capacity

7.0 Ah

Battery type

Lead-acid internal included

Control panel

LED Status display with on line : on battery

Free slot

0

Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

UPS connectivity

USB port

Surge energy rating

310 J

Noise filtering

Full time multi-pole noise filtering : 5% IEEE surge light-through : zero clamping response time : meets UL 1449

Cable length

1.16 m

Number of cables

2

Color

Beige

Height

165 mm

Width

91 mm

Depth

284 mm

Product weight

6.32 kg

Mounting location

Front

Mounting preference

No preference

Mounting mode

Not rack-mountable

Two post mountable

0

USB compatible

Yes

Provided equipment

CD with software; Documentation CD; Installation manual in japanese; Detachable IEC power cord; Detachable 1.2 m IEC power cord; Telephone cable; USB cable; Warranty card

Number of power module filled slots

0

Number of power module free slots

0

Redundant

No

Range of product

Back-UPS

Product or component type

Uninterruptible power supply (UPS)

Product certification

RCM; CE; GOST; VDE

Standard

EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018

Ambient air temperature for operation

0…40 °C

Ambient air temperature for storage

-15…45 °C

Storage altitude

0…15240 m

Relative humidity

0…95 %

Storage relative humidity

0…95 %

Heat dissipation

19 Btu/h

Operating altitude

0...10000 ft

Battery voltage

12 V

Battery graph comment

This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v

Extendable runtime

0

Included battery module

0

Empty battery slot

0

Typical recharge time

6 h

RBC quantity

1

Battery life

4…6 year(s)

Battery charging power

14 W rated

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

24.000 cm

Package 1 Width

19.000 cm

Package 1 Length

41.500 cm

Package 1 Weight

6.435 kg

Unit Type of Package 2

PAM

Number of Units in Package 2

70

Package 2 Height

142.000 cm

Package 2 Width

100.000 cm

Package 2 Length

120.000 cm

Package 2 Weight

492.450 kg

SCC14

10731304016349

Country of origin

PH

Warranty (in months)

12 Battery|24 UPS

HS Code

8504.40
