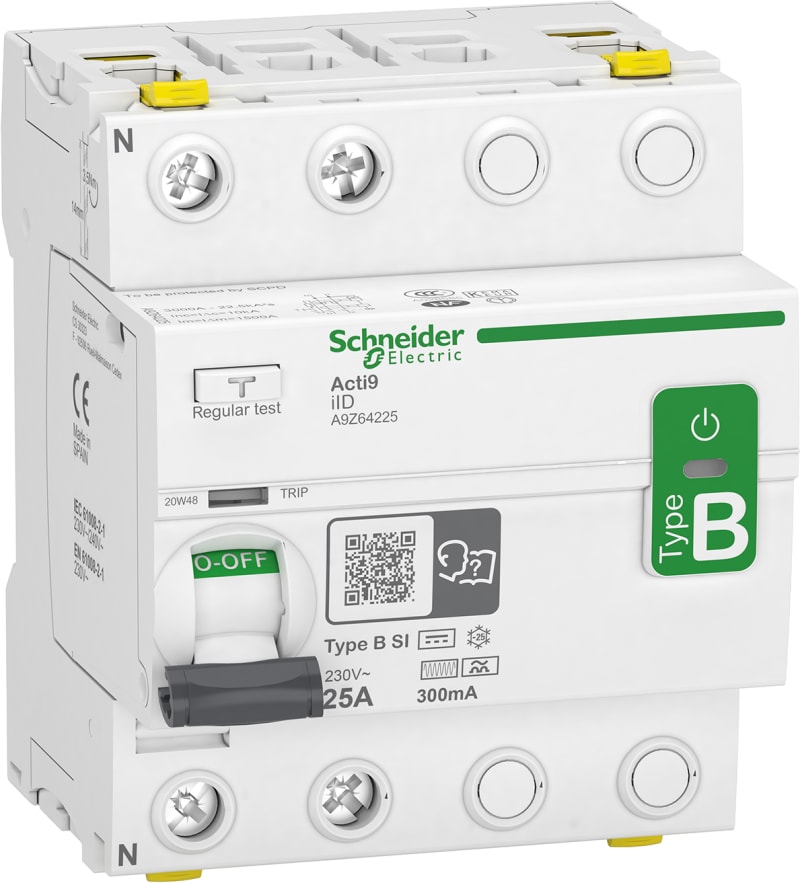

Schneider Electric Residual current circuit breaker (RCCB), ACTI9 iID, 2P, 25A, B-SI type, 300MA, double terminal A9Z64225

Schneider Electric A9Z64225 Residual current circuit breaker Acti9 iID 2P 25A 300mA B-SI RCCB.

Manufacturer part number (MPN)

A9Z64225

EAN / GTIN

3606489502942

HS code

8536.90

Sales unit

pcs

Package quantity

27 pcs

Rated current

25 A

Number of poles

2P

Range

Acti9

Product name

Acti9 iID

Product or component type

Residual current circuit breaker (RCCB)

Device short name

iID

Device application

Photovoltaic; Lift

Poles description

2P

Neutral position

Left

[In] rated current

25 A

Network type

AC

Earth-leakage sensitivity

300 mA

Earth-leakage protection time delay

Instantaneous

Earth-leakage protection class

Type B-SI (Super Immunised)

Quality labels

VDE; NF; IMQ; KEMA

Device location in system

Outgoer; Group incomer

Network frequency

50 Hz

[Ue] rated operational voltage

230 V AC 50 Hz

Residual current tripping technology

Voltage independent

Rated breaking and making capacity

Idm 1500 A; Im 1500 A

Rated conditional short-circuit current

10 kA

[Ui] rated insulation voltage

250 V

[Uimp] rated impulse withstand voltage

6 kV

Contact position indicator

Yes

Control type

Toggle

Local signalling

ON/OFF indication; LED (green) for presence of voltage; Trip indicator

mounting mode

Clip-on

Mounting support

35 mm DIN rail

9 mm pitches

8

Height

88 mm

Width

72 mm

Depth

73 mm

Product weight

350 g

Colour

White (RAL 9003)

Mechanical durability

20000 cycles

Electrical durability

15000 cycles

Locking options description

Padlocking device

Connections - terminals

Double terminal front 1…35 mm² rigid; Double terminal front 1…25 mm² flexible; Double terminal front 1…25 mm² flexible with ferrule; Double terminal back 1…25 mm² rigid; Double terminal back 1…16 mm² flexible; Double terminal back 1…16 mm² flexible with ferrule

Wire stripping length

14 mm for top or bottom connection

Tightening torque

3.5 N.m top or bottom

Standards

EN/IEC 61008-1; EN/IEC 61008-2-1; IEC/EN 62423

Product certifications

CCC

IP degree of protection

IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529

IK degree of protection

IK05

Pollution degree

3

Overvoltage category

IV

Electromagnetic compatibility

8/20 µs impulse withstand, 3 kA conforming to EN/IEC 61008-1

Operating altitude

0...2000 m

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…85 °C

Warranty (in months)

18

HS Code

8536.90
