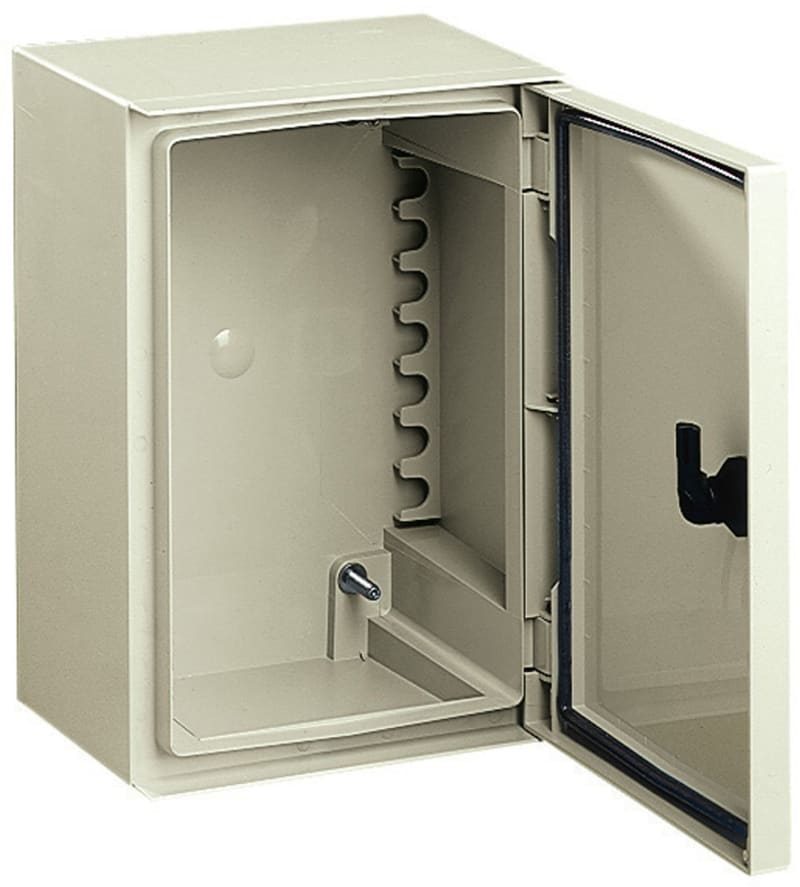

Schneider Electric wall-mounting encl. ABS/PC monobloc IP66 H310XW215XD160MM transparent door NSYPLM32TG
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYPLM32TG THALASSA 7035 310x215x160 GLA.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPLM32TG
- EAN / GTIN
- 3606480776502
- Sales unit
- pcs
- Package quantity
- 140 pcs
- Dimensions
- 310×215×160
- Range
- PanelSeT
- Device short name
- PLM
- Enclosure type
- Multi-purpose
- Category
- Compact enclosure
- Nominal height
- 310 mm
- Nominal width
- 215 mm
- Nominal depth
- 160 mm
- Enclosure mounting
- Wall mounted
- Device composition
- 1 body; 1 door; 1 lock
- Door type
- Transparent
- Lock type
- 3 mm double-bar lock
- Number of locks
- 1
- Mounting plate description
- Without mounting plate
- Accessibility for operation
- Front
- Removable parts
- Door by hinges
- Material
- Door: polycarbonate; Body: ABS + PC
- Colour
- Grey (RAL 7035)
- Standards
- NEMA classification 13; NEMA classification 4X; IEC 62208
- Electrical insulation class
- Class II
- IP degree of protection
- IP66 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Fire resistance
- 960 °C conforming to IEC 62208
- Ambient air temperature for operation
- -40…80 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 70
- Country of origin
- HU
- Warranty (in months)
- 18
- Width
- 215 mm
- Height
- 310 mm
- Depth
- 160 mm
- RAL-number
- 7035
- Number of doors
- 1
- Impact strength
- IK08
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- Yes
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Untreated
- Max. permitted load of the enclosure according to IEC 62208
- 94 N
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480776502
- SAP 1000752620
- Code 8487614
