VOLTAGESOUTLET-20 pcs-Linergy-Prisma P
Pricing
Request a quote
We reply within 24 hours
Product Description

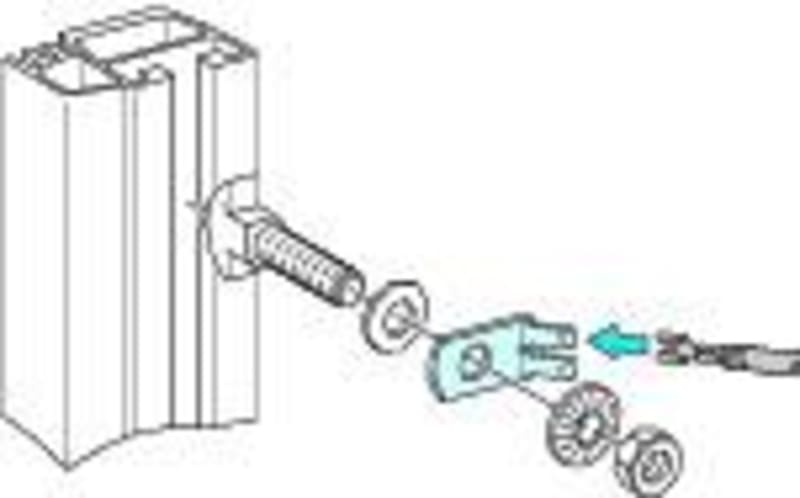

Schneider Electric LVS04229 Spenningsuttak-Linergy rails, M10-screw-for 2 clip 6.35 mm, set a 20-PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04229
- EAN / GTIN
- 3606481866776
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Range
- Linergy
- Range of product
- Linergy LGYE
- Product or component type
- Voltage tap-off
- Range compatibility
- PrismaSeT PrismaSeT P enclosure; PrismaSeT Prisma iPM M enclosure; Linergy Linergy LGYE busbar
- Accessory / separate part category
- Busbar accessory
- Product compatibility
- Linergy busbar
- Product destination
- Busbar
- Quantity per set
- Set of 20
- Cubicle-device connection
- M10 bolt
- Connections - terminals
- 2 Faston terminals
- Height
- 9.5 mm
- Width
- 17.5 mm
- Depth
- 0.84 mm
- Product weight
- 0.08 kg
- Colour
- Natural
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.000 cm
- Package 1 Width
- 5.500 cm
- Package 1 Length
- 9.500 cm
- Package 1 Weight
- 72.000 g
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 100
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 7.620 kg
- Unit Type of Package 3
- P06
- Number of Units in Package 3
- 400
- Package 3 Height
- 27.500 cm
- Package 3 Width
- 60.000 cm
- Package 3 Length
- 80.000 cm
- Package 3 Weight
- 37.000 kg
- Country of origin
- CN
- Warranty (in months)
- 18
- Material
- Metal
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481866776
- SAP 1200547081
- Code 82880097
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric miniature circuit breaker - C60H - 1 pole - 10 A - C curve A9N61508
Schneider Electric
Schneider Electric Easy UPS 1 Ph Line Interactive, 750VA, Tower, 230V, 6 IEC C13 outlets, AVR, Dry Contact, LCD, without Network Card support SMVS750CAI
Schneider Electric
Schneider Electric variable speed drive, Altivar Machine ATV320, 7.5kW, 380 to 500V, 3 phases, compact ATV320U75N4C
Schneider Electric
Schneider Electric TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 40 A - 24 V AC 50/60 Hz coil LC1DT40B7
Schneider Electric
In/O module DIN In/O EME213-IN
FFS06720313
Schneider Electric

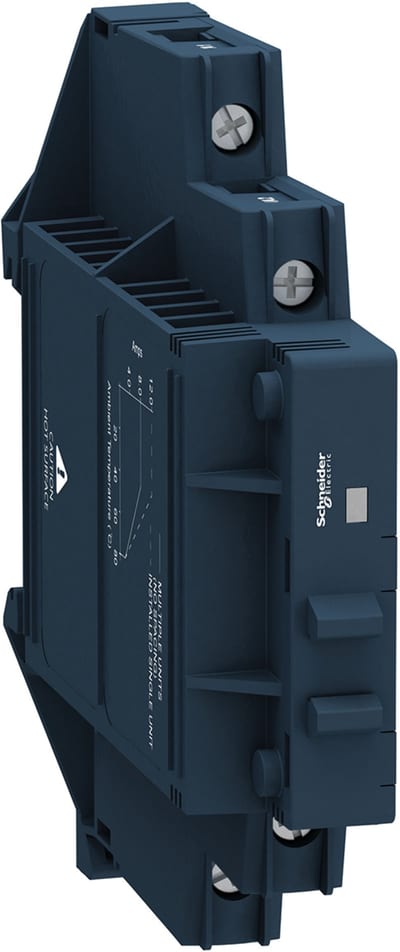

Schneider Electric Solid state modular relay, 12 A, zero voltage switching, input 4...32 V DC, output 24...280 V AC SSM1A112BD
Schneider Electric
Shield clamp 5/10MM/LGYE Side-mounted
LVS04661
Schneider Electric

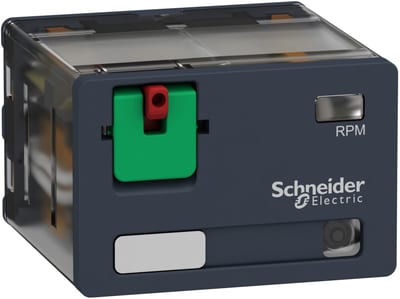

Schneider Electric Power plug-in relay, 15 A, 4 CO, with LED, 24 V AC RPM42B7
